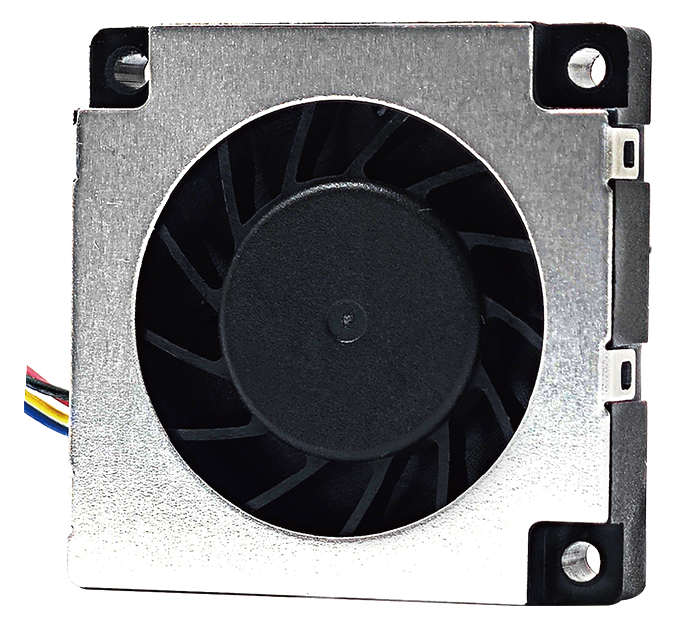

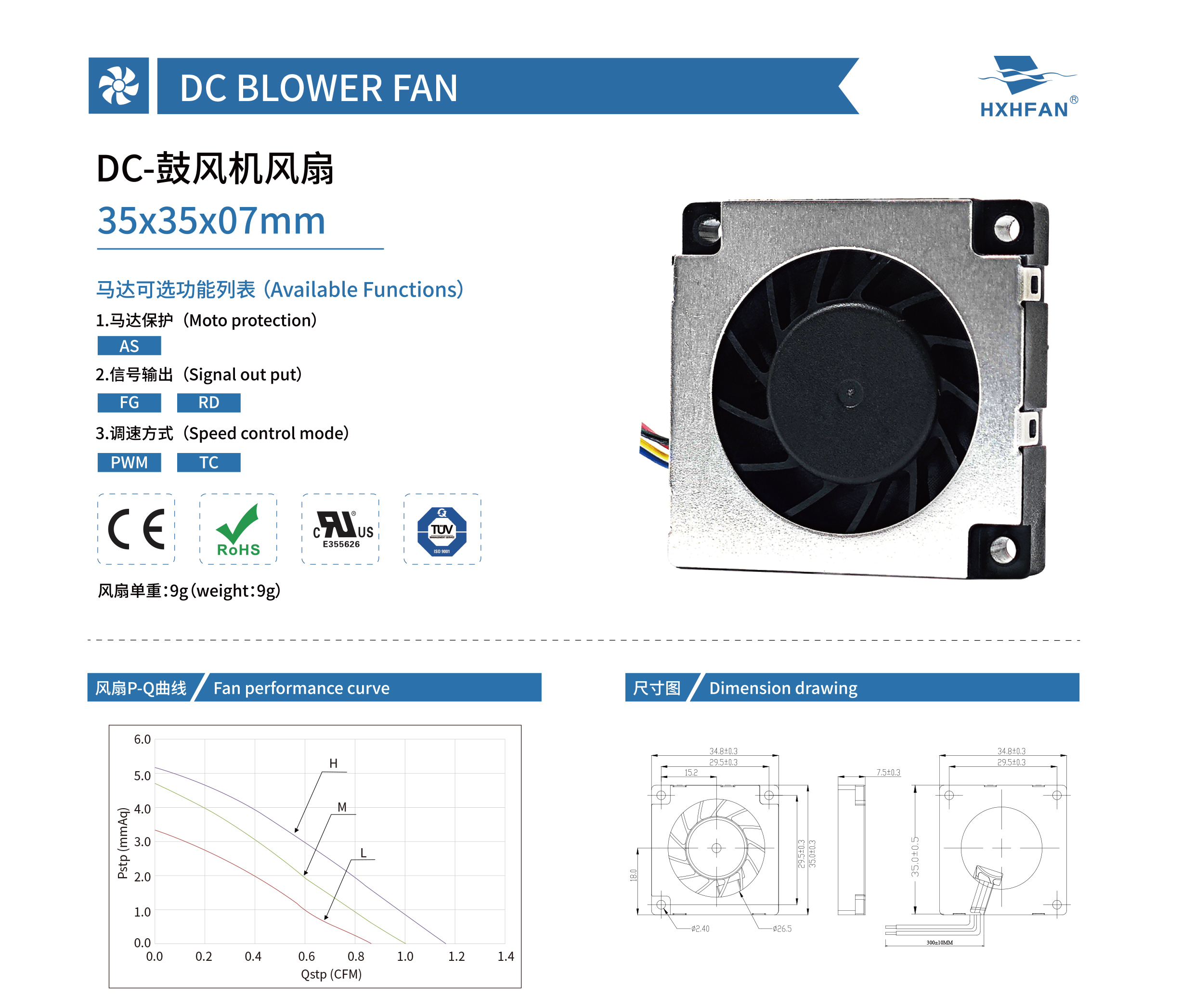

| 35x35x07mm | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBH3505HQ | Hydraulic | 5 | 4.0 | 0.20 | 1.00 | 7500 | 0.04 | 1.26 | 4.17 | 0.16 | 22.3 | |
| HBH3505MQ | 4.0 | 0.15 | 0.75 | 6500 | 0.03 | 1.12 | 3.28 | 0.13 | 18.7 | |||
| HBH3505LQ | 4.0 | 0.10 | 0.50 | 5500 | 0.02 | 0.87 | 2.60 | 0.10 | 15.6 | |||
| HBH3512HQ | Hydraulic | 12 | 6.0 | 0.13 | 1.56 | 7500 | 0.04 | 1.26 | 4.17 | 0.16 | 22.3 | |
| HBH3512MQ | 6.0 | 0.09 | 1.08 | 6500 | 0.03 | 1.12 | 3.28 | 0.13 | 18.7 | |||
| HBH3512LQ | 6.0 | 0.07 | 0.84 | 5500 | 0.02 | 0.87 | 2.60 | 0.10 | 15.6 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
