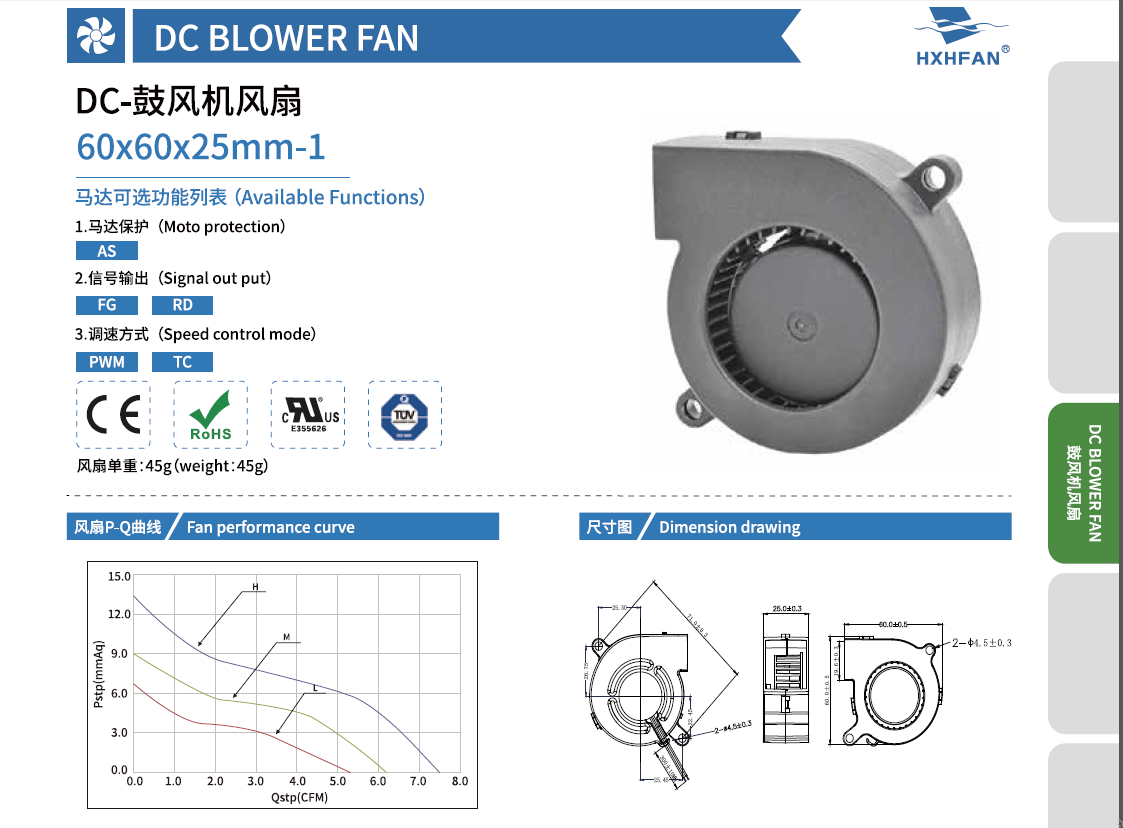

| 60×60×25mm-1 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBS0612HA-1 | Sleeve | 12 | 5.0 | 0.32 | 3.84 | 4500 | 0.21 | 7.56 | 13.40 | 0.53 | 41.3 | |
| HBS0612MA-1 | 5.0 | 0.24 | 2.88 | 3700 | 0.18 | 6.22 | 9.06 | 0.36 | 37.1 | |||
| HBS0612LA-1 | 5.0 | 0.18 | 2.16 | 3200 | 0.15 | 5.38 | 6.78 | 0.27 | 33.9 | |||
| HBB0612HA-1 | Ball | 5.0 | 0.32 | 3.84 | 4500 | 0.21 | 7.56 | 13.40 | 0.53 | 41.3 | ||
| HBB0612MA-1 | 5.0 | 0.24 | 2.88 | 3700 | 0.18 | 6.22 | 9.06 | 0.36 | 37.1 | |||
| HBB0612LA-1 | 5.0 | 0.18 | 2.16 | 3200 | 0.15 | 5.38 | 6.78 | 0.27 | 33.9 | |||
| HBS0624HA-1 | Sleeve | 24 | 12.0 | 0.20 | 4.80 | 4500 | 0.21 | 7.56 | 13.40 | 0.53 | 41.3 | |
| HBS0624MA-1 | 12.0 | 0.15 | 3.60 | 3700 | 0.18 | 6.22 | 9.06 | 0.36 | 37.1 | |||
| HBS0624LA-1 | 12.0 | 0.11 | 2.64 | 3200 | 0.15 | 5.38 | 6.78 | 0.27 | 33.9 | |||
| HBB0624HA-1 | Ball | 12.0 | 0.20 | 4.80 | 4500 | 0.21 | 7.56 | 13.40 | 0.53 | 41.3 | ||
| HBB0624MA-1 | 12.0 | 0.15 | 3.60 | 3700 | 0.18 | 6.22 | 9.06 | 0.36 | 37.1 | |||
| HBB0624LA-1 | 12.0 | 0.11 | 2.64 | 3200 | 0.15 | 5.38 | 6.78 | 0.27 | 33.9 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
