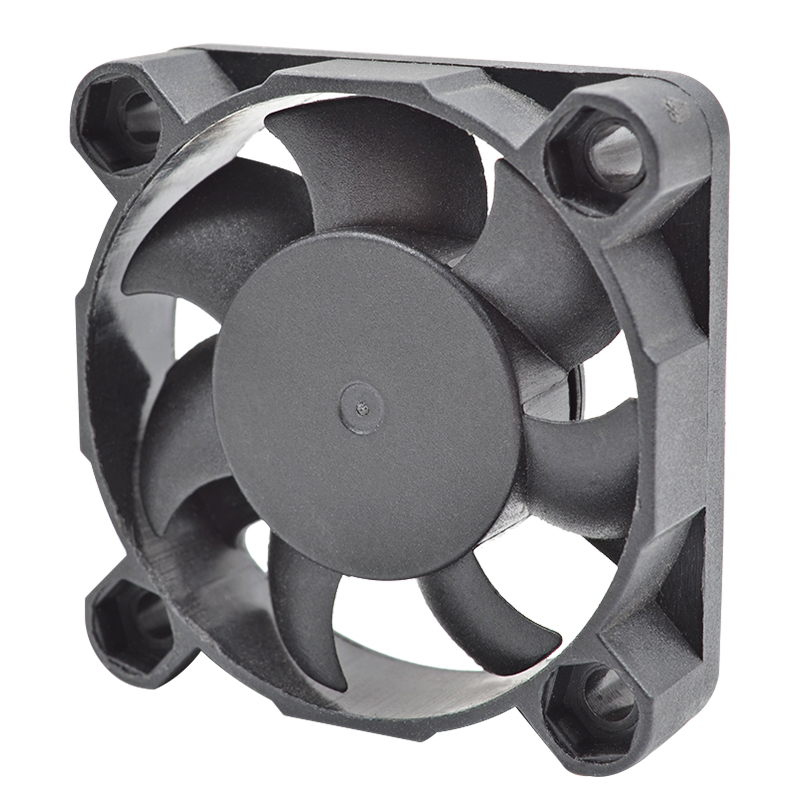

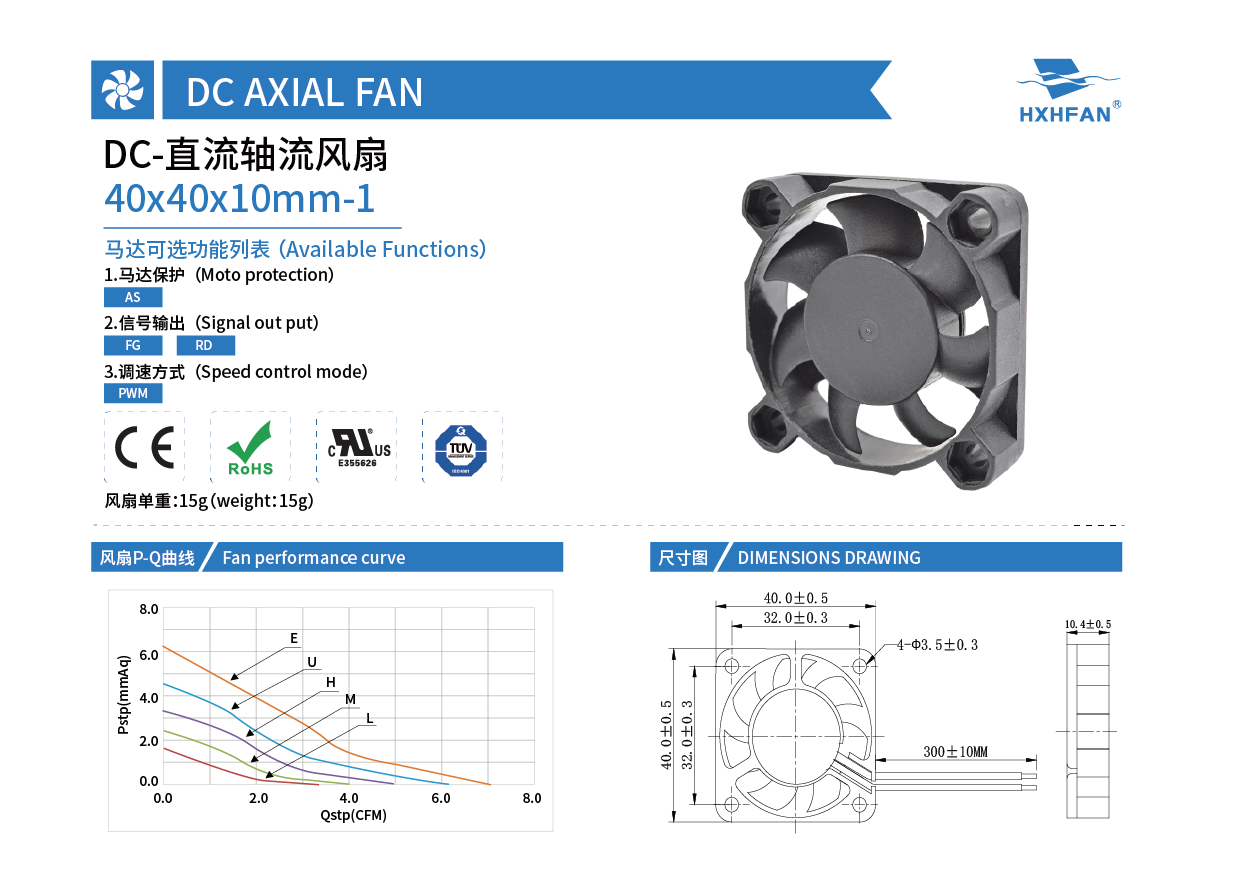

| 40×40×10mm-1 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDH0405UG-1 | Hydraulic | 5 | 4.0 | 0.22 | 1.10 | 7000 | 0.18 | 6.19 | 4.52 | 0.18 | 31.7 | |
| HDH0405HG-1 | 4.0 | 0.17 | 0.85 | 6000 | 0.14 | 4.97 | 3.29 | 0.13 | 27.4 | |||
| HDH0405MG-1 | 4.0 | 0.11 | 0.55 | 5000 | 0.11 | 4.06 | 2.41 | 0.09 | 23.1 | |||
| HDH0405LG-1 | 4.5 | 0.08 | 0.40 | 4000 | 0.10 | 3.49 | 1.63 | 0.06 | 19.8 | |||
| HDB0405UG-1 | Ball | 4.0 | 0.22 | 1.10 | 7000 | 0.18 | 6.19 | 4.52 | 0.18 | 31.7 | ||
| HDB0405HG-1 | 4.0 | 0.17 | 0.85 | 6000 | 0.14 | 4.97 | 3.29 | 0.13 | 27.4 | |||
| HDB0405MG-1 | 4.0 | 0.11 | 0.55 | 5000 | 0.11 | 4.06 | 2.41 | 0.09 | 23.1 | |||
| HDB0405LG-1 | 4.5 | 0.08 | 0.40 | 4000 | 0.10 | 3.49 | 1.63 | 0.06 | 19.8 | |||
| HDH0412EG-1 | Hydraulic | 12 | 7.0 | 0.15 | 1.80 | 8000 | 0.20 | 7.07 | 6.20 | 0.24 | 34.3 | |
| HDH0412UG-1 | 7.0 | 0.12 | 1.44 | 7000 | 0.18 | 6.19 | 4.52 | 0.18 | 31.7 | |||
| HDH0412HG-1 | 9.0 | 0.10 | 1.20 | 6000 | 0.14 | 4.97 | 3.29 | 0.13 | 27.4 | |||
| HDH0412MG-1 | 9.0 | 0.08 | 0.96 | 5000 | 0.11 | 4.06 | 2.41 | 0.09 | 23.1 | |||
| HDH0412LG-1 | 9.0 | 0.07 | 0.96 | 4000 | 0.10 | 3.49 | 1.63 | 0.06 | 19.8 | |||
| HDB0412EG-1 | Ball | 7.0 | 0.15 | 1.80 | 8000 | 0.20 | 7.07 | 6.20 | 0.24 | 34.3 | ||
| HDB0412UG-1 | 7.0 | 0.12 | 1.44 | 7000 | 0.18 | 6.19 | 4.52 | 0.18 | 31.7 | |||
| HDB0412HG-1 | 9.0 | 0.10 | 1.20 | 6000 | 0.14 | 4.97 | 3.29 | 0.13 | 27.4 | |||
| HDB0412MG-1 | 9.0 | 0.08 | 0.96 | 5000 | 0.11 | 4.06 | 2.41 | 0.09 | 23.1 | |||
| HDB0412LG-1 | 9.0 | 0.07 | 0.84 | 4000 | 0.10 | 3.49 | 1.63 | 0.06 | 19.8 | |||
| HDH0424EG-1 | Hydraulic | 24 | 12.0 | 0.07 | 1.68 | 8000 | 0.20 | 7.07 | 6.20 | 0.24 | 34.3 | |
| HDH0424UG-1 | 12.0 | 0.06 | 1.44 | 7000 | 0.18 | 6.19 | 4.52 | 0.18 | 31.7 | |||
| HDH0424HG-1 | 12.0 | 0.05 | 1.20 | 6000 | 0.14 | 4.97 | 3.29 | 0.13 | 27.4 | |||
| HDH0424MG-1 | 12.0 | 0.04 | 0.96 | 5000 | 0.11 | 4.06 | 2.41 | 0.09 | 23.1 | |||
| HDH0424LG-1 | 12.0 | 0.03 | 0.72 | 4000 | 0.10 | 3.49 | 1.63 | 0.06 | 19.8 | |||
| HDB0424EG-1 | Ball | 12.0 | 0.07 | 1.68 | 8000 | 0.20 | 7.07 | 6.20 | 0.24 | 34.3 | ||
| HDB0424UG-1 | 12.0 | 0.06 | 1.44 | 7000 | 0.18 | 6.19 | 4.52 | 0.18 | 31.7 | |||
| HDB0424HG-1 | 12.0 | 0.05 | 1.20 | 6000 | 0.14 | 4.49 | 3.29 | 0.13 | 27.4 | |||
| HDB0424MG-1 | 12.0 | 0.04 | 0.96 | 5000 | 0.11 | 4.06 | 2.41 | 0.09 | 23.1 | |||
| HDB0424LG-1 | 12.0 | 0.03 | 0.72 | 4000 | 0.10 | 3.49 | 1.63 | 0.06 | 19.8 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
