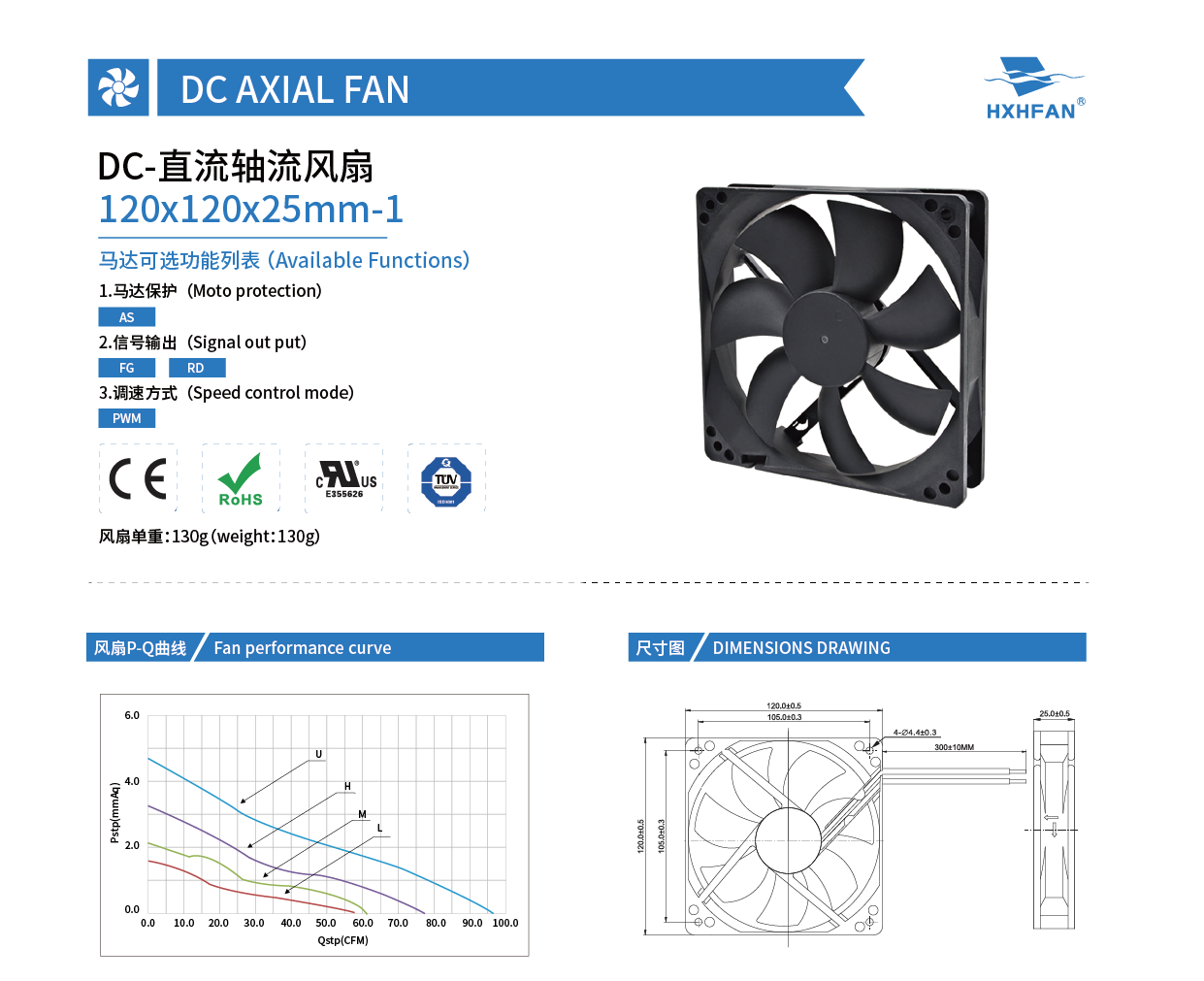

| 120×120×25MM-1 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDH1212HA-1 | -A | Hydraulic | 12 | 5.0 | 0.32 | 3.84 | 2300 | 2.19 | 77.30 | 3.25 | 0.13 | 39.0 |
| HDH1212MA-1 | 5.0 | 0.24 | 2.88 | 2000 | 1.73 | 61.09 | 2.14 | 0.08 | 35.5 | |||
| HDH1212LA-1 | 5.0 | 0.18 | 2.16 | 1700 | 1.62 | 57.31 | 1.60 | 0.06 | 32.7 | |||
| HDB1212UA-1 | -A | Ball | 5.0 | 0.42 | 5.04 | 2800 | 2.73 | 96.51 | 4.70 | 0.19 | 44.4 | |
| HDB1212HA-1 | -A | 5.0 | 0.32 | 3.84 | 2300 | 2.19 | 77.30 | 3.25 | 0.13 | 39.0 | ||
| HDB1212MA-1 | 5.0 | 0.24 | 2.88 | 2000 | 1.73 | 61.09 | 2.14 | 0.08 | 35.5 | |||
| HDB1212LA-1 | 5.0 | 0.18 | 2.16 | 1700 | 1.62 | 57.31 | 1.60 | 0.06 | 32.7 | |||
| HDH1224HA-1 | Hydraulic | 24 | 12.0 | 0.20 | 4.80 | 2300 | 2.19 | 77.30 | 3.25 | 0.13 | 39.0 | |
| HDH1224MA-1 | 12.0 | 0.15 | 3.60 | 2000 | 1.73 | 61.09 | 2.14 | 0.08 | 35.5 | |||
| HDH1224LA-1 | 12.0 | 0.12 | 2.88 | 1700 | 1.62 | 57.31 | 1.60 | 0.06 | 32.7 | |||
| HDB1224UA-1 | -A | Ball | 12.0 | 0.30 | 7.20 | 2800 | 2.73 | 96.51 | 4.70 | 0.19 | 44.4 | |
| HDB1224HA-1 | 12.0 | 0.20 | 4.80 | 2300 | 2.19 | 77.30 | 3.25 | 0.13 | 39.0 | |||
| HDB1224MA-1 | 12.0 | 0.15 | 3.60 | 2000 | 1.73 | 61.09 | 2.14 | 0.08 | 35.5 | |||
| HDB1224LA-1 | 12.0 | 0.12 | 2.88 | 1700 | 1.62 | 57.31 | 1.60 | 0.06 | 32.7 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
