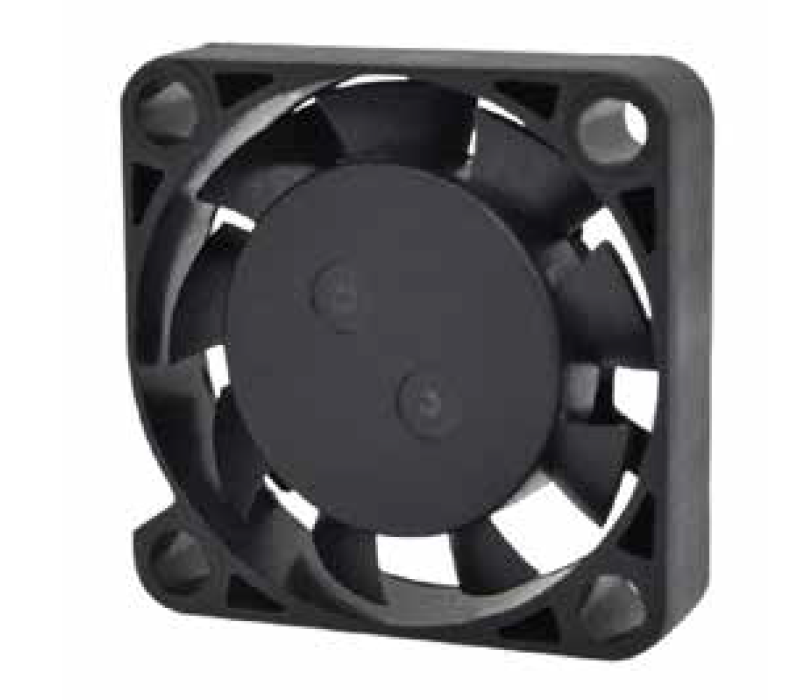

| 25×25×07MM-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDH2505HQ-2 | Hydraulic | 5 | 4.5 | 0.15 | 0.75 | 13000 | 0.05 | 1.79 | 6.44 | 0.25 | 34.8 | |
| HDH2505MQ-2 | 4.5 | 0.10 | 0.50 | 10000 | 0.04 | 1.38 | 4.02 | 0.16 | 26.4 | |||
| HDH2505LQ-2 | 4.5 | 0.07 | 0.35 | 7000 | 0.03 | 1.23 | 2.85 | 0.11 | 19.2 | |||
| HDH2512HQ-2 | 12 | 9.5 | 0.12 | 1.44 | 13000 | 0.05 | 1.79 | 6.44 | 0.25 | 34.8 | ||
| HDH2512MQ-2 | 9.5 | 0.08 | 0.96 | 10000 | 0.04 | 1.38 | 4.02 | 0.16 | 26.4 | |||
| HDH2512LQ-2 | 9.5 | 0.06 | 0.72 | 7000 | 0.03 | 1.23 | 2.85 | 0.11 | 19.2 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
