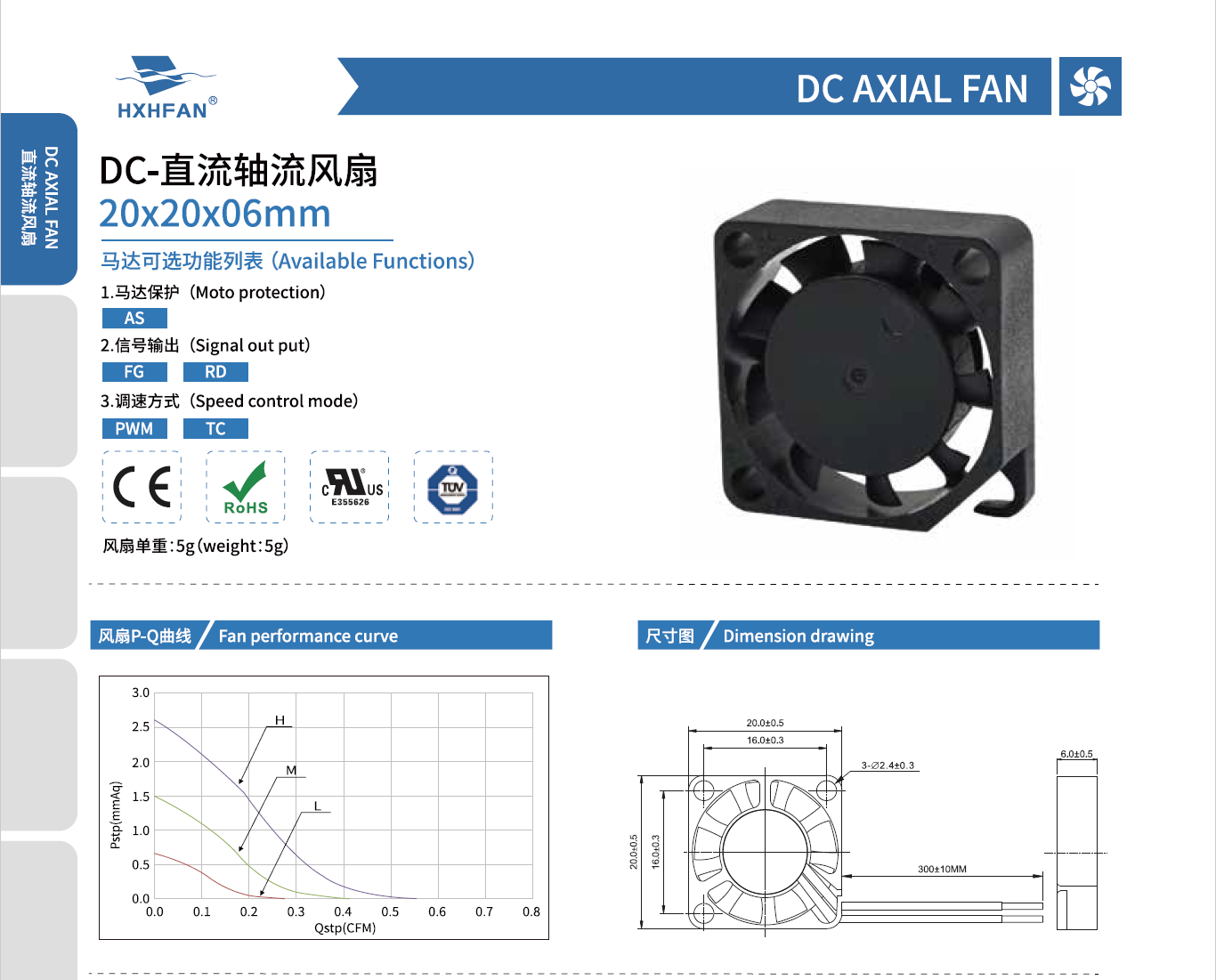

| 20*20*06MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDH0205HK | -A | Hydraulic | 5 | 4.0 | 0.22 | 1.10 | 12000 | 0.02 | 0.55 | 2.61 | 0.10 | 26.8 |
| HDH0205MK | -A | 4.0 | 0.17 | 0.85 | 9000 | 0.01 | 0.41 | 1.47 | 0.06 | 20.6 | ||
| HDH0205LK | -A | 4.0 | 0.12 | 0.60 | 6000 | 0.01 | 0.27 | 0.65 | 0.03 | 11.8 | ||
| HDH0212HK | -A | Hydraulic | 12 | 6.0 | 0.11 | 1.32 | 12000 | 0.02 | 0.55 | 2.61 | 0.10 | 26.8 |
| HDH0212MK | -A | 6.0 | 0.10 | 1.20 | 9000 | 0.01 | 0.41 | 1.47 | 0.06 | 20.6 | ||
| HDH0212LK | -A | 6.0 | 0.08 | 0.96 | 6000 | 0.01 | 0.27 | 0.65 | 0.03 | 11.8 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
