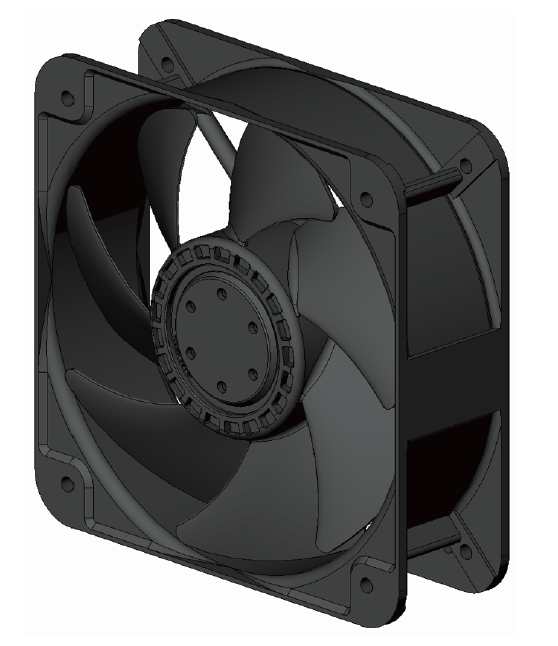

Product introduction:
| Size: | 200*200*60mm-2 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 12V 24V 48V |
| Bearing structure: | two Ball bearing |
| Product life: | 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

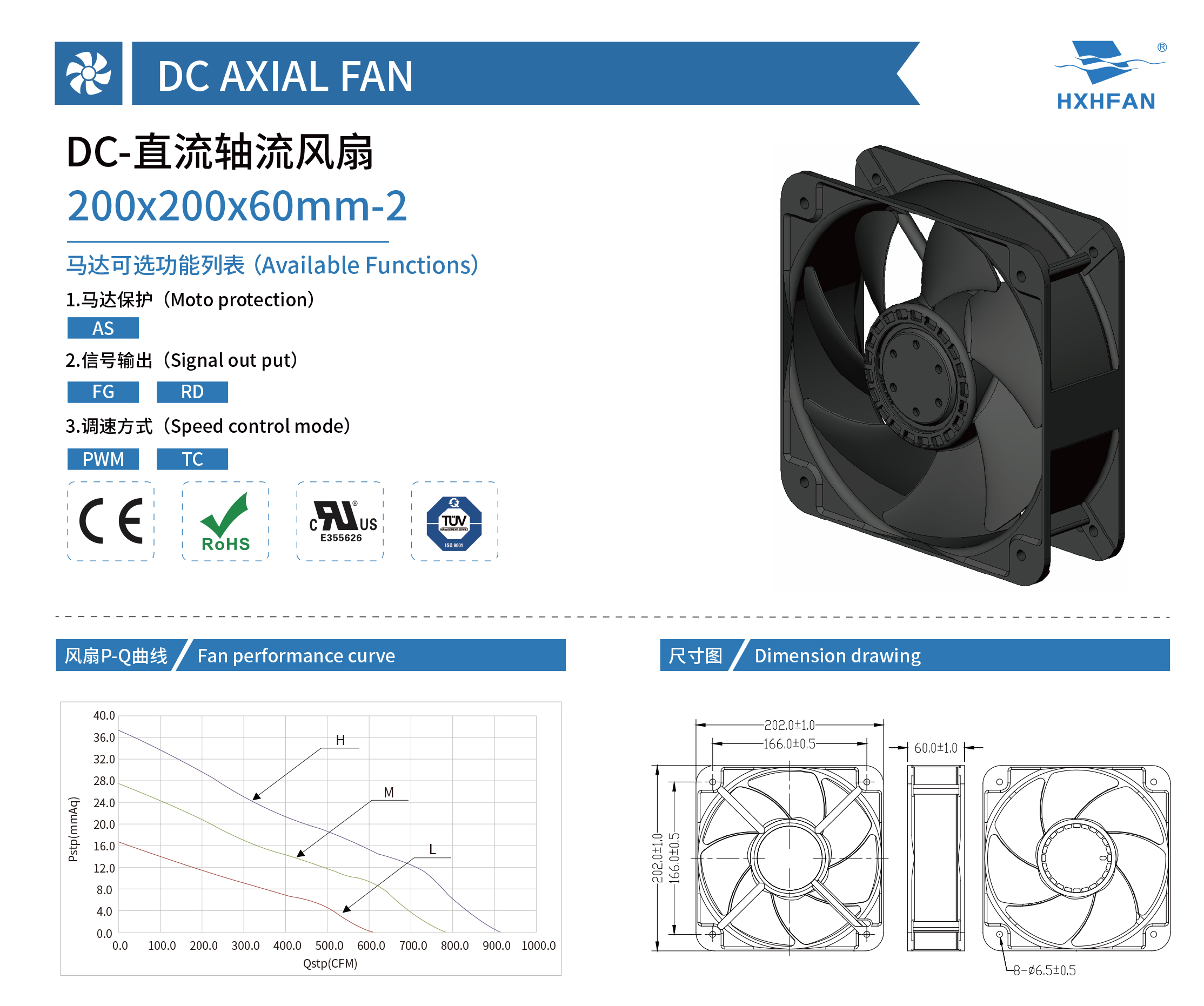

| 200×200×60MM-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB20024HW-2 | -A | Ball | 24 | 18.0 | 6.00 | 144.00 | 5000 | 25.63 | 905.60 | 36.20 | 1.43 | 73.3 |
| HDB20024MW-2 | -A | Ball | 18.0 | 3.80 | 91.20 | 4500 | 22.05 | 779.10 | 27.40 | 1.08 | 69.9 | |
| HDB20024LW-2 | -A | Ball | 18.0 | 1.80 | 43.20 | 3500 | 17.15 | 606.00 | 16.60 | 0.65 | 64.5 | |
| HDB20048HW-2 | -A | Ball | 48 | 24.0 | 3.00 | 144.00 | 5000 | 25.63 | 905.60 | 36.20 | 1.43 | 73.3 |
| HDB20048MW-2 | -A | Ball | 24.0 | 1.90 | 91.20 | 4500 | 22.05 | 779.10 | 27.40 | 1.08 | 69.9 | |
| HDB20048LW-2 | -A | Ball | 24.0 | 0.90 | 43.20 | 3500 | 17.15 | 606.00 | 16.60 | 0.65 | 64.5 | |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
