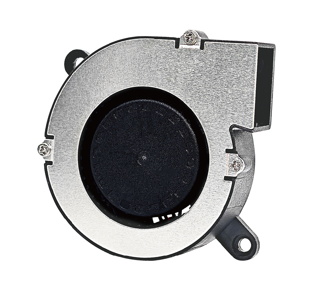

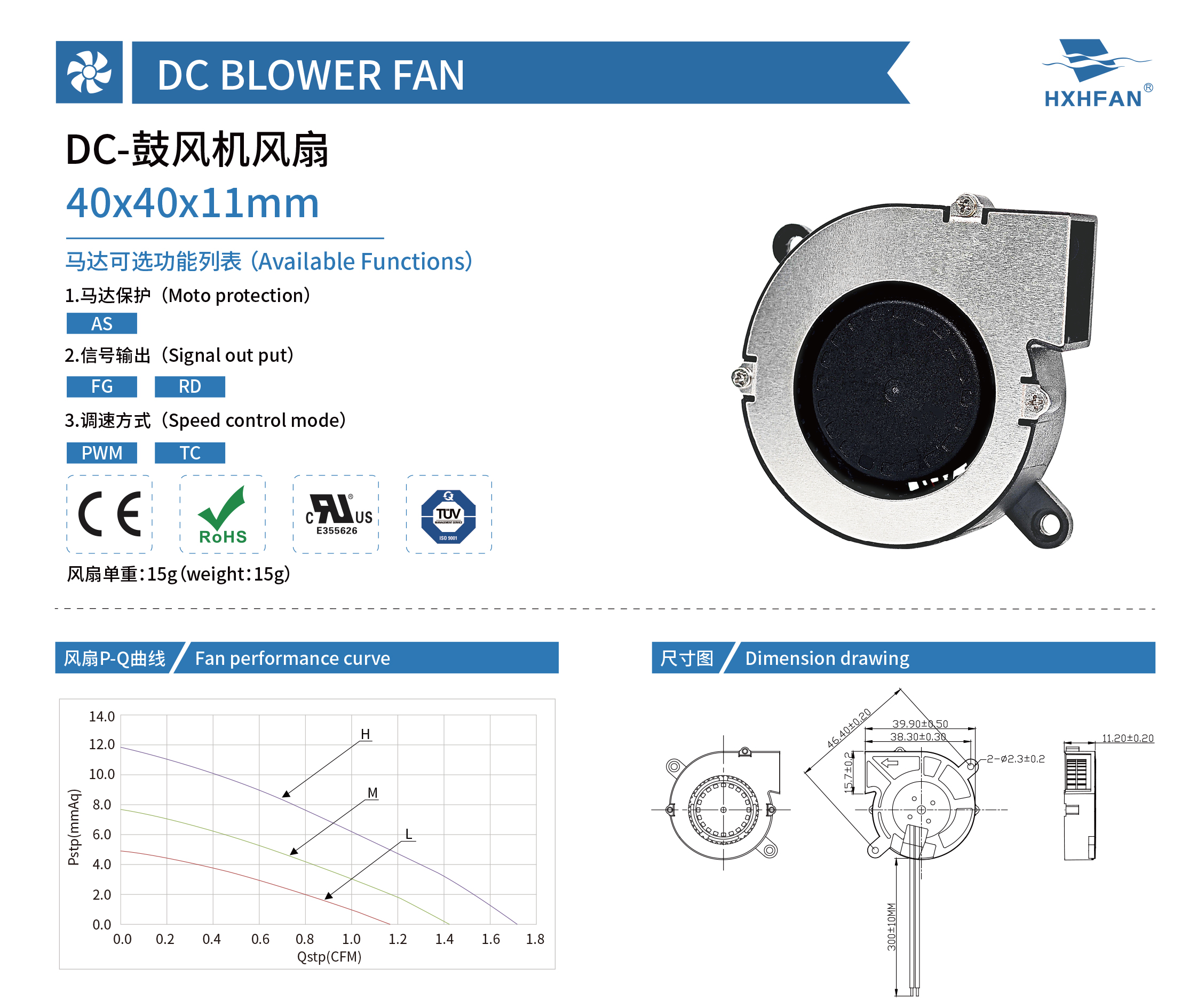

| 40×40×11MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBH0405HT | Hydraulic | 5 | 4.0 | 0.17 | 0.85 | 6800 | 0.05 | 1.71 | 11.80 | 0.46 | 36.3 | |
| HBH0405MT | 4.0 | 0.11 | 0.55 | 5800 | 0.04 | 1.42 | 7.64 | 0.30 | 31.1 | |||
| HBH0405LT | 4.0 | 0.07 | 0.35 | 4800 | 0.03 | 1.17 | 4.89 | 0.19 | 24.4 | |||
| HBB0405HT | Ball | 4.0 | 0.17 | 0.85 | 6800 | 0.05 | 1.71 | 11.80 | 0.46 | 36.3 | ||
| HBB0405MT | 4.0 | 0.11 | 0.55 | 5800 | 0.04 | 1.42 | 7.64 | 0.30 | 31.1 | |||
| HBB0405LT | 4.0 | 0.07 | 0.35 | 4800 | 0.03 | 1.17 | 4.89 | 0.19 | 24.4 | |||
| HBH0412HT | Hydraulic | 12 | 9.0 | 0.08 | 0.96 | 6800 | 0.05 | 1.71 | 11.80 | 0.46 | 36.3 | |
| HBH0412MT | 9.0 | 0.06 | 0.72 | 5800 | 0.04 | 1.42 | 7.64 | 0.30 | 31.1 | |||
| HBH0412LT | 9.0 | 0.05 | 0.60 | 4800 | 0.03 | 1.17 | 4.89 | 0.19 | 24.4 | |||
| HBB0412HT | Ball | 9.0 | 0.08 | 0.96 | 6800 | 0.05 | 1.71 | 11.80 | 0.46 | 36.3 | ||
| HBB0412MT | 9.0 | 0.06 | 0.72 | 5800 | 0.04 | 1.42 | 7.64 | 0.30 | 31.1 | |||
| HBB0412LT | 9.0 | 0.05 | 0.60 | 4800 | 0.03 | 1.17 | 4.89 | 0.19 | 24.4 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
