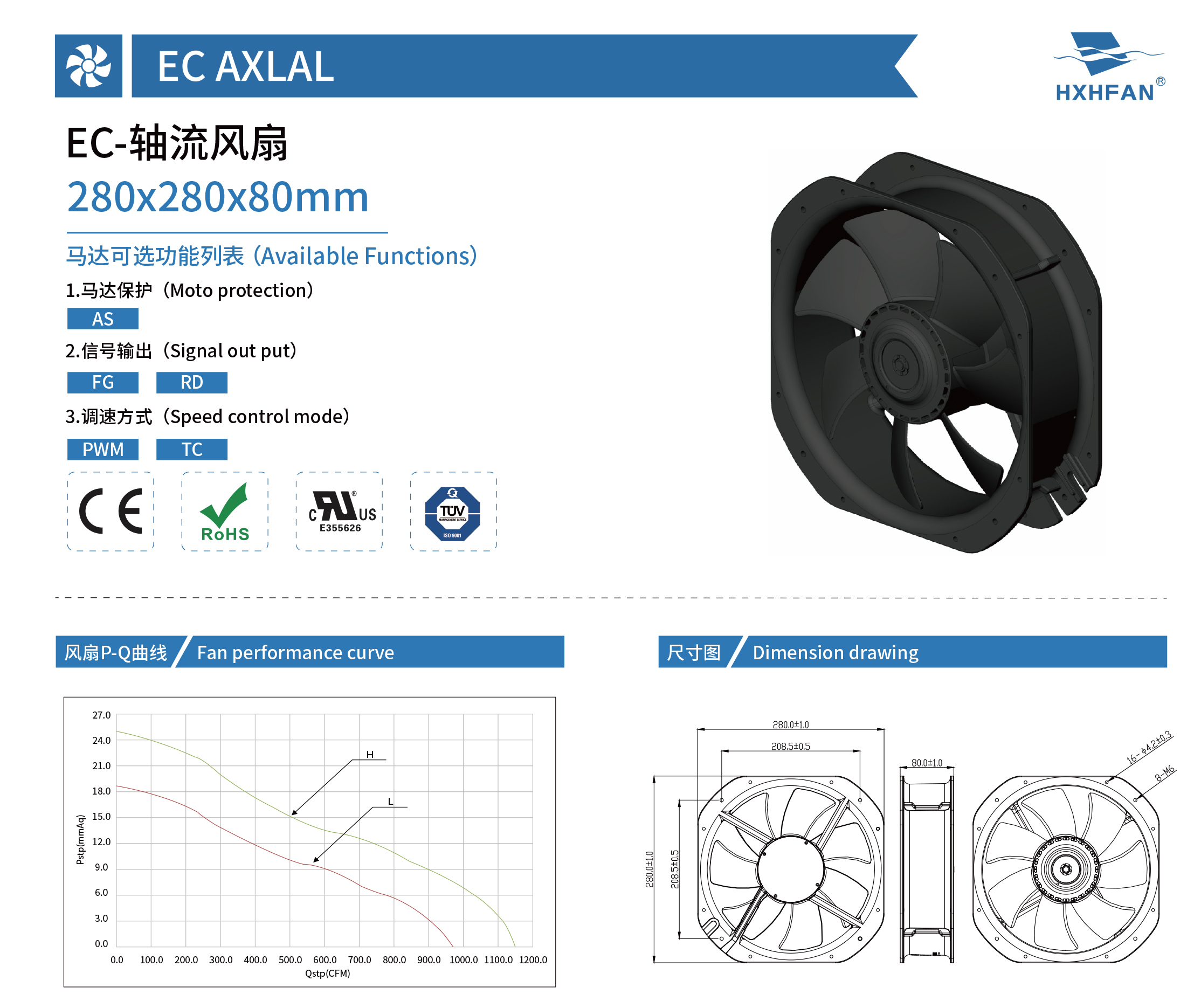

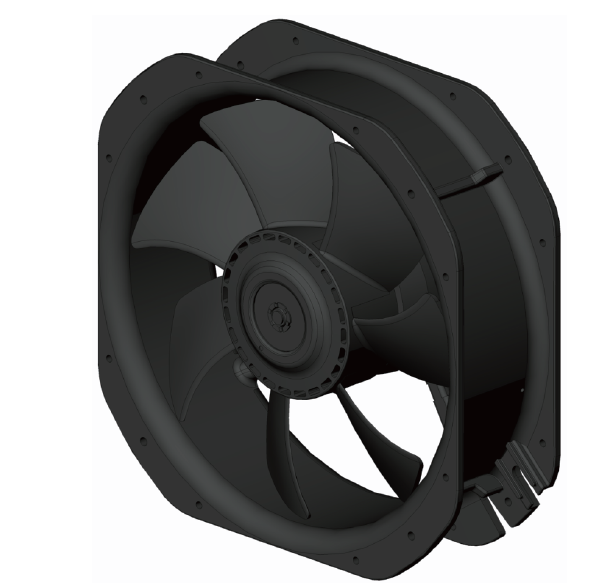

| 280×280×80MM | ||||||||||||
| Model | Bearing | Rated Voltage | Voltage Range | Frequency | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part No. | Function | System | VAC | VAC | HZ | W | RPM | m3/min | CFM | mmH2O | INH2O | dBA |
| HEB280230H80 | -A | Ball | 110-230 | 90-260 | 50/60 | 144.70 | 3200 | 32.57 | 1151.00 | 24.90 | 0.98 | 68.5 |
| HEB280230L80 | -A | 90-260 | 50/60 | 86.90 | 2700 | 27.48 | 971.20 | 18.70 | 0.74 | 65.0 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
