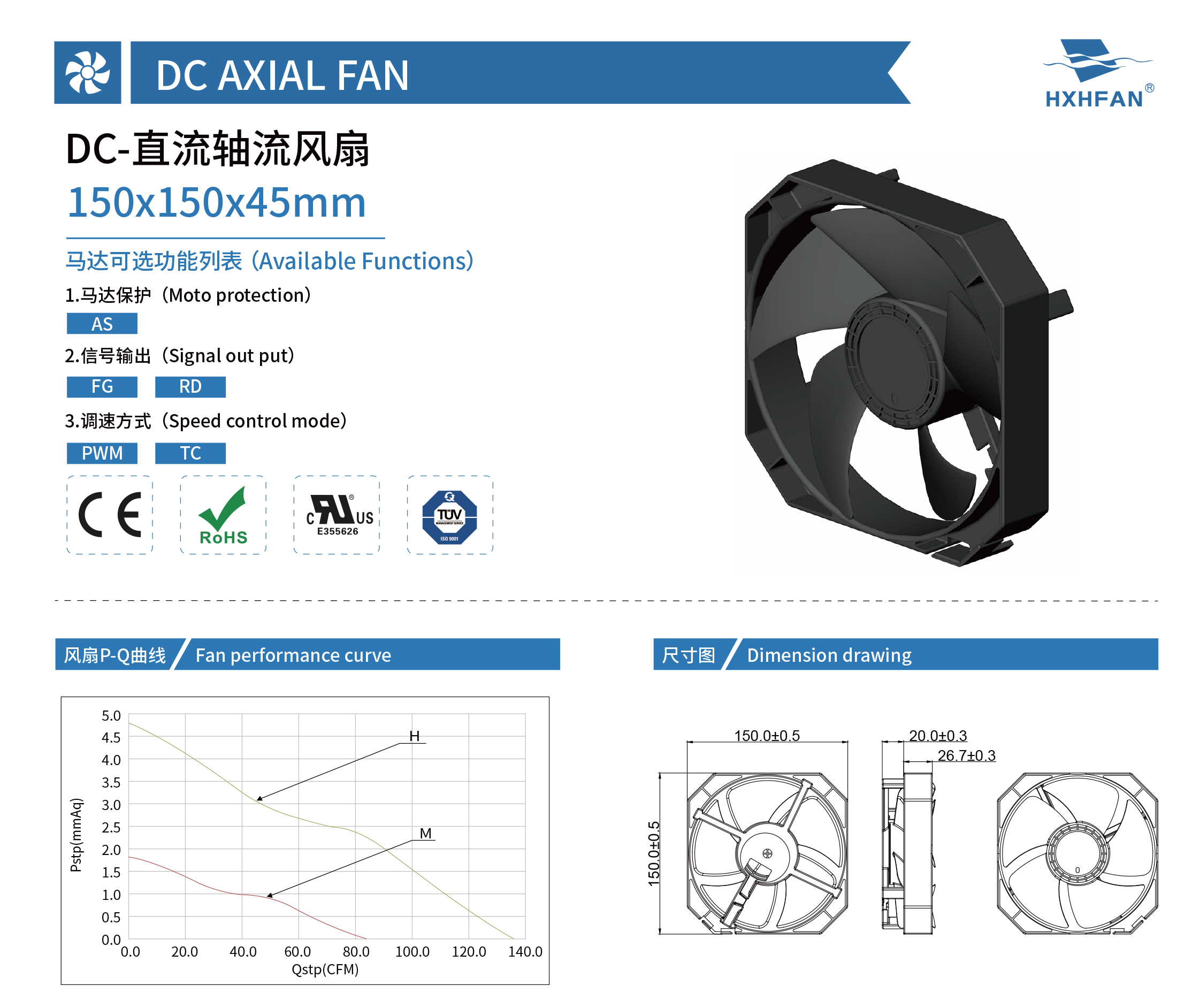

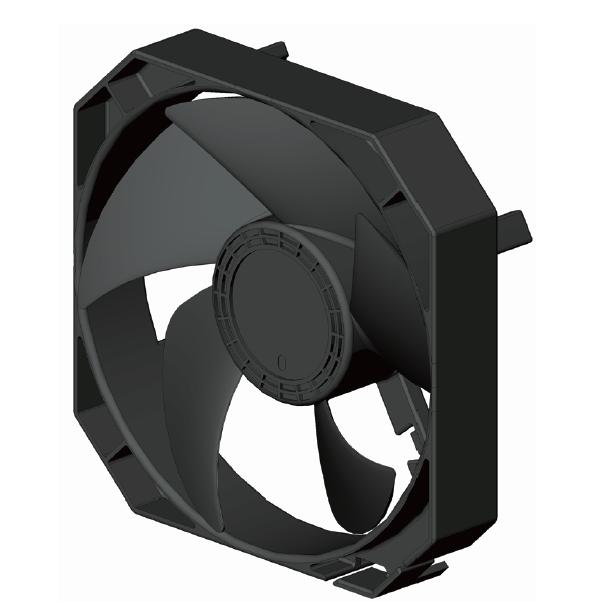

| 150×150×45MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB15012H45 | -A | Ball | 12 | 7.0 | 0.32 | 3.84 | 2000 | 3.83 | 135.40 | 4.80 | 0.19 | 34.9 |
| HDB15012M45 | -A | 7.0 | 0.07 | 0.84 | 1200 | 2.36 | 83.50 | 1.80 | 0.07 | 23.8 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
