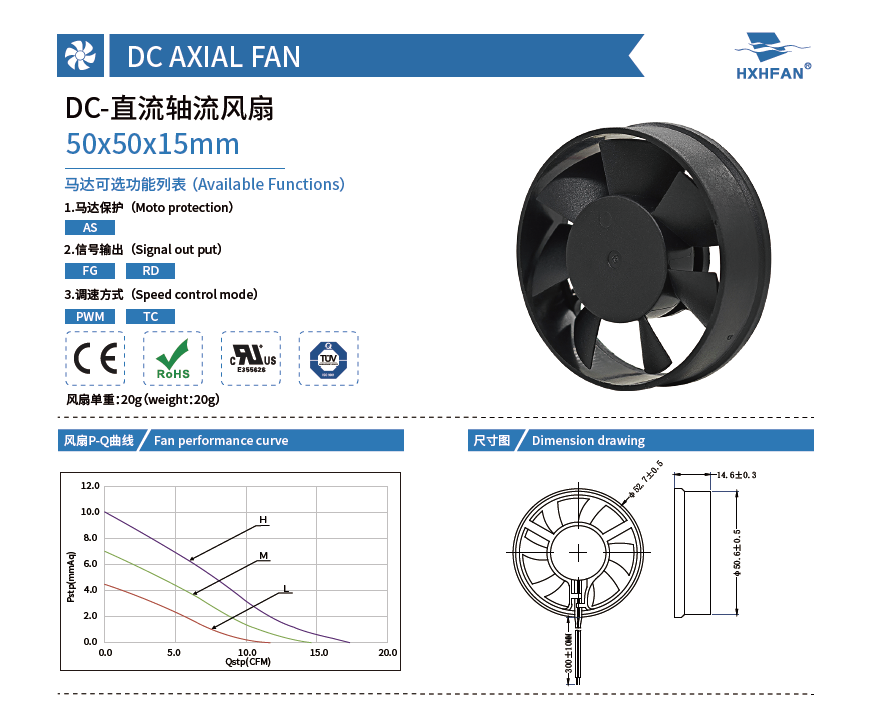

Product introduction:
| Size: | 50*50*15mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Hydraulic bearing or two ball |
| Product life: | 40,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 50×50×15MM圆框 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDH0505HD | Hydraulic | 5 | 4.0 | 0.35 | 1.75 | 9000 | 0.50 | 17.59 | 10.12 | 0.40 | 47.9 | |
| HDH0505MD | 4.0 | 0.28 | 1.40 | 7500 | 0.41 | 14.66 | 7.03 | 0.28 | 44.0 | |||
| HDH0505LD | 4.5 | 0.18 | 0.90 | 6000 | 0.33 | 11.73 | 4.50 | 0.18 | 39.2 | |||
| HDB0505HD | Ball | 4.0 | 0.35 | 1.75 | 9000 | 0.50 | 17.59 | 10.12 | 0.40 | 47.9 | ||
| HDB0505MD | 4.0 | 0.28 | 1.40 | 7500 | 0.41 | 14.66 | 7.03 | 0.28 | 44.0 | |||
| HDB0505LD | 4.5 | 0.18 | 0.90 | 6000 | 0.33 | 11.73 | 4.50 | 0.18 | 39.2 | |||
| HDH0512HD | Hydraulic | 12 | 9.0 | 0.22 | 2.64 | 9000 | 0.50 | 17.59 | 10.12 | 0.40 | 47.9 | |
| HDH0512MD | 9.0 | 0.18 | 2.16 | 7500 | 0.41 | 14.66 | 7.03 | 0.28 | 44.0 | |||
| HDH0512LD | 9.0 | 0.13 | 1.56 | 6000 | 0.33 | 11.73 | 4.50 | 0.18 | 39.2 | |||

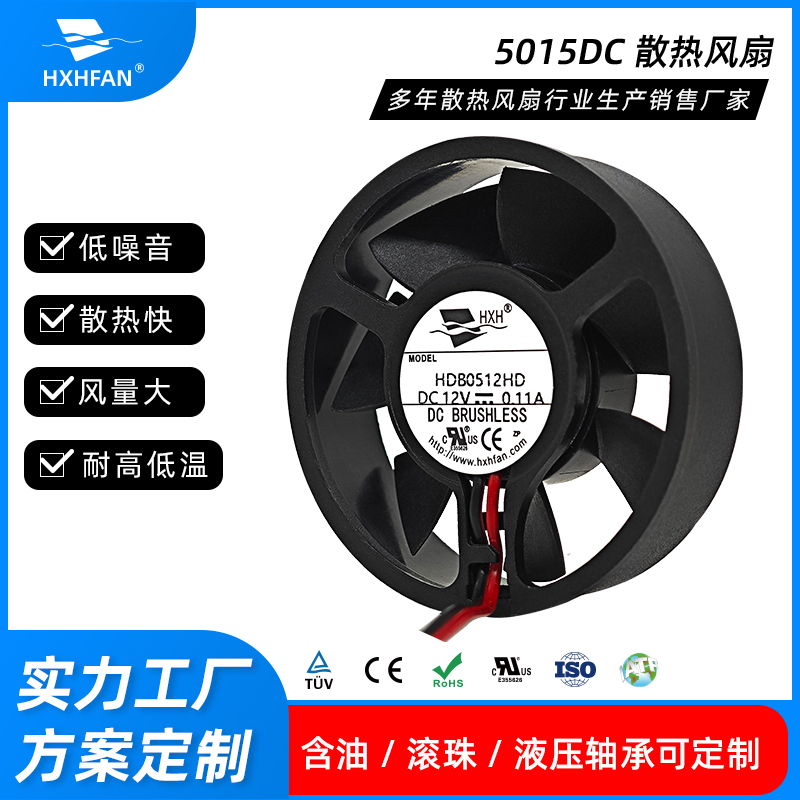

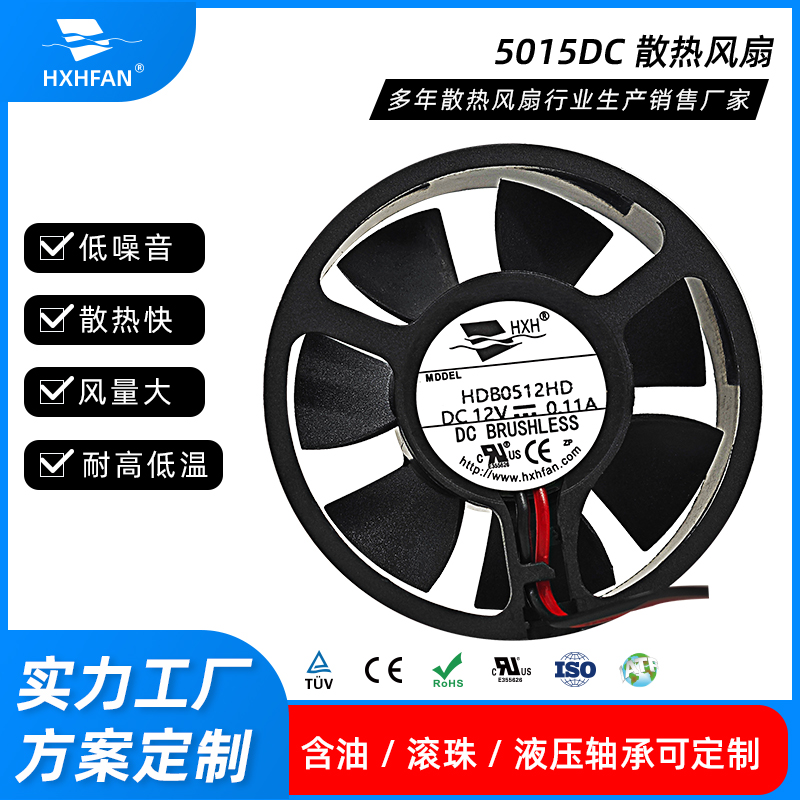

| HDB0512HD | Ball | 9.0 | 0.22 | 2.64 | 9000 | 0.50 | 17.59 | 10.12 | 0.40 | 47.9 | ||
| HDB0512MD | 9.0 | 0.18 | 2.16 | 7500 | 0.41 | 14.66 | 7.03 | 0.28 | 44.0 | |||
| HDB0512LD | 9.0 | 0.13 | 1.56 | 6000 | 0.33 | 11.73 | 4.50 | 0.18 | 39.2 | |||
| HDH0524HD | Hydraulic | 24 | 12.0 | 0.20 | 4.80 | 9000 | 0.50 | 17.59 | 10.12 | 0.40 | 47.9 | |
| HDH0524MD | 12.0 | 0.16 | 3.84 | 7500 | 0.41 | 14.66 | 7.03 | 0.28 | 44.0 | |||
| HDH0524LD | 12.0 | 0.12 | 2.88 | 6000 | 0.33 | 11.73 | 4.50 | 0.18 | 39.2 | |||
| HDB0524HD | Ball | 12.0 | 0.20 | 4.80 | 9000 | 0.50 | 17.59 | 10.12 | 0.40 | 47.9 | ||
| HDB0524MD | 12.0 | 0.16 | 3.84 | 7500 | 0.41 | 14.66 | 7.03 | 0.28 | 44.0 | |||
| HDB0524LD | 12.0 | 0.12 | 2.88 | 6000 | 0.33 | 11.73 | 4.50 | 0.18 | 39.2 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
