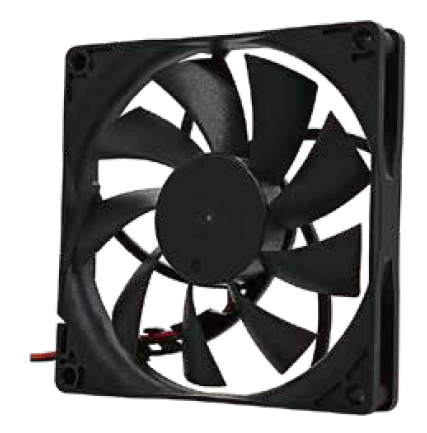

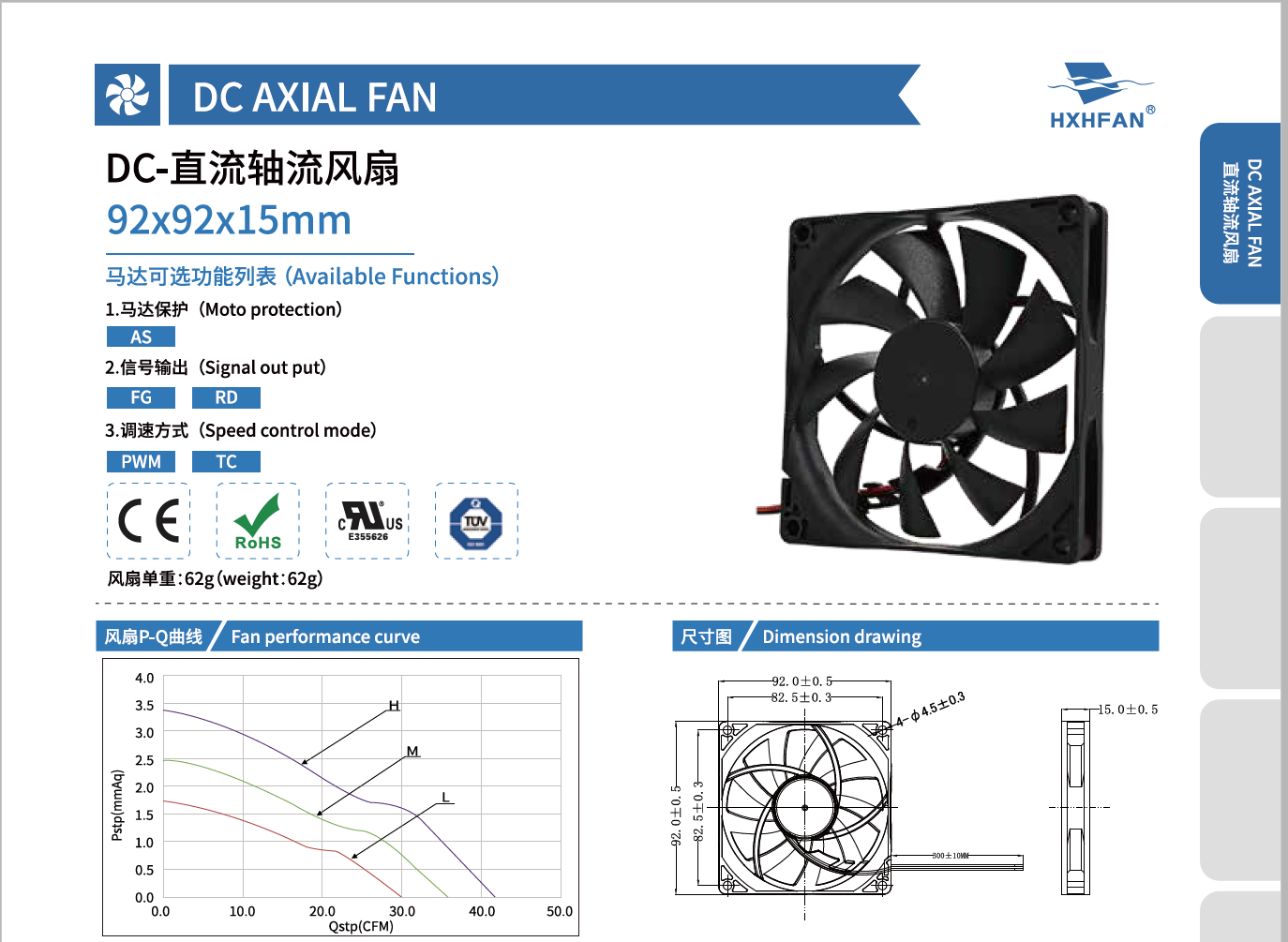

| 92×92×15MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDS9212HD | Sleeve | 12 | 5.0 | 0.35 | 4.20 | 3500 | 1.18 | 41.83 | 3.36 | 0.13 | 41.8 | |
| HDS9212MD | 5.0 | 0.30 | 3.60 | 3000 | 1.01 | 35.86 | 2.47 | 0.10 | 37.7 | |||
| HDS9212LD | 5.0 | 0.25 | 3.00 | 2500 | 0.85 | 30.01 | 1.73 | 0.07 | 32.5 | |||
| HDB9212HD | Ball | 5.0 | 0.35 | 4.20 | 3500 | 1.18 | 41.83 | 3.36 | 0.13 | 41.8 | ||
| HDB9212MD | 5.0 | 0.30 | 3.60 | 3000 | 1.01 | 35.86 | 2.47 | 0.10 | 37.7 | |||
| HDB9212LD | 5.0 | 0.25 | 3.00 | 2500 | 0.85 | 30.01 | 1.73 | 0.07 | 32.5 | |||
| HDS9224HD | Sleeve | 24 | 12.0 | 0.18 | 4.32 | 3500 | 1.18 | 41.83 | 3.36 | 0.13 | 41.8 | |
| HDS9224MD | 12.0 | 0.12 | 2.88 | 3000 | 1.01 | 35.86 | 2.47 | 0.10 | 37.7 | |||
| HDS9224LD | 12.0 | 0.10 | 2.40 | 2500 | 0.85 | 30.01 | 1.73 | 0.07 | 32.5 | |||
| HDB9224HD | Ball | 12.0 | 0.18 | 4.32 | 3500 | 1.18 | 41.83 | 3.36 | 0.13 | 41.8 | ||
| HDB9224MD | 12.0 | 0.12 | 2.88 | 3000 | 1.01 | 35.86 | 2.47 | 0.10 | 37.7 | |||
| HDB9224LD | 12.0 | 0.10 | 2.40 | 2500 | 0.85 | 30.01 | 1.73 | 0.07 | 32.5 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
