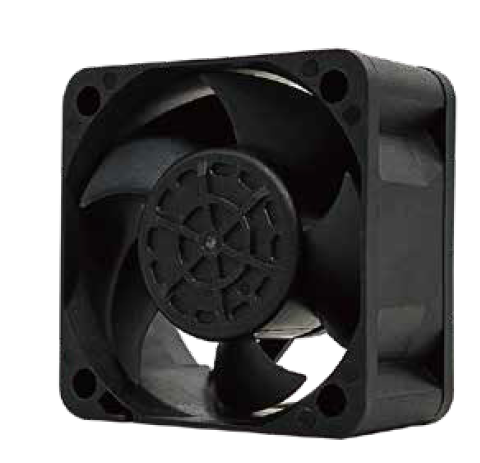

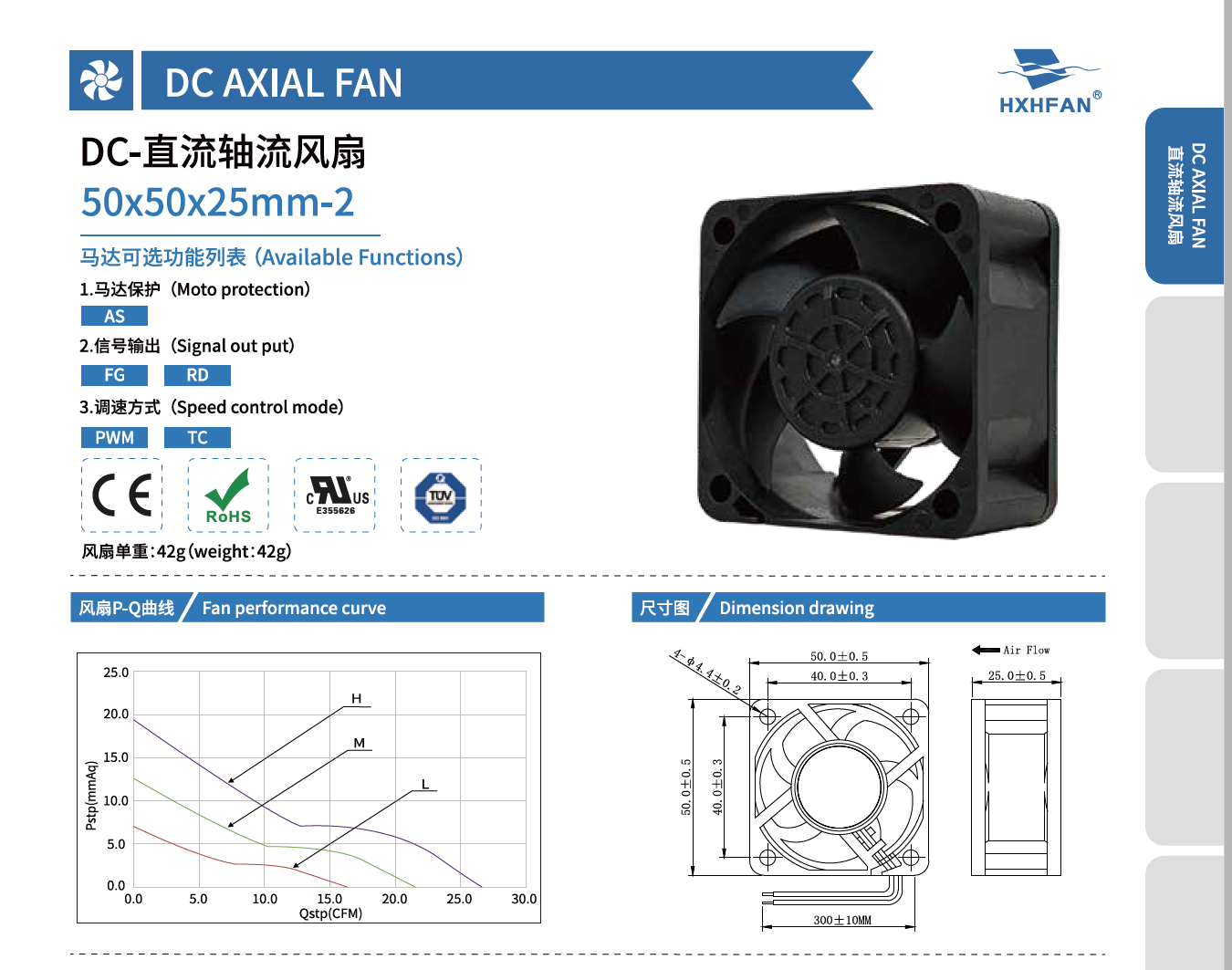

| 50×50×25-2MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDS0512HA-2 | Sleeve | 12 | 7.0 | 0.22 | 2.64 | 10000 | 0.75 | 26.67 | 19.27 | 0.76 | 41.8 | |
| HDS0512MA-2 | 7.0 | 0.16 | 1.92 | 8000 | 0.61 | 21.55 | 12.58 | 0.50 | 36.9 | |||
| HDS0512LA-2 | 7.0 | 0.12 | 1.44 | 6000 | 0.45 | 16.00 | 6.94 | 0.27 | 30.7 | |||
| HDB0512HA-2 | Ball | 7.0 | 0.22 | 2.64 | 10000 | 0.75 | 26.67 | 19.27 | 0.76 | 41.8 | ||
| HDB0512MA-2 | 7.0 | 0.16 | 1.92 | 8000 | 0.61 | 21.55 | 12.58 | 0.50 | 36.9 | |||
| HDB0512LA-2 | 7.0 | 0.12 | 1.44 | 6000 | 0.45 | 16.00 | 6.94 | 0.27 | 30.7 | |||
| HDS0524HA-2 | Sleeve | 24 | 12.0 | 0.17 | 4.08 | 10000 | 0.75 | 26.67 | 19.27 | 0.76 | 41.8 | |
| HDS0524MA-2 | 12.0 | 0.11 | 2.64 | 8000 | 0.61 | 21.55 | 12.58 | 0.50 | 36.9 | |||
| HDS0524LA-2 | 12.0 | 0.09 | 2.16 | 6000 | 0.45 | 16.00 | 6.94 | 0.27 | 30.7 | |||
| HDB0524HA-2 | Ball | 12.0 | 0.17 | 4.08 | 10000 | 0.75 | 26.67 | 19.27 | 0.76 | 41.8 | ||
| HDB0524MA-2 | 12.0 | 0.11 | 2.64 | 8000 | 0.61 | 21.55 | 12.58 | 0.50 | 36.9 | |||
| HDB0524LA-2 | 12.0 | 0.09 | 2.16 | 6000 | 0.45 | 16.00 | 6.94 | 0.27 | 30.7 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
