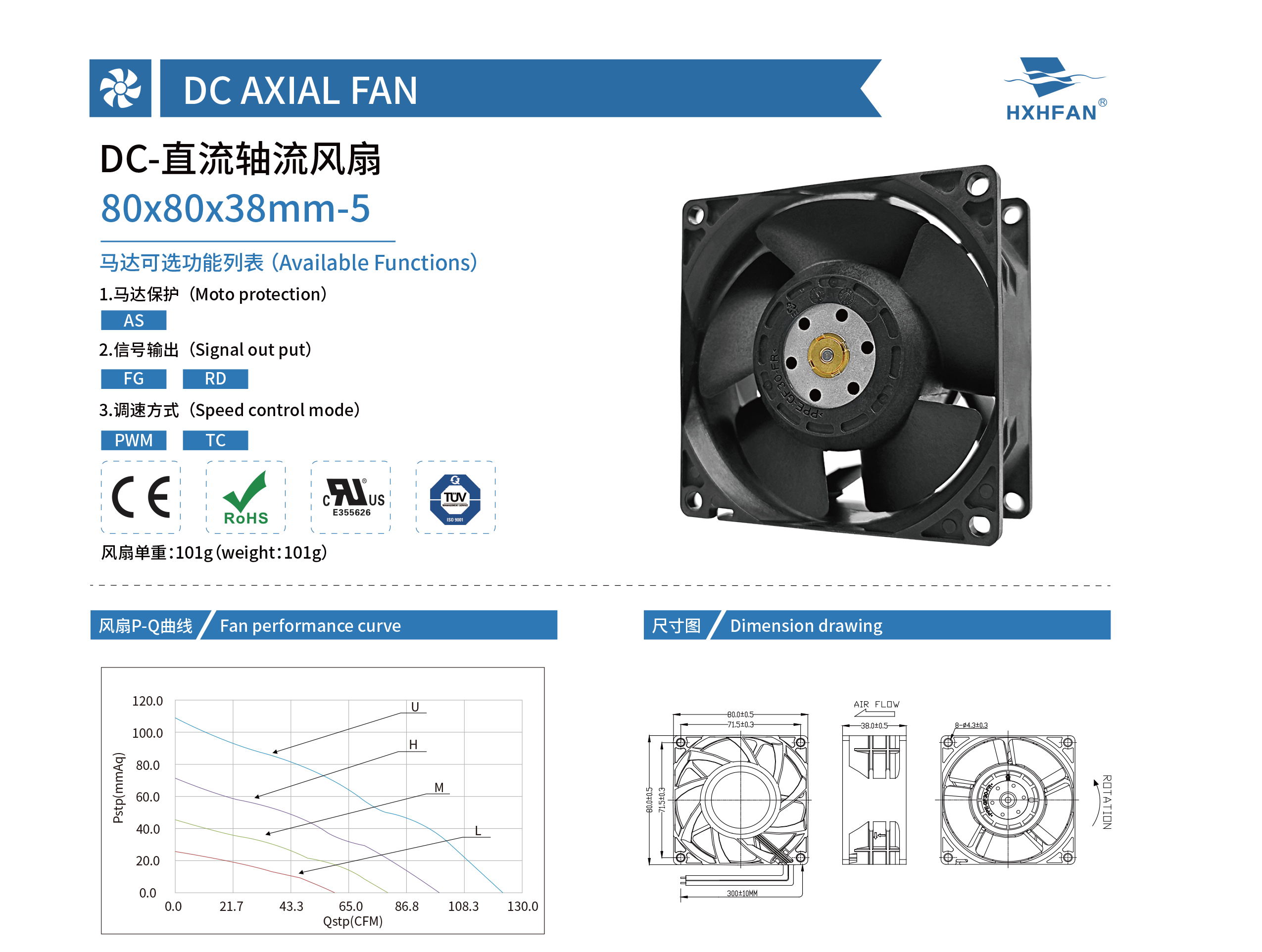

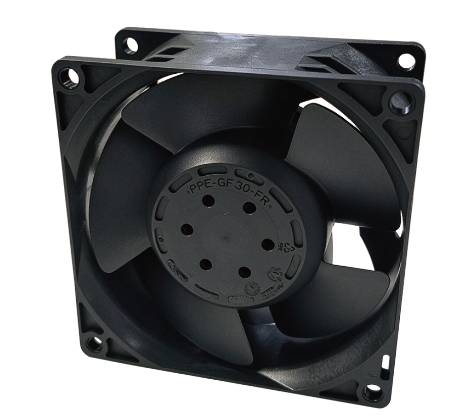

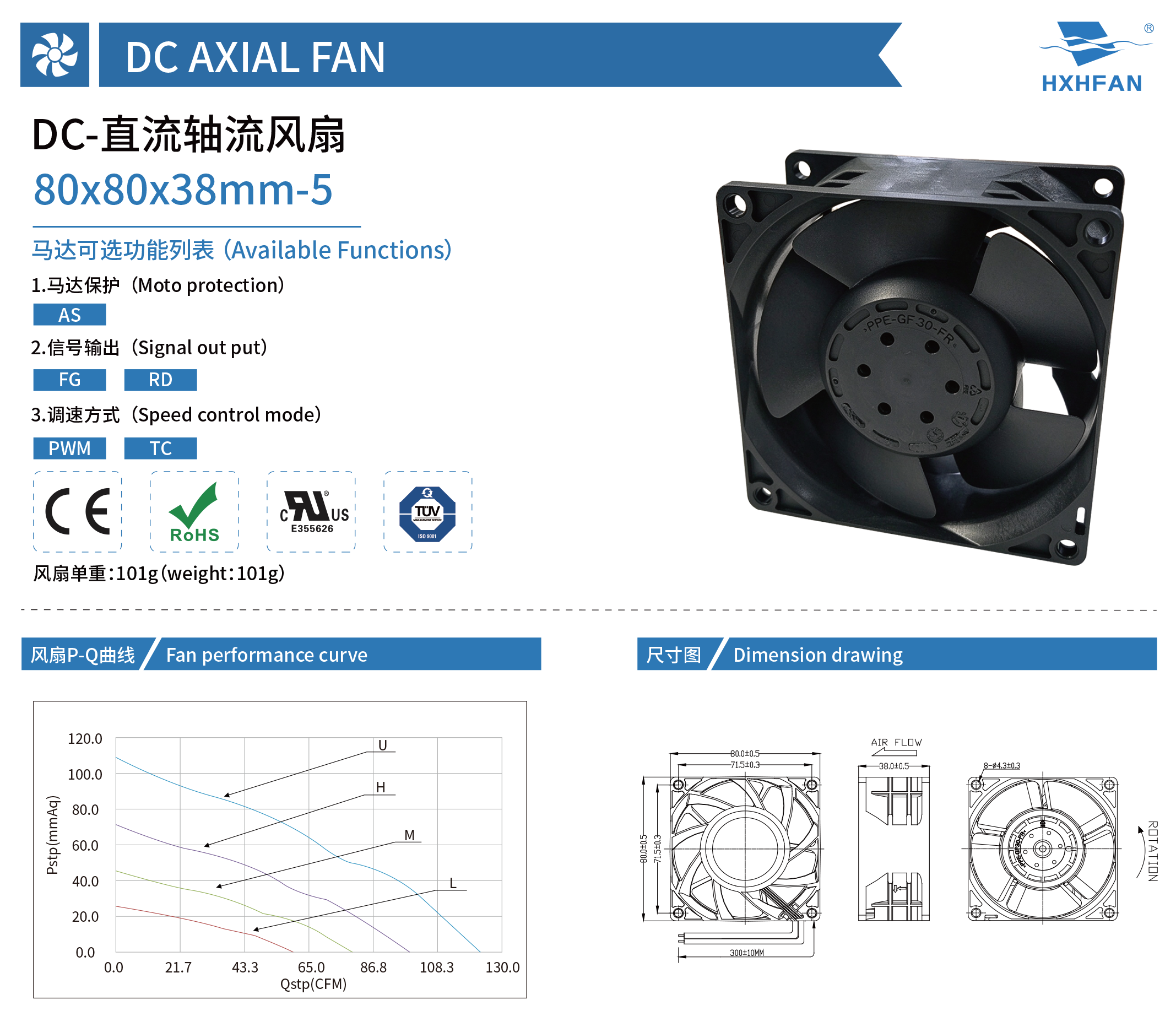

| 80*80*38MM-5 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part No. | Function | System | VDC | VDC | A | W | RPM | m3/min | CFM | mmH2O | INH2O | dBA |
| HDB0812UF-5 | -A | Ball | 12 | 9.0 | 3.20 | 38.40 | 15500 | 3.48 | 122.85 | 108.70 | 4.28 | 71.4 |
| HDB0812HF-5 | -A | 9.0 | 1.70 | 20.40 | 12500 | 2.80 | 99.07 | 70.70 | 2.78 | 66.5 | ||
| HDB0812MF-5 | -A | 9.0 | 0.90 | 10.80 | 10000 | 2.24 | 79.26 | 45.25 | 1.78 | 61.9 | ||
| HDB0812LF-5 | -A | 9.0 | 0.45 | 5.40 | 7500 | 1.68 | 59.44 | 25.45 | 1.00 | 55.6 | ||
| HDB0824UF-5 | -A | 24 | 12.0 | 1.63 | 39.12 | 15500 | 3.48 | 122.85 | 108.70 | 4.28 | 71.4 | |
| HDB0824HF-5 | -A | 12.0 | 0.88 | 21.12 | 12500 | 2.80 | 99.07 | 70.70 | 2.78 | 66.5 | ||
| HDB0824MF-5 | -A | 18.0 | 0.46 | 11.04 | 10000 | 2.24 | 79.26 | 45.25 | 1.78 | 61.9 | ||
| HDB0824LF-5 | -A | 18.0 | 0.23 | 5.52 | 7500 | 1.68 | 59.44 | 25.45 | 1.00 | 55.6 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
