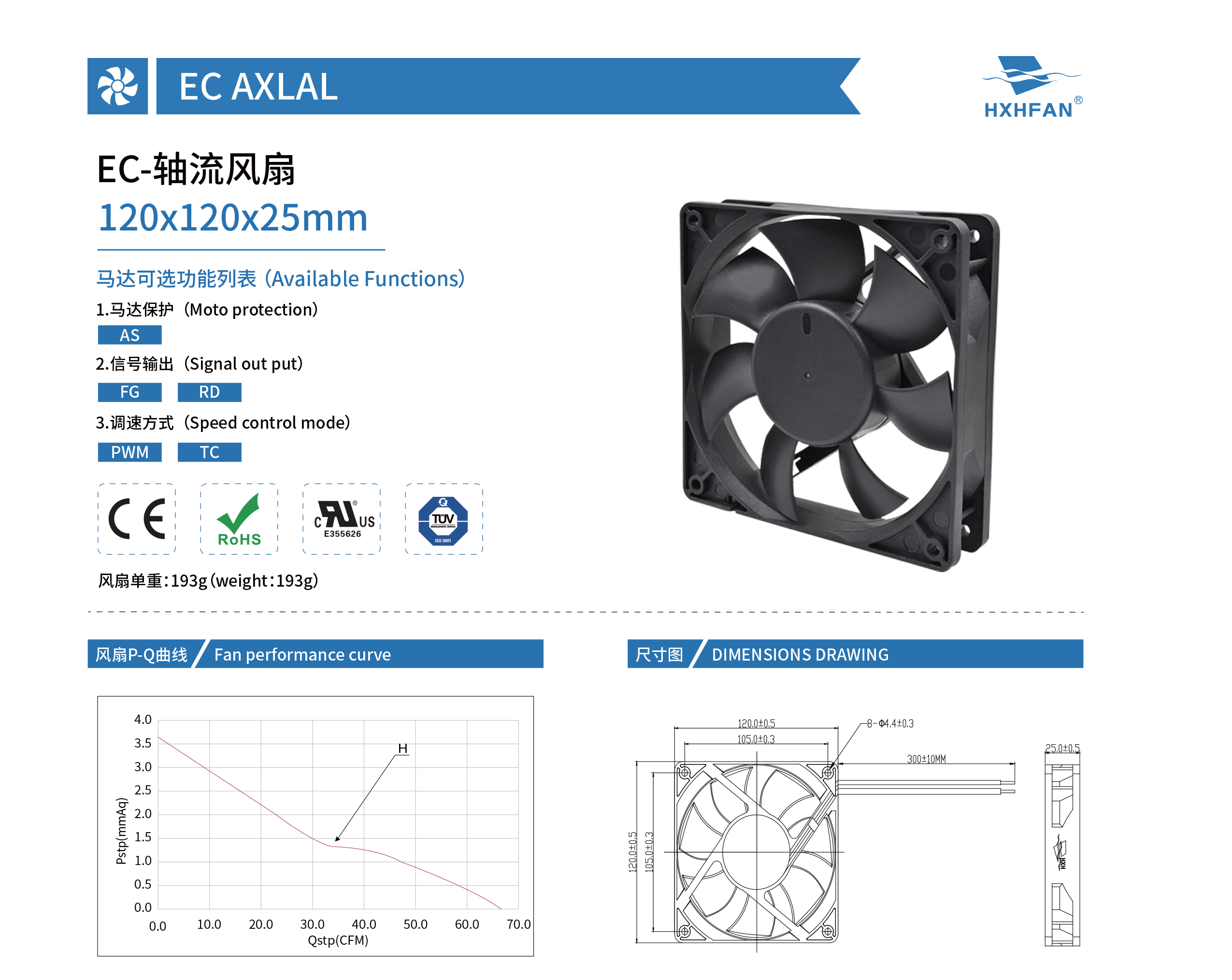

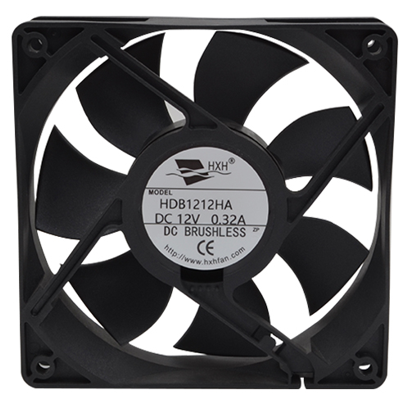

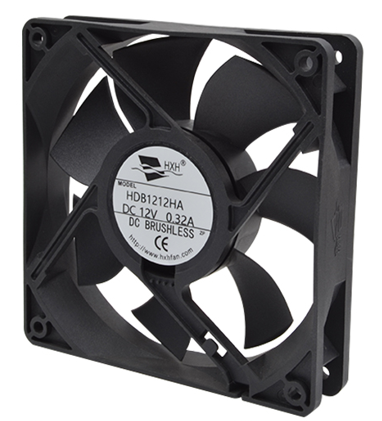

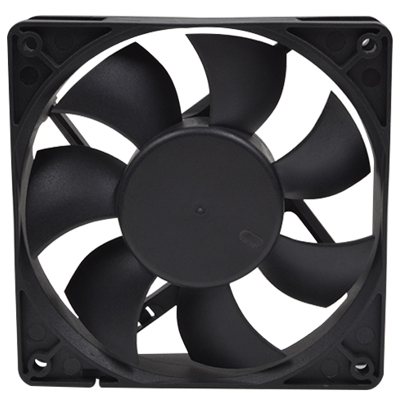

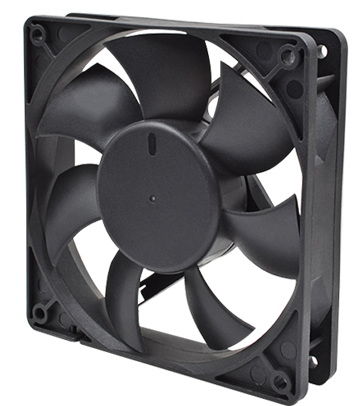

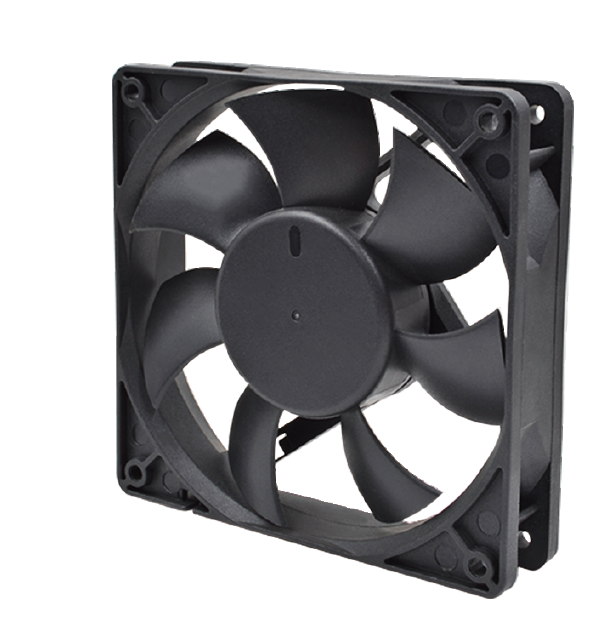

| 120*120*25MM | ||||||||||||
| Model | Bearing | Rated Voltage | Voltage Range | Frequency | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part No. | Function | System | VAC | VAC | HZ | W | RPM | m3/min | CFM | mmH2O | INH2O | dBA |
| HEB12220HA | -A | Ball | 110-220 | 90～240 | 50/60 | 2.00 | 2200 | 1.89 | 66.66 | 3.65 | 0.14 | 34.90 |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
