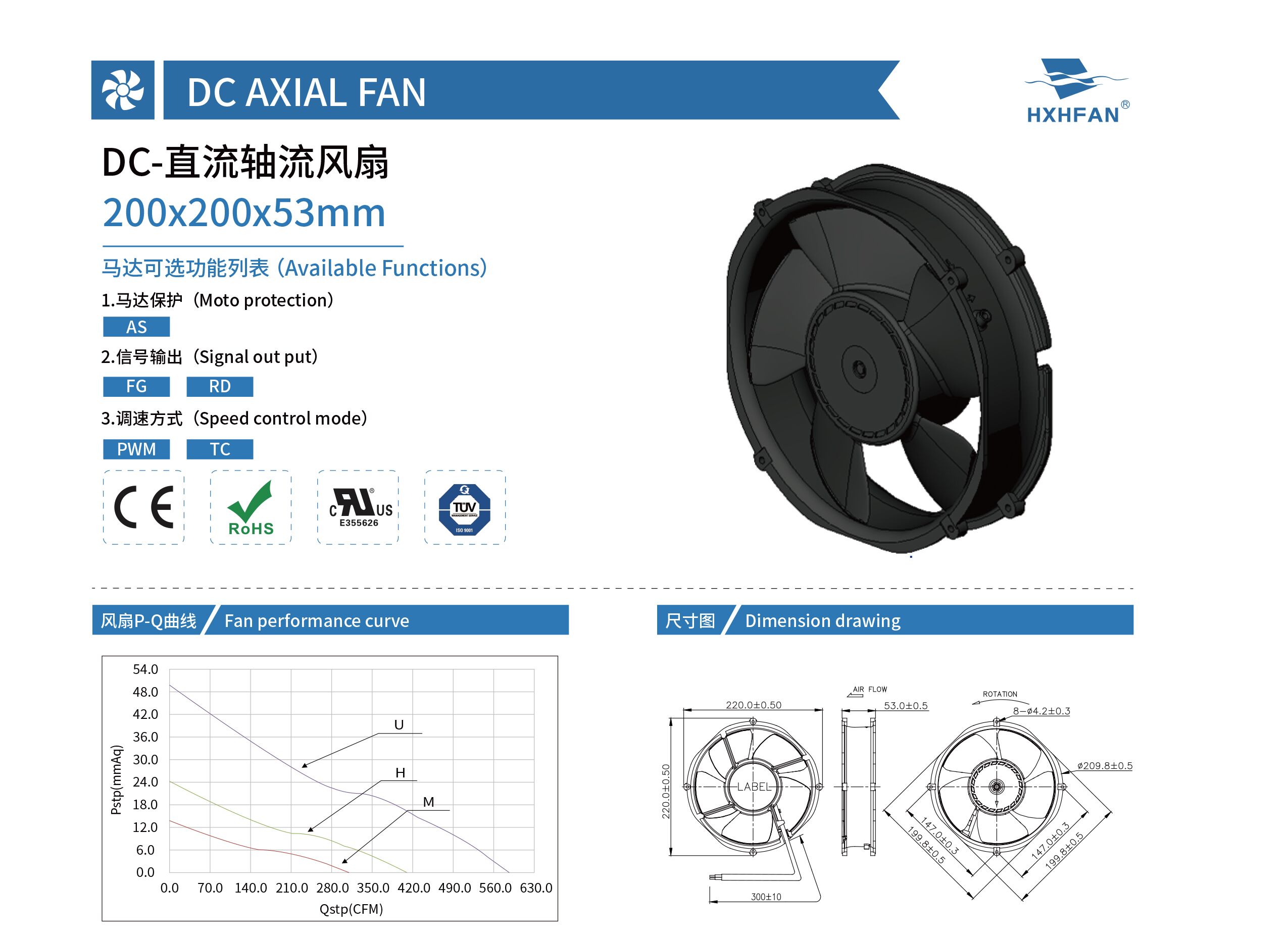

Product introduction:

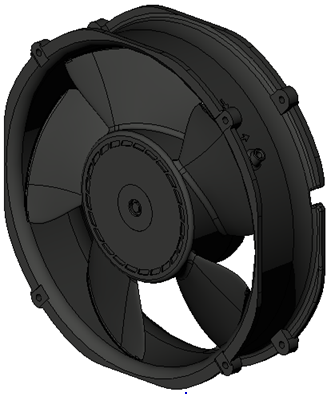

| Size: | 200*200*53mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 12V 24V |
| Bearing structure: | two Ball bearing |
| Product life: | 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 200*200*53MM(铝框PBT叶） | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB20024UU | -A | Ball | 24 | 12.0 | 3.03 | 72.72 | 5500 | 16.62 | 587.2 | 49.9 | 1.96 | 63.8 |
| HDB20024HU | -A | Ball | 12.0 | 1.16 | 27.84 | 3900 | 11.60 | 410.0 | 24.3 | 0.96 | 59.9 | |
| HDB20024MU | -A | Ball | 12.0 | 0.88 | 21.12 | 3500 | 8.76 | 309.6 | 13.9 | 0.55 | 58.2 | |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
