Product introduction:

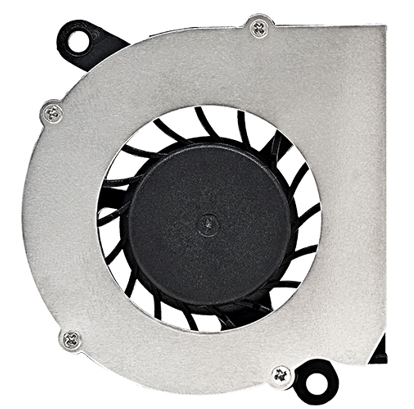

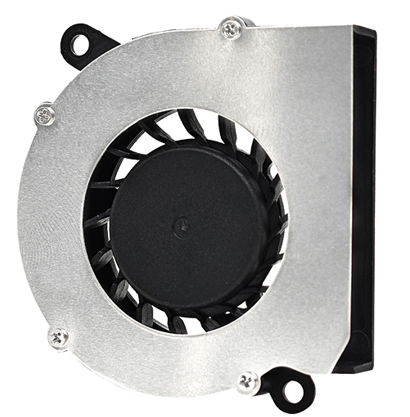

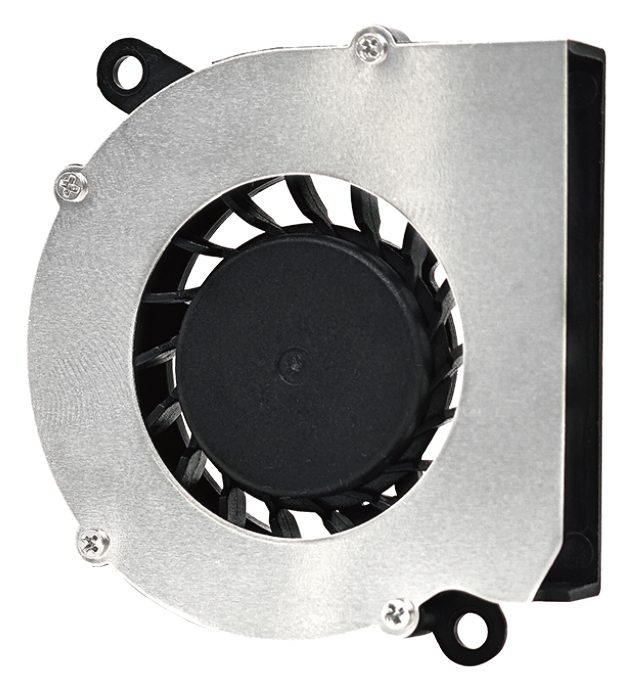

| Size: | 50x50x10mm-4 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Ball bearings |
| Product life: | 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

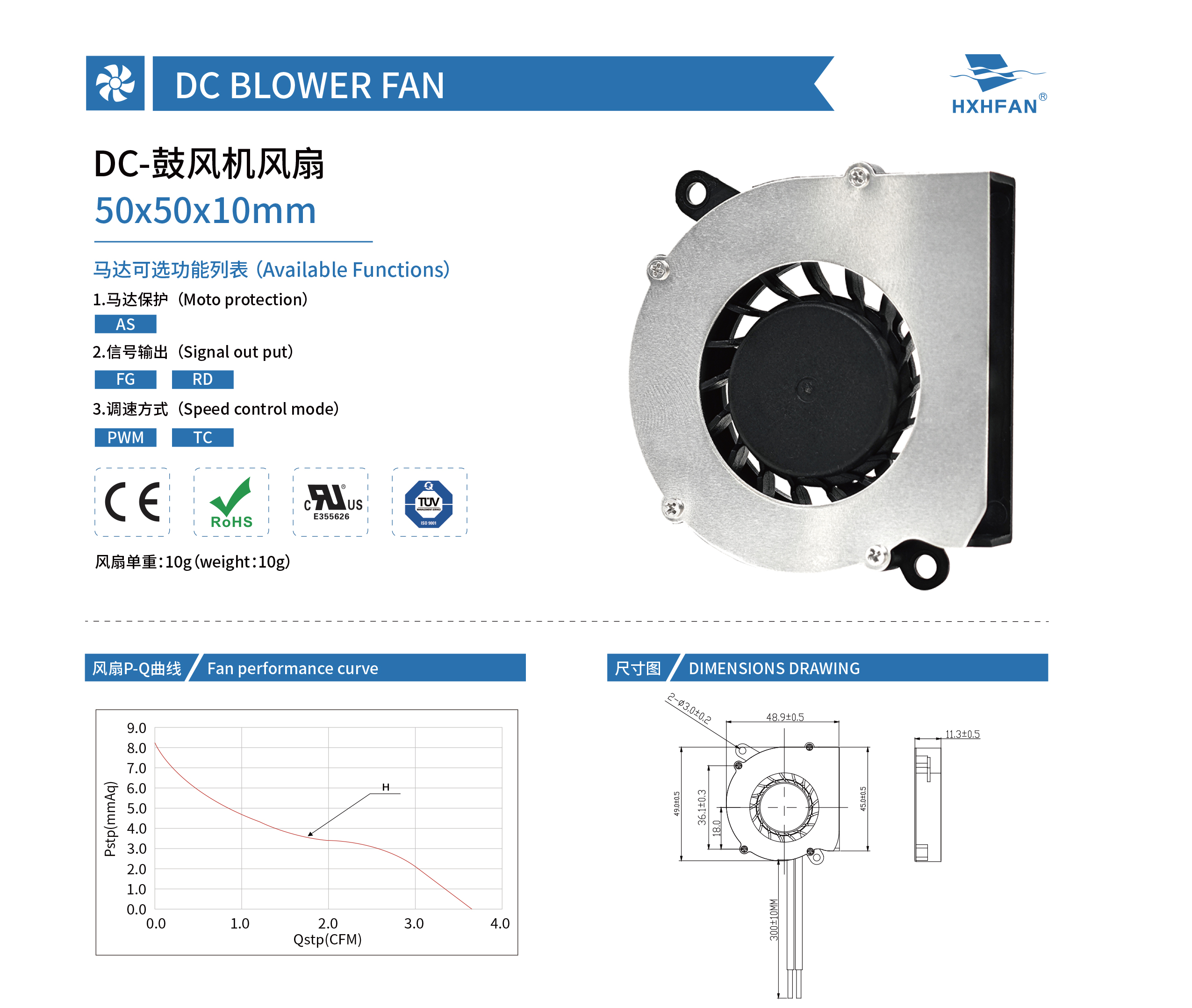

| 50×50×10MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |

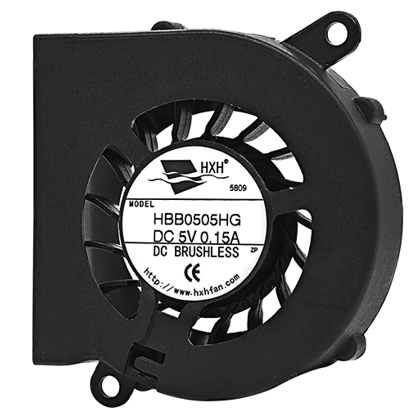

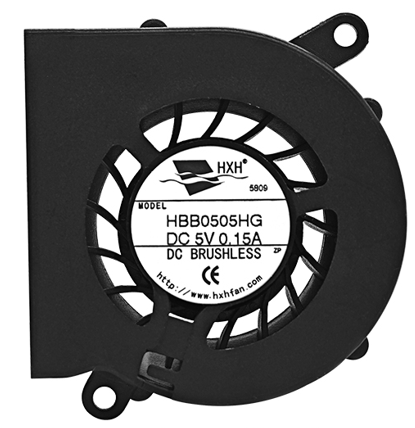

| HBB0505HG | Ball | 5 | 4.0 | 0.15 | 0.75 | 4800 | 0.10 | 3.65 | 8.23 | 0.32 | 27.3 | |
| HBB0512HG | Ball | 12 | 6.0 | 0.25 | 3.00 | 4800 | 0.10 | 3.65 | 8.23 | 0.32 | 27.3 | |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
