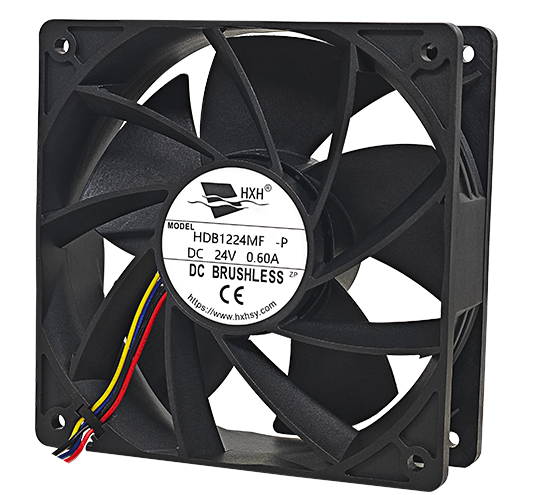

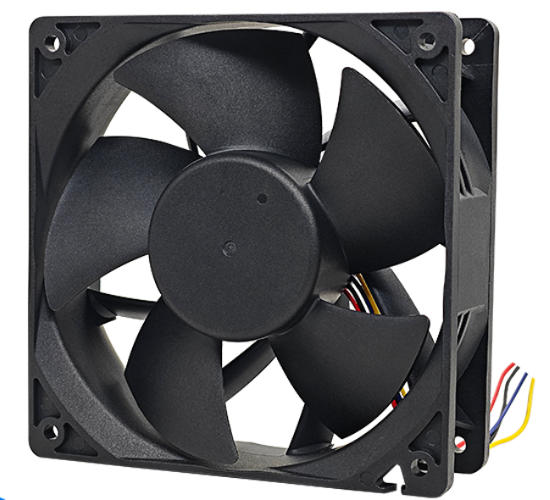

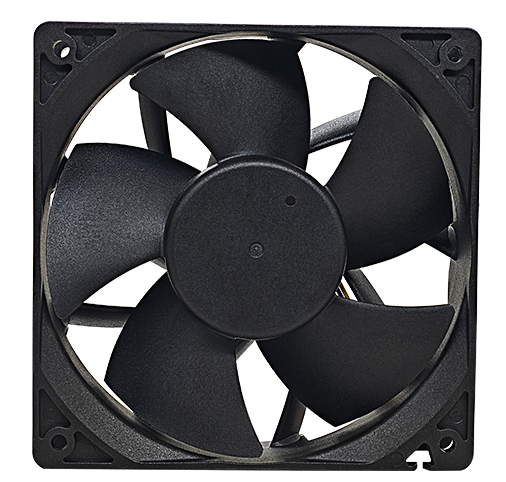

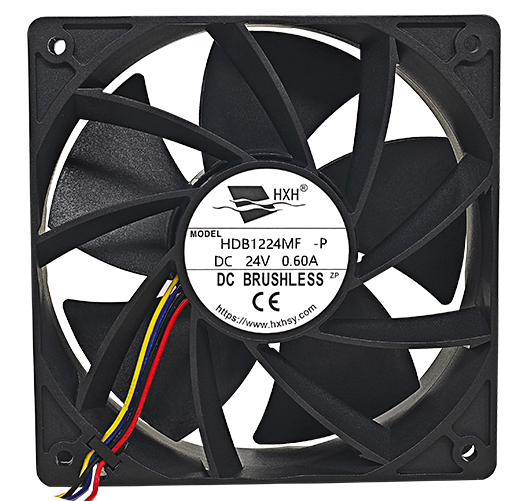

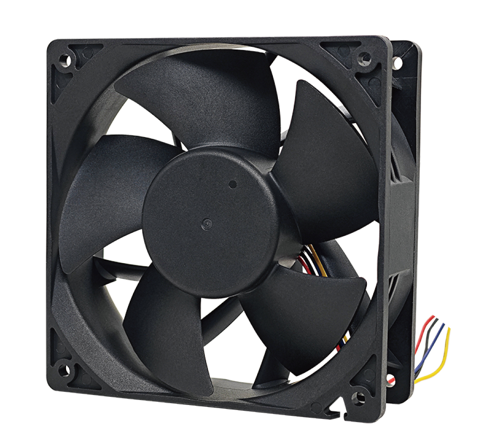

Product introduction:
| Size: | 120x120x38mm-8 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 12V 24V |
| Bearing structure: | Ball bearing |
| Product life: | 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

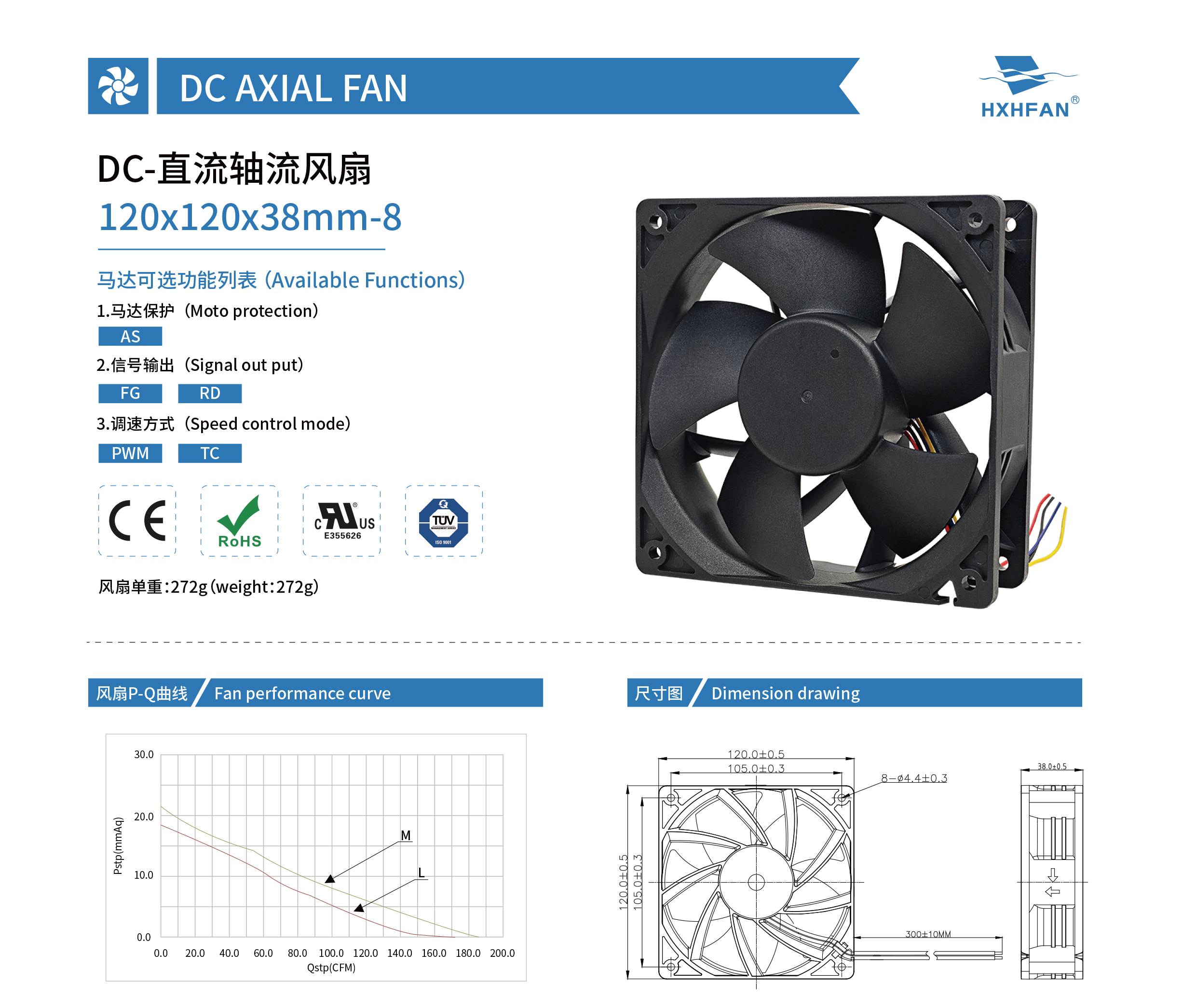

| 120*120*38MM-8 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB1212MF-8 | -A | Ball | 12 | 5.0 | 1.50 | 18.00 | 5500 | 5.26 | 185.96 | 21.35 | 0.84 | 61.6 |
| HDB1212LF-8 | -A | 5.0 | 1.20 | 14.40 | 5000 | 4.84 | 170.96 | 18.35 | 0.72 | 58.6 | ||
| HDB1224MF-8 | -A | Ball | 24 | 12.0 | 0.70 | 16.80 | 5500 | 5.26 | 185.96 | 21.35 | 0.84 | 61.6 |
| HDB1224LF-8 | -A | 12.0 | 0.50 | 12.00 | 5000 | 4.84 | 170.96 | 18.35 | 0.72 | 58.6 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
