Product introduction:
| Size: | 50x50x10mm-3 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Oil-impregnated bearings Ball bearings |
| Product life: | 30,000 hours, 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

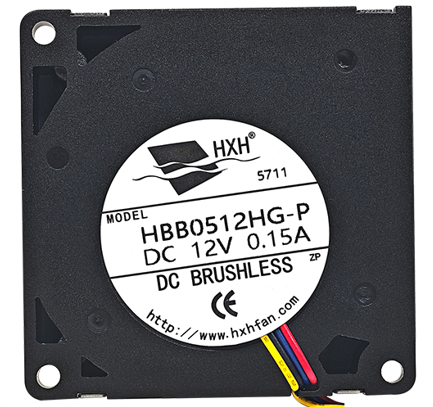

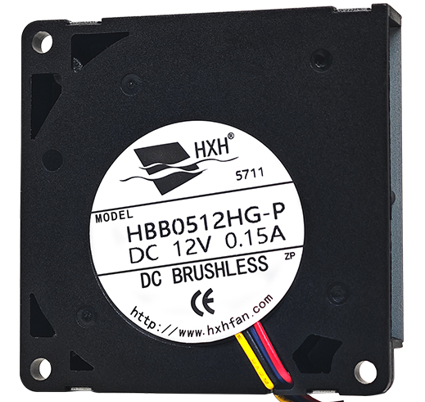

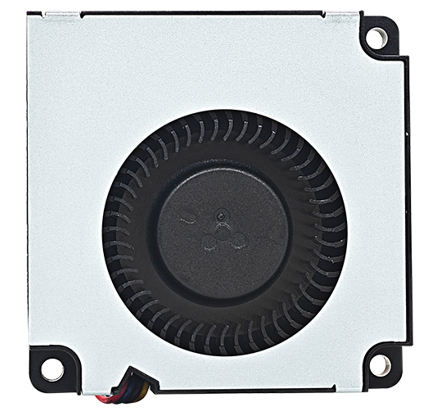

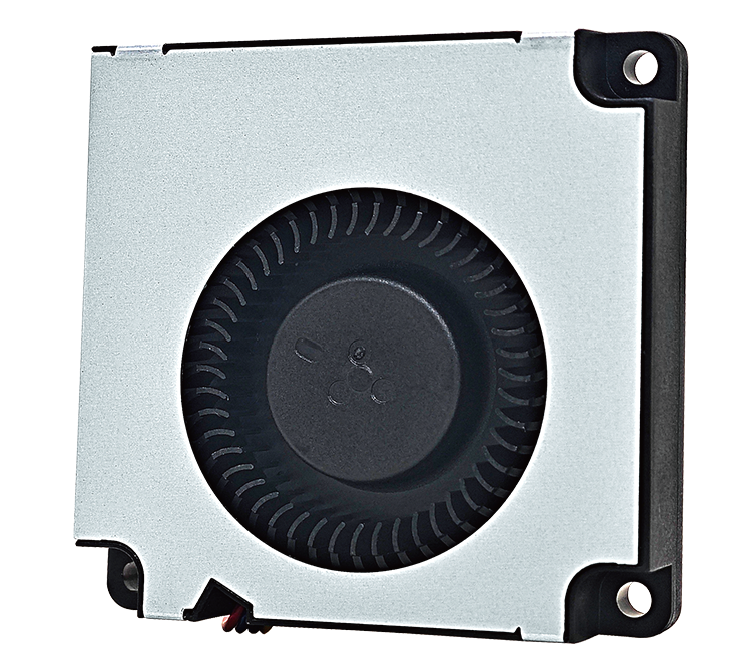

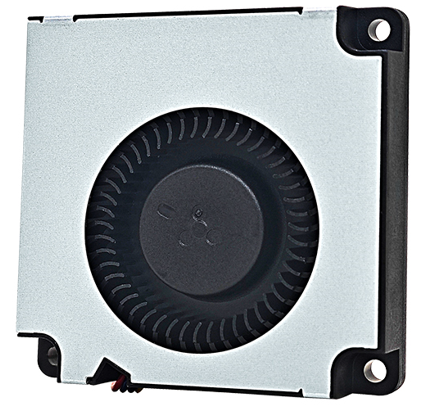

| 50×50×10MM-3 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBS0505HG-3 | Sleeve | 5 | 4.0 | 0.25 | 1.25 | 4500 | 0.08 | 2.97 | 9.54 | 0.38 | 26.6 | |
| HBS0505MG-3 | 4.0 | 0.18 | 0.90 | 4000 | 0.07 | 2.59 | 7.16 | 0.28 | 24.4 | |||
| HBS0505LG-3 | 4.0 | 0.15 | 0.75 | 3500 | 0.06 | 2.27 | 5.48 | 0.22 | 21.5 | |||
| HBB0505HG-3 | Ball | 4.0 | 0.25 | 1.25 | 4500 | 0.08 | 2.97 | 9.54 | 0.38 | 26.6 | ||
| HBB0505MG-3 | 4.0 | 0.18 | 0.90 | 4000 | 0.07 | 2.59 | 7.16 | 0.28 | 24.4 | |||
| HBB0505LG-3 | 4.0 | 0.15 | 0.75 | 3500 | 0.06 | 2.27 | 5.48 | 0.22 | 21.5 | |||
| HBS0512HG-3 | Sleeve | 12 | 4.0 | 0.15 | 1.80 | 4500 | 0.08 | 2.97 | 9.54 | 0.38 | 26.6 | |
| HBS0512MG-3 | 4.0 | 0.10 | 1.20 | 4000 | 0.07 | 2.59 | 7.16 | 0.28 | 24.4 | |||
| HBS0512LG-3 | 4.0 | 0.08 | 0.96 | 3500 | 0.06 | 2.27 | 5.48 | 0.22 | 21.5 | |||
| HBB0512HG-3 | Ball | 6.0 | 0.15 | 1.80 | 4500 | 0.08 | 2.97 | 9.54 | 0.38 | 26.6 | ||
| HBB0512MG-3 | 6.0 | 0.10 | 1.20 | 4000 | 0.07 | 2.59 | 7.16 | 0.28 | 24.4 | |||
| HBB0512LG-3 | 6.0 | 0.08 | 0.96 | 3500 | 0.06 | 2.27 | 5.48 | 0.22 | 21.5 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
