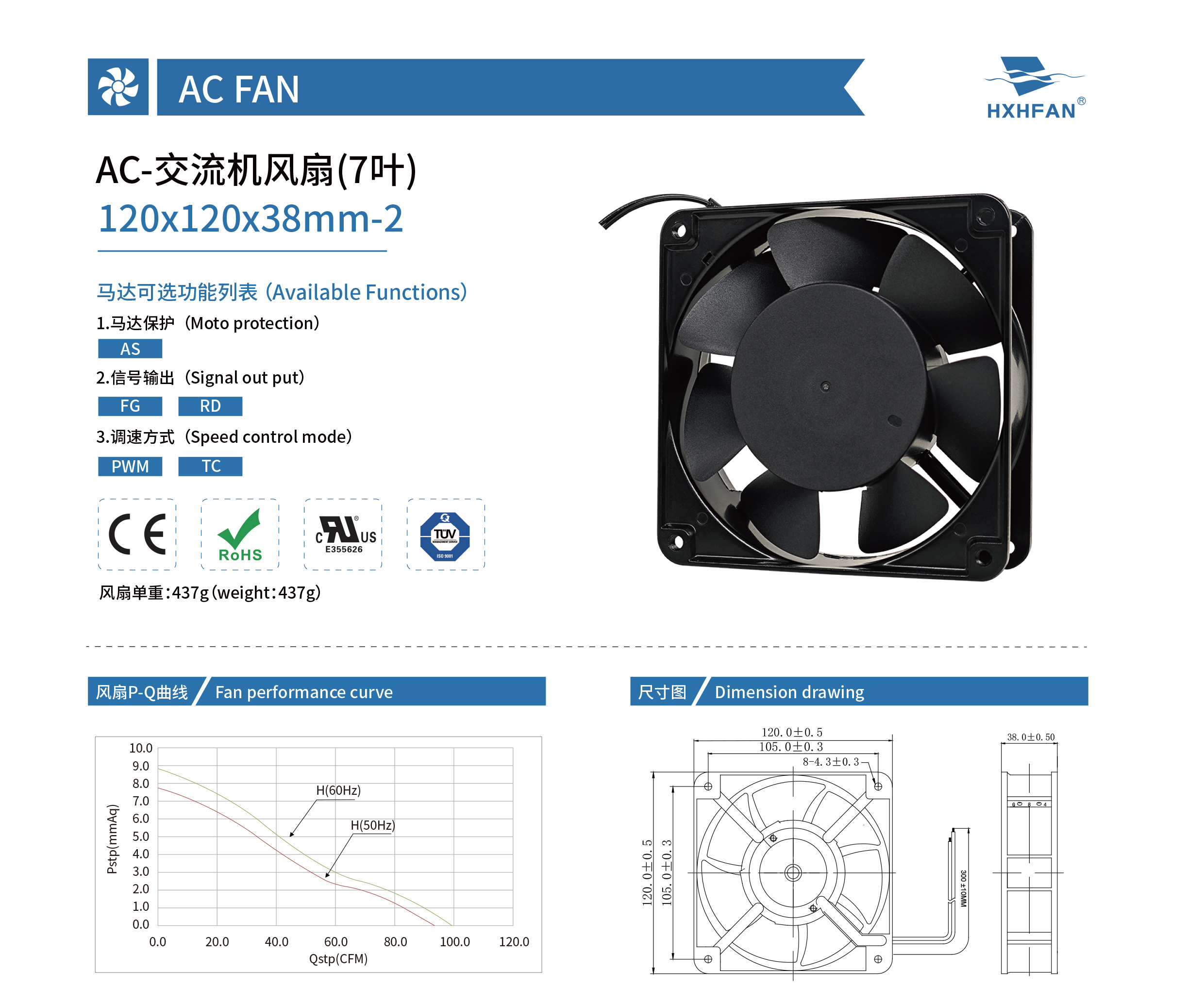

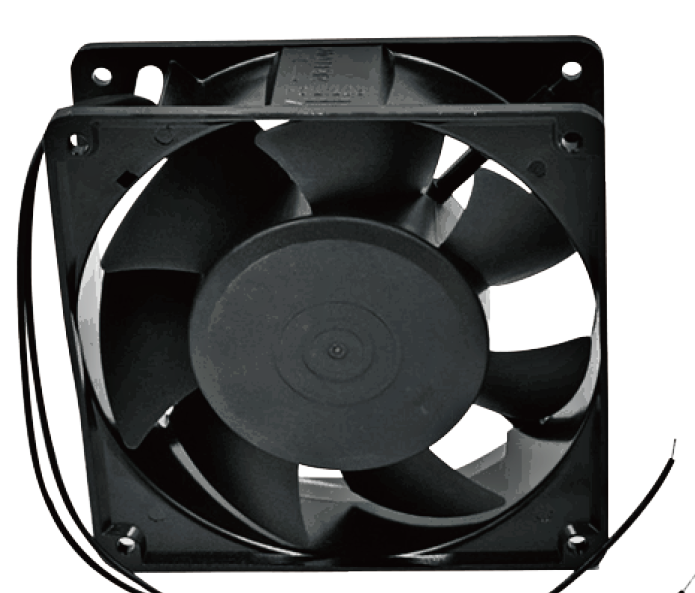

| 120*120*38MM-2(7叶 ) | ||||||||||||
| Model | Bearing | Rated Voltage | Voltage Range | Freq. | Current | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Type | System | VAC | VAC | Hz | A | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HAB120110H38-2 | W/T | Ball | 110 | 100-225 | 50/60 | 0.22/0.18 | 2500/2800 | 2.63/2.80 | 93/99 | 7.7/8.8 | 0.30/0.35 | 42/45 |
| HAB120220H38-2 | W/T | Ball | 220 | 200-240 | 50/60 | 0.14/0.12 | 2500/2800 | 2.63/2.80 | 93/99 | 7.7/8.8 | 0.30/0.35 | 42/45 |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
