Product introduction:

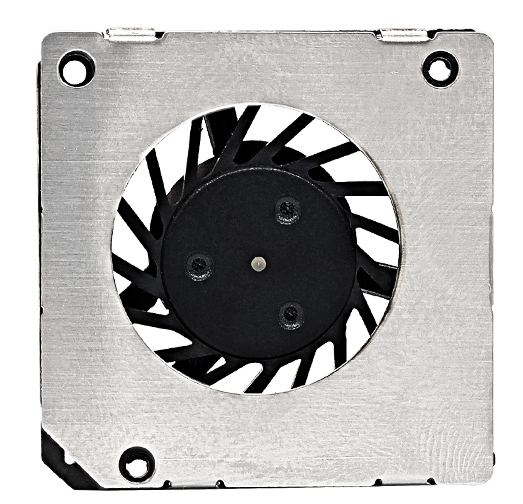

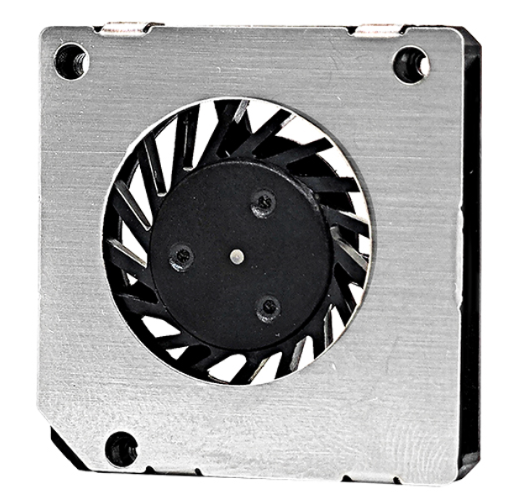

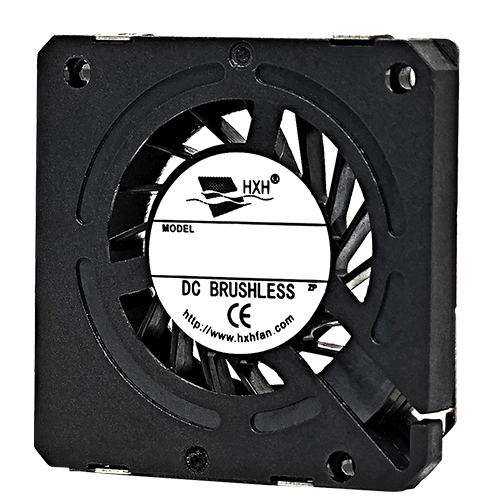

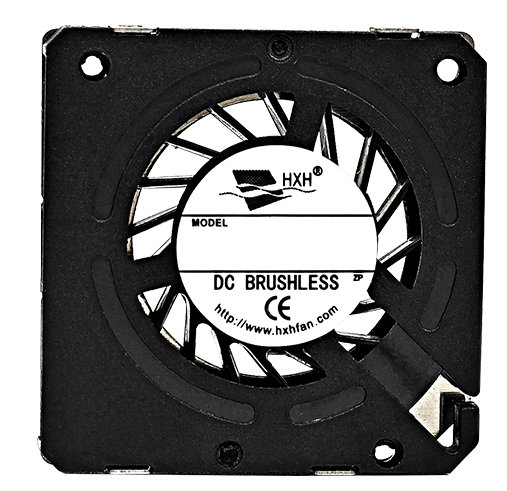

| Size: | 30x30x04mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V |
| Bearing structure: | Hydraulic bearing |
| Product life: | 40,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

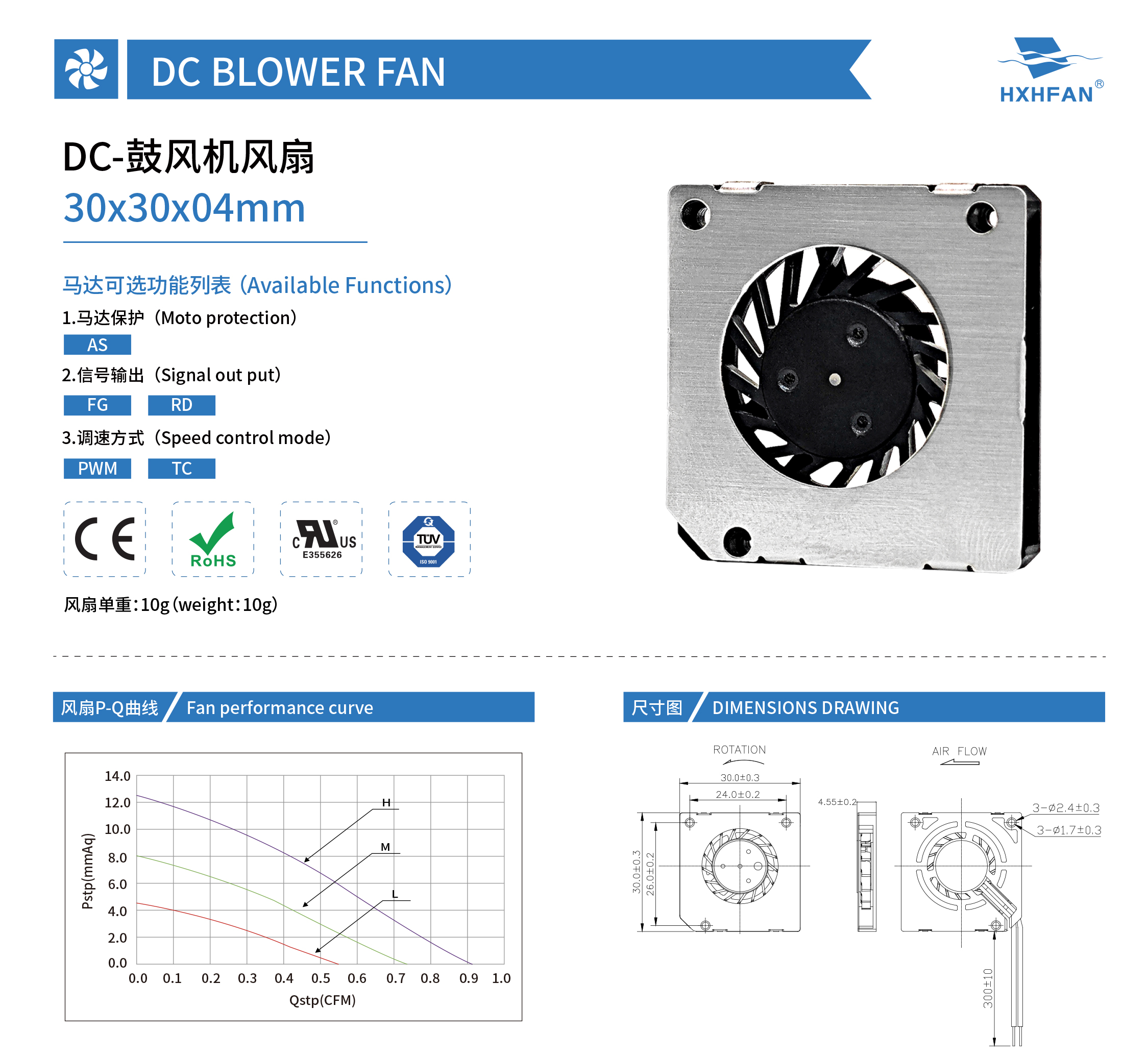

| 30×30×04MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise （0.3M) | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBH0305HV | Hydraulic | 5 | 4.0 | 0.15 | 0.75 | 10000 | 0.03 | 0.91 | 12.42 | 0.49 | 42.2 | |
| HBH0305MV | 4.0 | 0.12 | 0.60 | 8000 | 0.02 | 0.73 | 7.95 | 0.31 | 37.3 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
