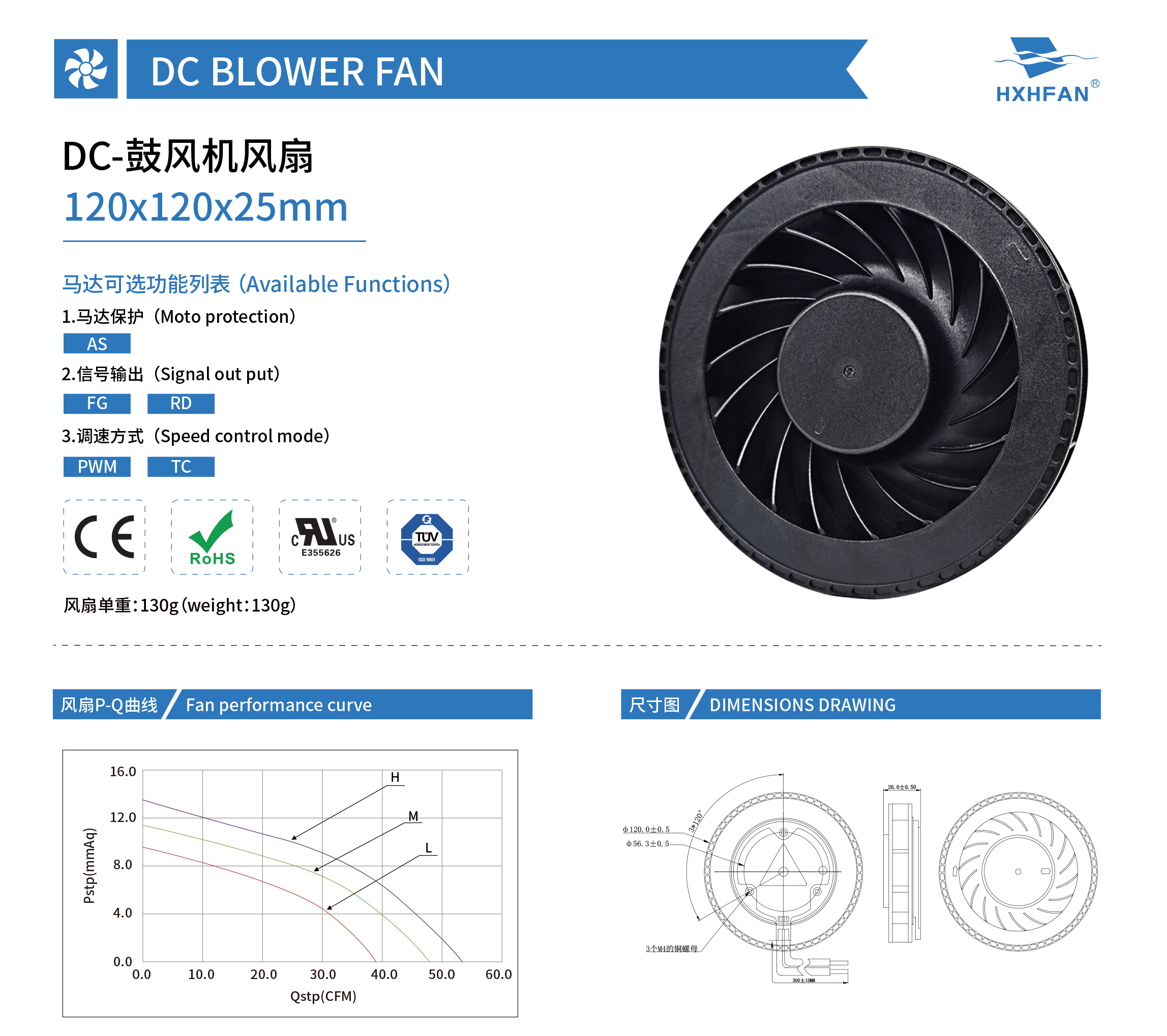

Product introduction:
| Size: | 120x120x25mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 12V 24V |
| Bearing structure: | Sleeve Bearing Or Ball Bearing |
| Product life: | 30,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

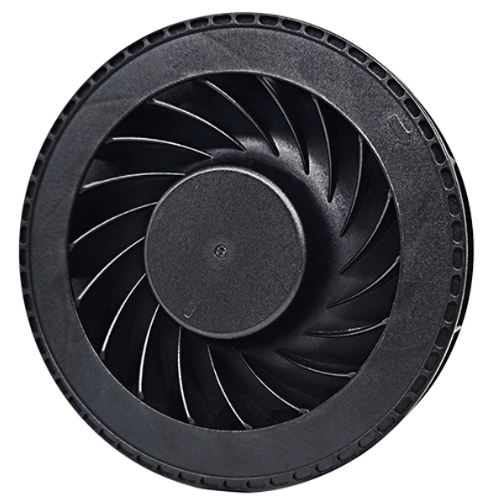

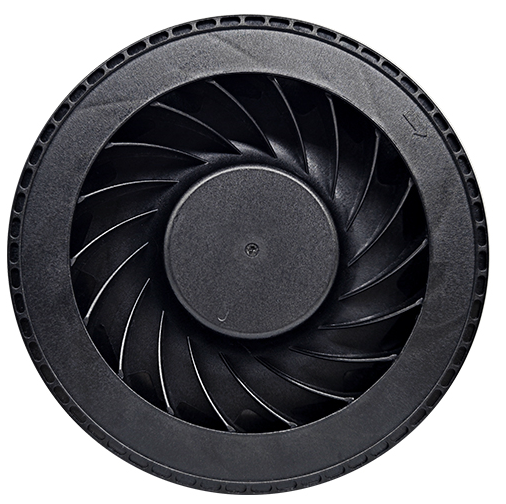

| 120*120*25MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBS1212HA | SLEEVE | 12 | 9.5 | 0.45 | 5.40 | 2500 | 1.51 | 53.32 | 13.48 | 0.53 | 45.0 | |
| HBS1212MA | 9.5 | 0.40 | 4.80 | 2000 | 1.36 | 47.92 | 11.35 | 0.45 | 41.2 | |||
| HBS1212LA | 9.5 | 0.32 | 3.84 | 1500 | 1.10 | 38.96 | 9.51 | 0.37 | 34.8 | |||
| HBB1212HA | BALL | 9.5 | 0.45 | 5.40 | 2500 | 1.51 | 53.32 | 13.48 | 0.53 | 45.0 | ||

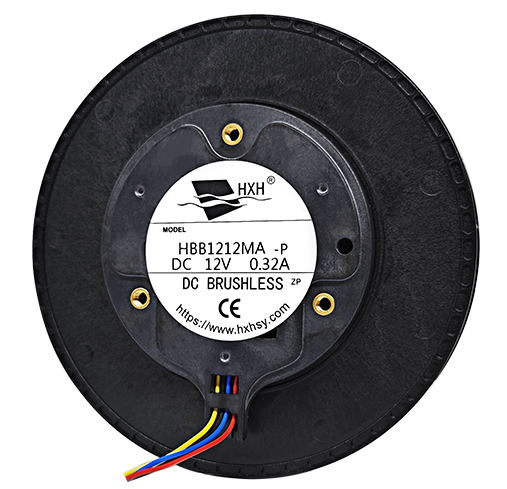

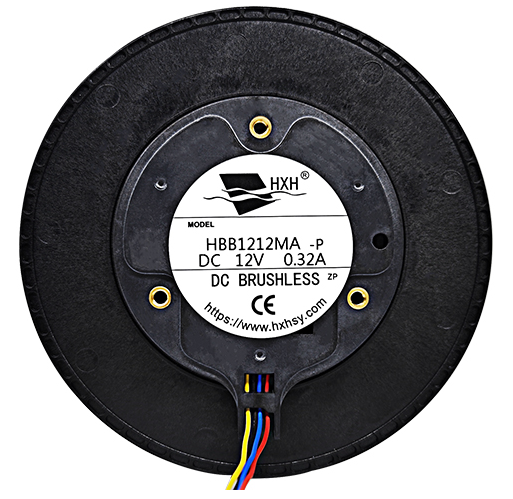

| HBB1212MA | 9.5 | 0.40 | 4.80 | 2000 | 1.36 | 47.92 | 11.35 | 0.45 | 41.2 | |||
| HBB1212LA | 9.5 | 0.32 | 3.84 | 1500 | 1.10 | 38.96 | 9.51 | 0.37 | 34.8 | |||
| HBS1224HA | SLEEVE | 24 | 12.0 | 0.30 | 7.20 | 2500 | 1.51 | 53.32 | 13.48 | 0.53 | 45.0 | |
| HBS1224MA | 12.0 | 0.25 | 6.00 | 2000 | 1.36 | 47.92 | 11.35 | 0.45 | 41.2 | |||
| HBS1224LA | 12.0 | 0.20 | 4.80 | 1500 | 1.10 | 38.96 | 9.51 | 0.37 | 34.8 | |||
| HBB1224HA | BALL | 12.0 | 0.30 | 7.20 | 2500 | 1.51 | 53.32 | 13.48 | 0.53 | 45.0 | ||
| HBB1224MA | 12.0 | 0.25 | 6.00 | 2000 | 1.36 | 47.92 | 11.35 | 0.45 | 41.2 | |||
| HBB1224LA | 12.0 | 0.20 | 4.80 | 1500 | 1.10 | 38.96 | 9.51 | 0.37 | 34.8 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
