| Size: | 172x150x51mm-2 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 110V 220V |
| Bearing structure: | Ball bearing |
| Product life: | 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

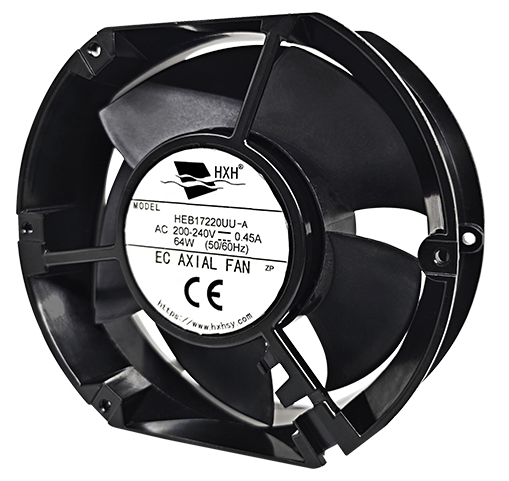

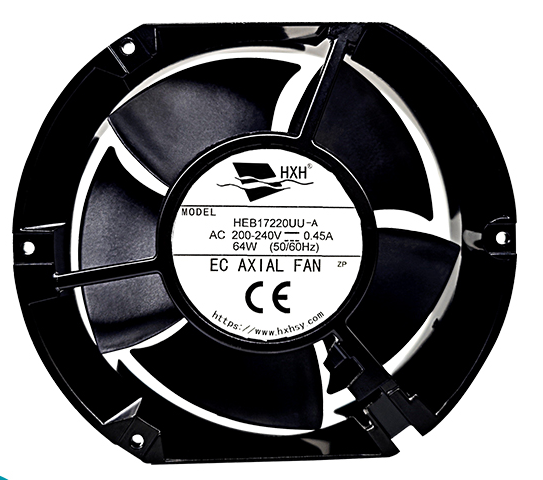

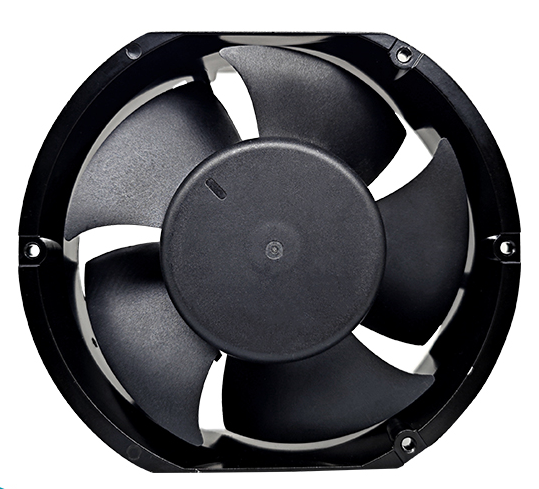

| 172*150*51MM-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Operation Voltage Range | Frequency | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part No. | Function | System | VAC | VAC | HZ | W | RPM | m3/min | CFM | mmH2O | INH2O | dBA |
| HEB172230HU-2 | -A | Ball | 230 | 180-260 | 50/60 | 60.00 | 5200 | 9.82 | 347.00 | 46.70 | 1.84 | 67.2 |
| HEB172230MU-2 | -A | 180-260 | 50/60 | 38.90 | 4500 | 8.49 | 300.00 | 35.00 | 1.38 | 64.0 | ||
| HEB172230LU-2 | -A | 180-260 | 50/60 | 14.00 | 3200 | 6.03 | 213.00 | 17.70 | 0.70 | 56.6 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
