Product introduction:

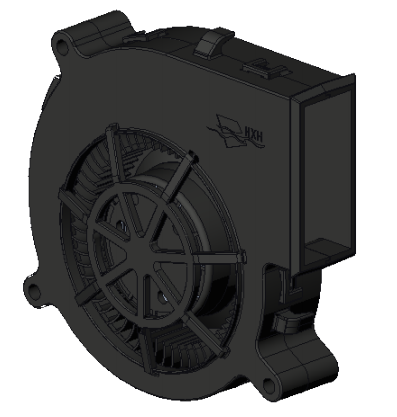

Size: 100x100x25mm-2
Material: Environmental protection and fire protection PBT UL 94V-0
Operating voltage: 5V 12V 24V
Bearing structure: Oil-impregnated bearings Ball bearings
Product life: 30,000 hours, 70,000 hours
Output function: FG function  RD function PWM function
Operating temperature: -10℃ ~70℃
Storage temperature: -40℃ ~75℃
Click for Inqueries
Click to Download pdf

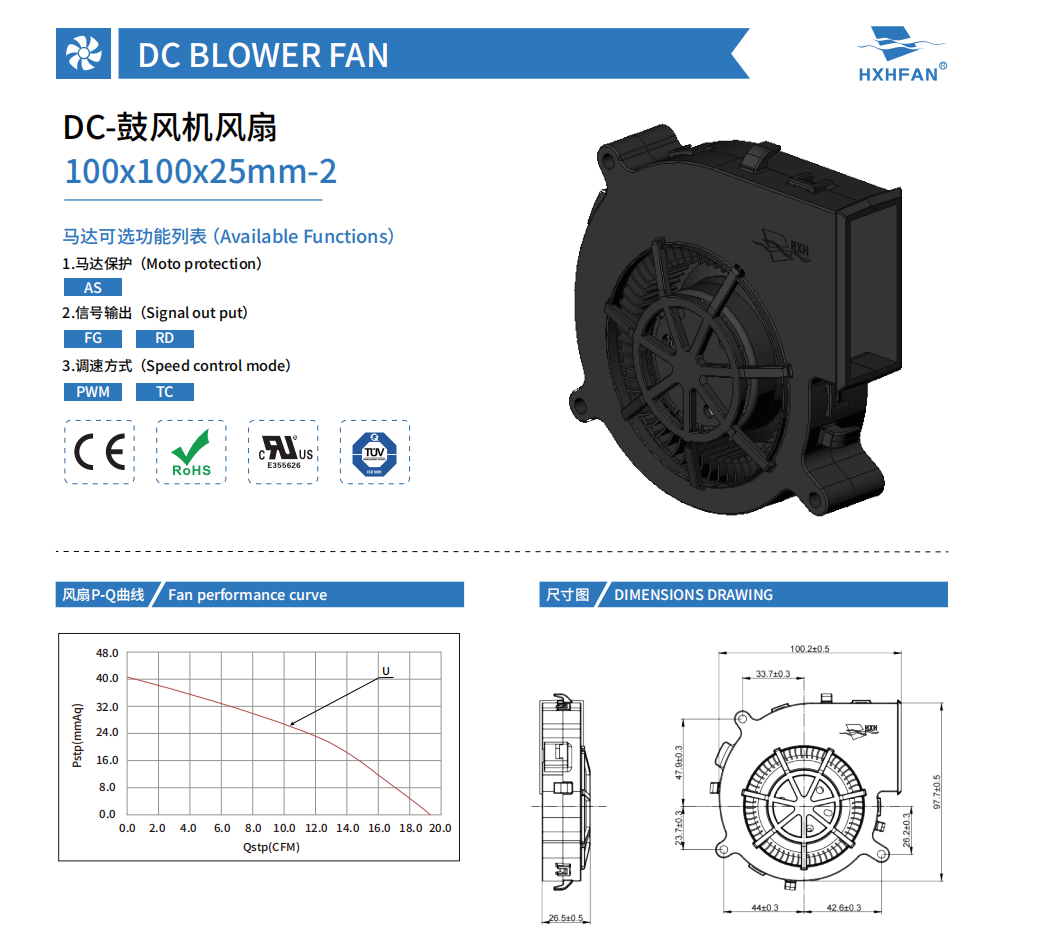

100*100*25MM-2
Model Bearing Rated Voltage Startup Voltage Current Power Speed Air Flow Static Pressure Noise
Part NO. Function System VDC VDC A W RPM M3/min CFM mmH2O INH2O dBA
HBB1013UA-2 -P BALL 13 6.0 0.50 6.50 3650 0.55 19.32 40.50 1.59 51.0
Bearing Type:S=Sleeve  Bearing   H=Hydraulic Bearing   B=Two Ball Bearing   C=One Ball  One Sleeve  Bearing
