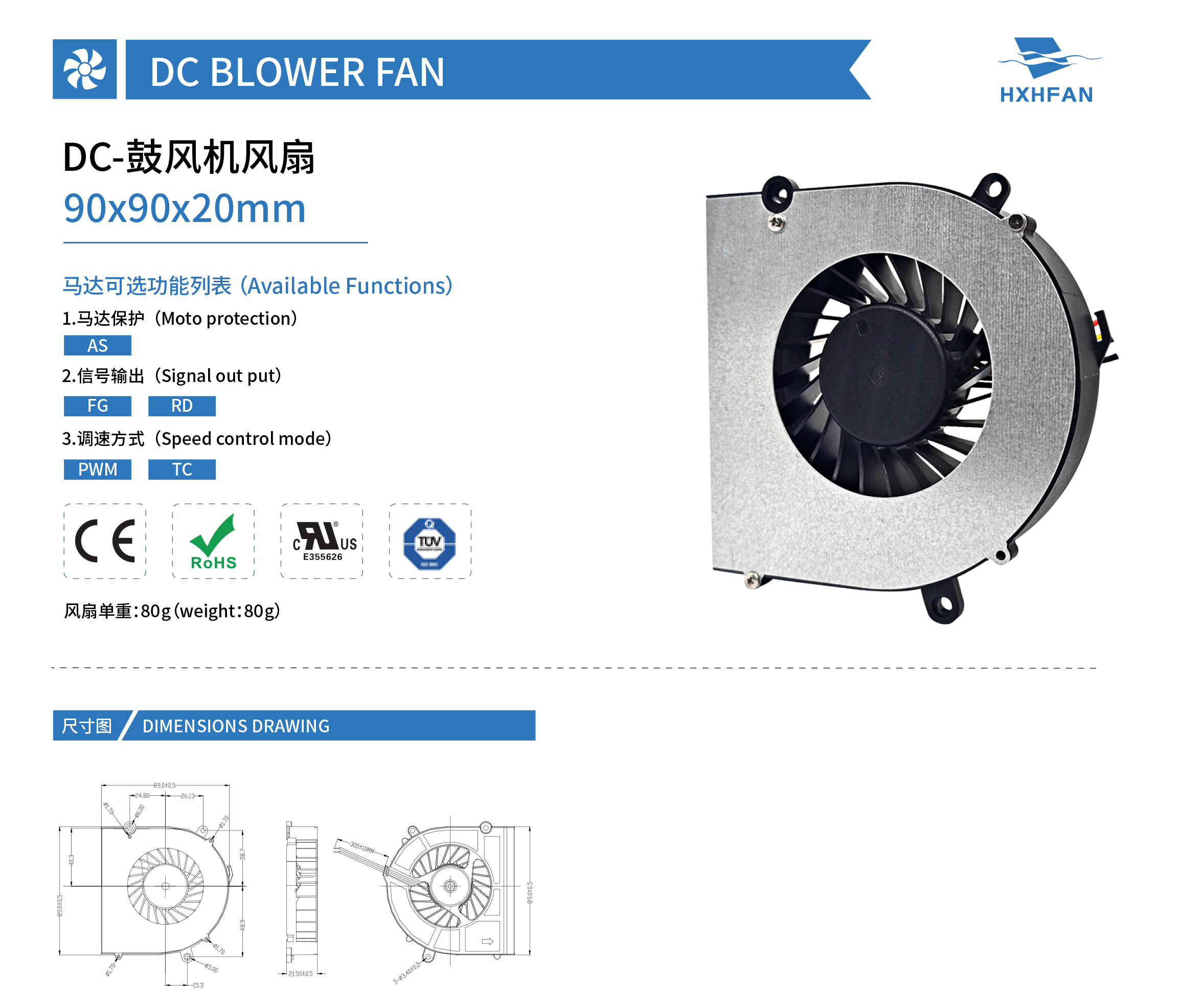

Product introduction:

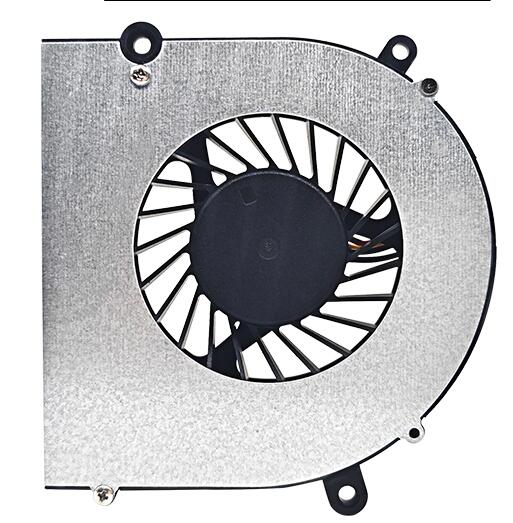

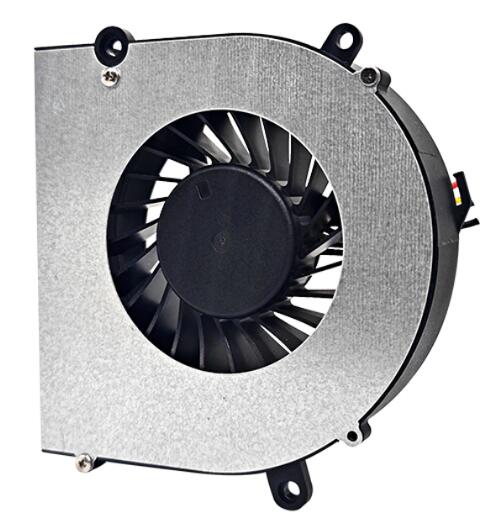

| Size: | 90x90x20mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Oil Bearing Ball Bearing |
| Product life: | 30,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 90*90*20MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBS0912HC | SLEEVE | 12 | 5.0 | 0.50 | 6.00 | 3500 | 0.55 | 19.45 | 20.35 | 0.80 | 42.0 | |
| HBS0912MC | 5.0 | 0.30 | 3.60 | 2800 | 0.44 | 15.67 | 12.34 | 0.49 | 35.4 | |||
| HBS0912LC | 5.0 | 0.23 | 2.76 | 2200 | 0.35 | 12.23 | 6.52 | 0.26 | 28.0 | |||

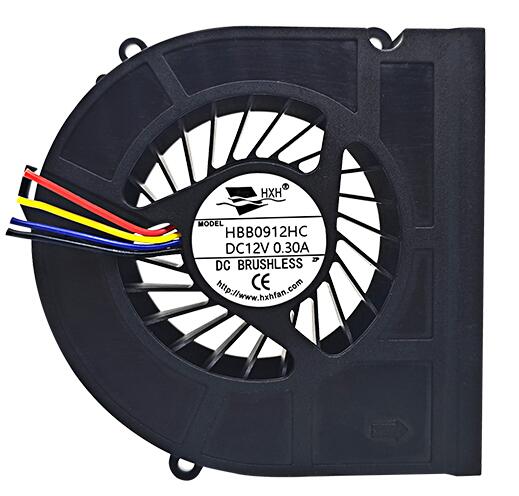

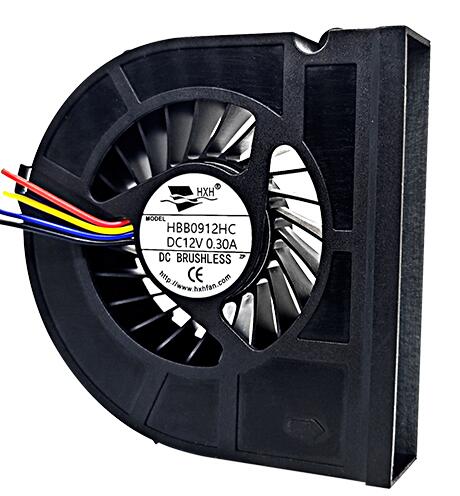

| HBB0912HC | BALL | 5.0 | 0.50 | 6.00 | 3500 | 0.55 | 19.45 | 20.35 | 0.80 | 42.0 | ||
| HBB0912MC | 5.0 | 0.30 | 3.60 | 2800 | 0.44 | 15.67 | 12.34 | 0.49 | 35.4 | |||
| HBB0912LC | 5.0 | 0.23 | 2.76 | 2200 | 0.35 | 12.23 | 6.52 | 0.26 | 28.0 | |||
| HBS0924HC | SLEEVE | 24 | 12.0 | 0.25 | 6.00 | 3500 | 0.55 | 19.45 | 20.35 | 0.80 | 42.0 | |
| HBS0924MC | 12.0 | 0.16 | 3.84 | 2800 | 0.44 | 15.67 | 12.34 | 0.49 | 35.4 | |||
| HBS0924LC | 12.0 | 0.10 | 2.40 | 2200 | 0.35 | 12.23 | 6.52 | 0.26 | 28.0 | |||
| HBB0924HC | BALL | 12.0 | 0.25 | 6.00 | 3500 | 0.55 | 19.45 | 20.35 | 0.80 | 42.0 | ||
| HBB0924MC | 12.0 | 0.16 | 3.84 | 2800 | 0.44 | 15.67 | 12.34 | 0.49 | 35.4 | |||
| HBB0924LC | 12.0 | 0.10 | 2.40 | 2200 | 0.35 | 12.23 | 6.52 | 0.26 | 28.0 | |||
