Product introduction:

Size: 80x80x20mm
Material: Environmental protection and fire protection PBT UL 94V-0
Operating voltage: 5V 12V
Bearing structure:  Hydraulic Bearingor Two Ball Bearing
Product life: 40,000 hours
Output function: FG function  RD function PWM function
Operating temperature: -10℃ ~70℃
Storage temperature: -40℃ ~75℃
Click for Inqueries
Click to Download pdf

80×80×20MM
Model Bearing Rated Voltage Startup Voltage Current Power Speed Air Flow Static Pressure Noise
Part NO. Function System VDC VDC A W RPM M3/min CFM mmH2O INH2O dBA

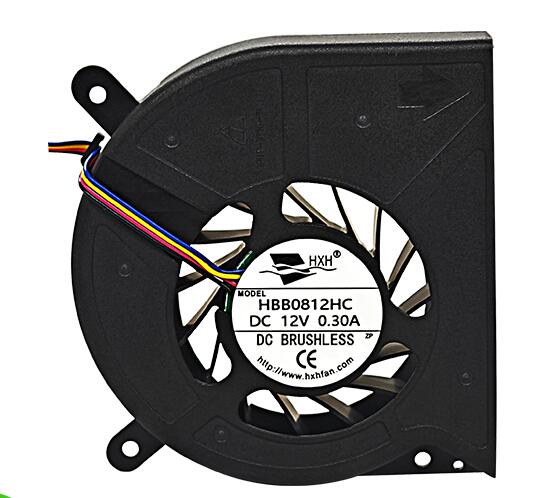

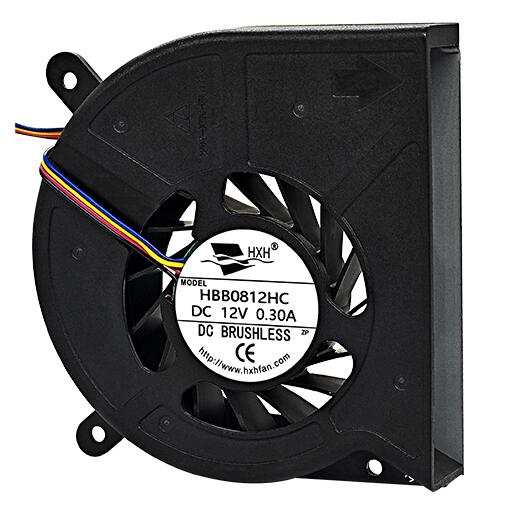

HBB0812HC   BALL 12 6.0 0.30 3.60 3600 0.50 17.50 16.70 0.66 46.0
Bearing Type:S=Sleeve  Bearing   H=Hydraulic Bearing   B=Two Ball Bearing   C=One Ball  One Sleeve  Bearing
