Product introduction:

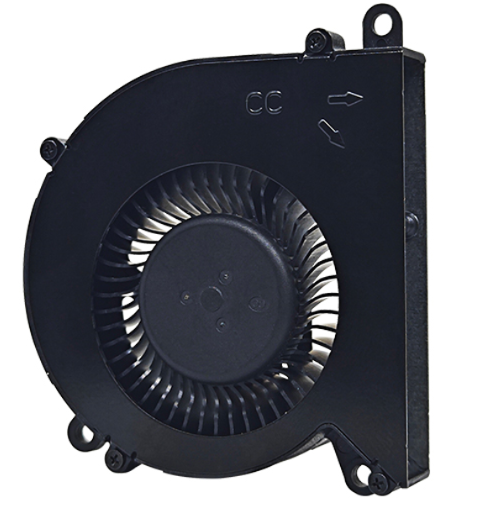

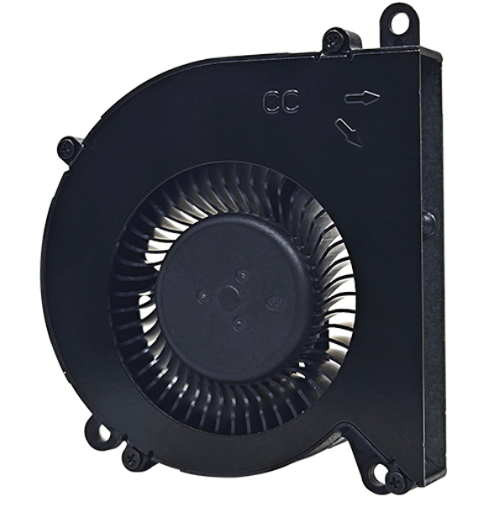

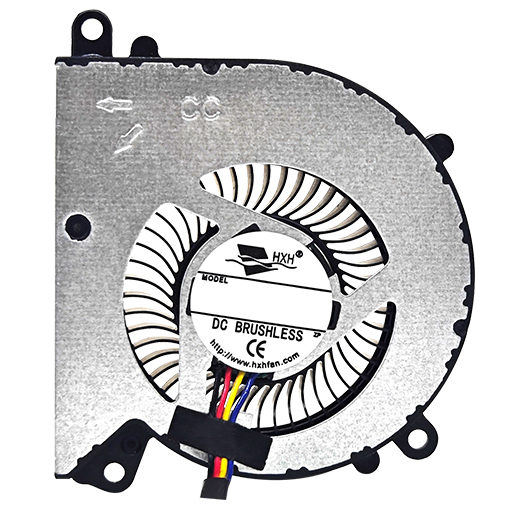

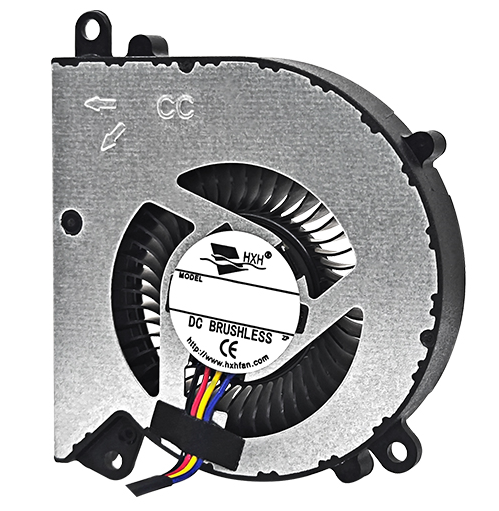

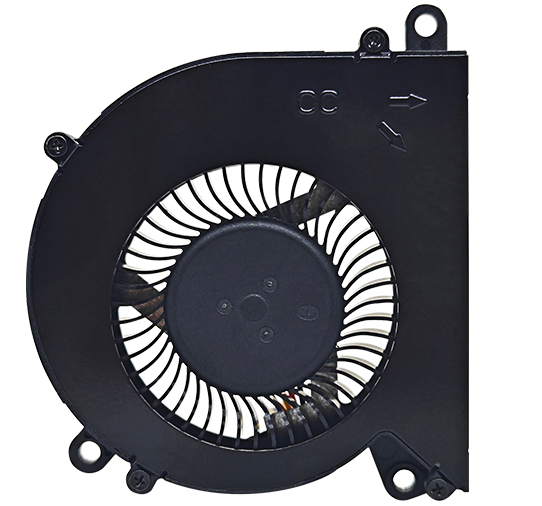

Size: 60x60x10mm
Material: Environmental protection and fire protection PBT UL 94V-0
Operating voltage: 5V 12V
Bearing structure:  Hydraulic Bearing
Product life: 40,000 hours
Output function: FG function  RD function
Operating temperature: -10℃ ~70℃
Storage temperature: -40℃ ~75℃

规格

Size(mm) 60X60X10mm
Rated voltage: 5V,12V
Click for Inqueries
Click to Download pdf

60×60×10MM
Model Bearing Rated Voltage Startup Voltage Current Power Speed Air Flow Static Pressure Noise
Part NO. Function System VDC VDC A W RPM M3/min CFM mmH2O INH2O dBA
HBH0605HG   Hydraulic 5 4.0 0.40 2.00 5000 0.20 7.15 16.87 0.66 36.9
Bearing Type:S=Sleeve  Bearing   H=Hydraulic Bearing   B=Two Ball Bearing   C=One Ball  One Sleeve  Bearing
