Product introduction:

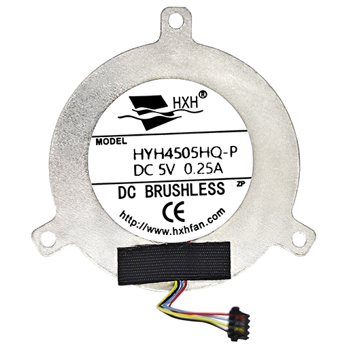

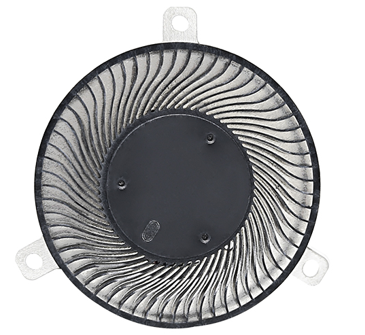

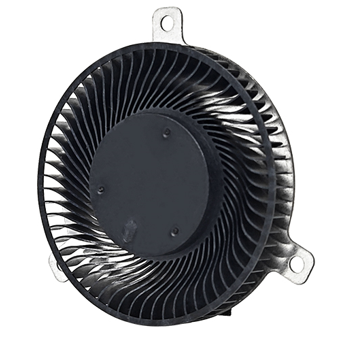

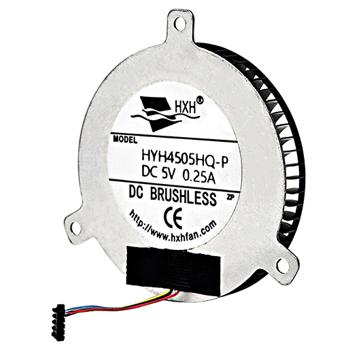

| Size: | 40x40x07mm-2 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Oil-impregnated bearings Ball bearings |
| Product life: | 30,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

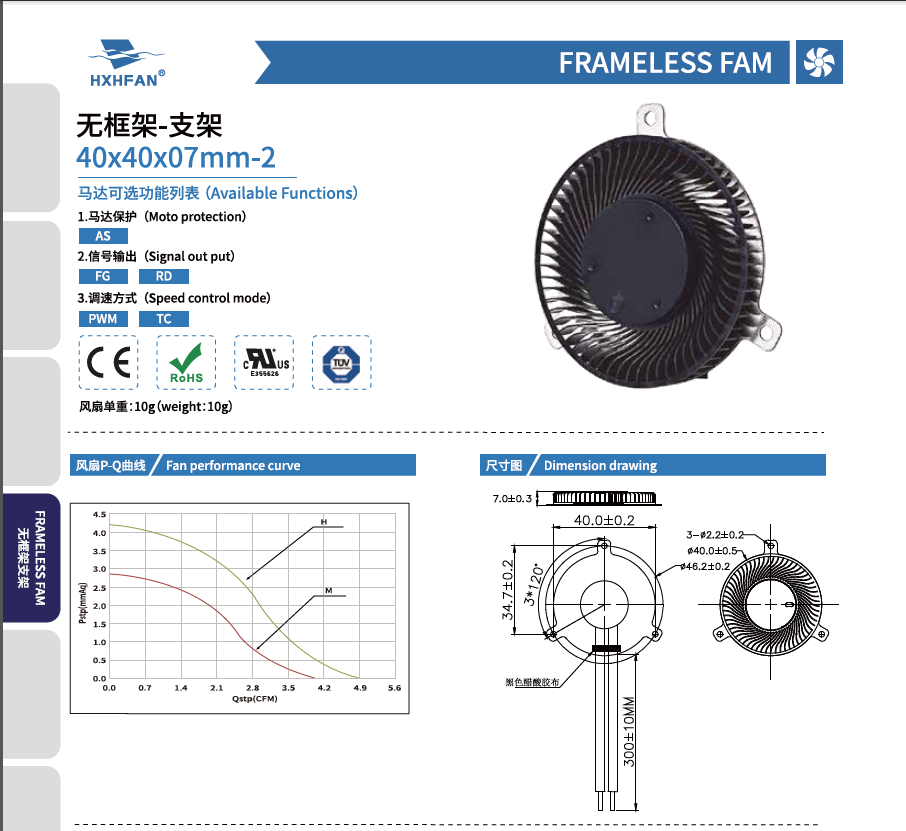

| 40*40*07MM-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HYH0405HQ-2 | Hydraulic | 5 | 4.5 | 0.29 | 1.45 | 5100 | 0.14 | 4.90 | 4.20 | 0.17 | 35.5 | |
| HYH0405MQ-2 | Hydraulic | 5 | 4.5 | 0.22 | 1.10 | 4200 | 0.11 | 4.00 | 2.86 | 0.11 | 31.3 | |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
