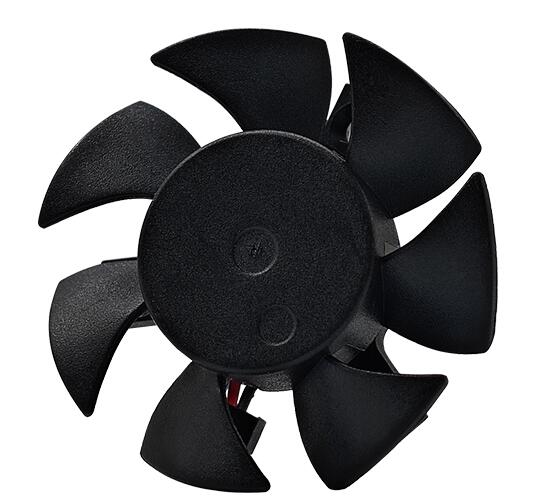

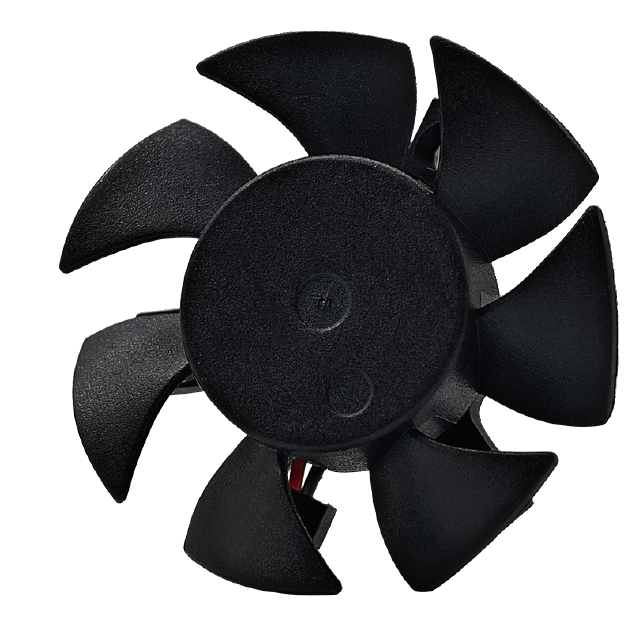

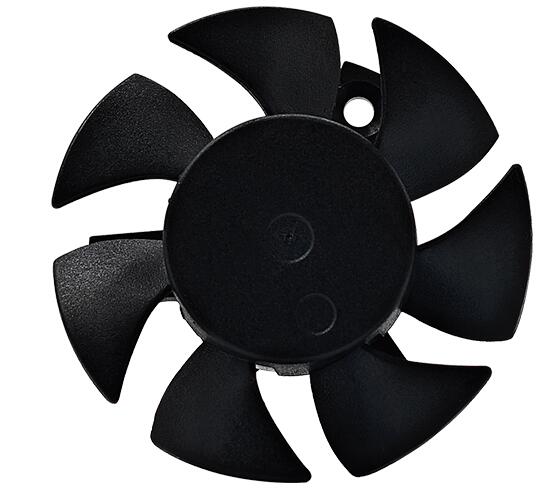

Product introduction:
| Size: | 35x35x10mm-2 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | SLEEVE BEARING TWO BALL BEARING |
| Product life: | 30,000 hours 70,000hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

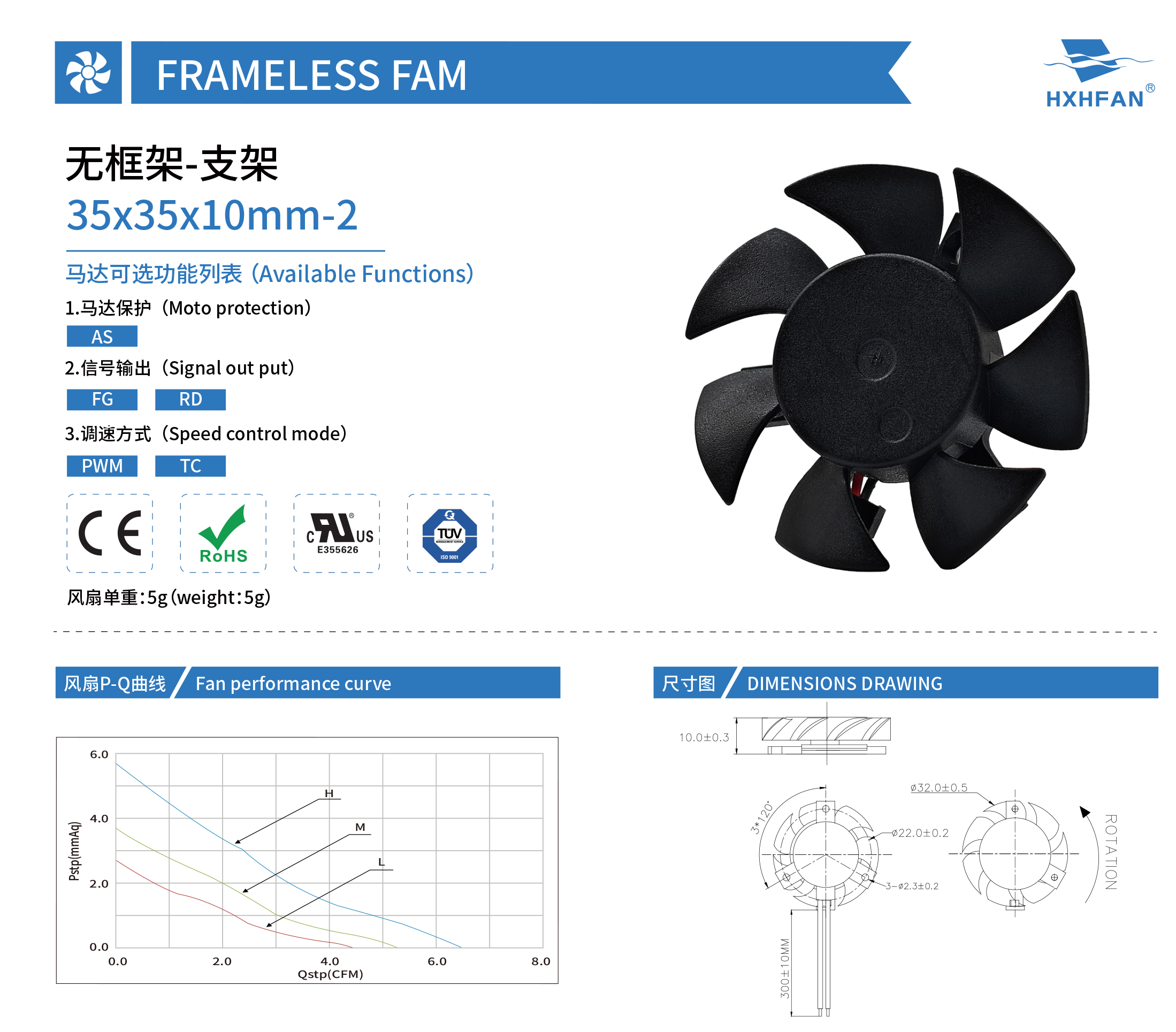

| 35×35×10MM-2（7叶） | ||||||||||||
| Model | BearinG-2 | Rated VoltaG-2e | Startup VoltaG-2e | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HYH3505HG-2 | Hydraulic | 5 | 4.0 | 0.28 | 1.40 | 11000 | 0.14 | 5.09 | 6.22 | 0.24 | 42.9 | |
| HYH3505MG-2 | 4.0 | 0.23 | 1.15 | 9000 | 0.12 | 4.08 | 4.30 | 0.17 | 35.3 | |||

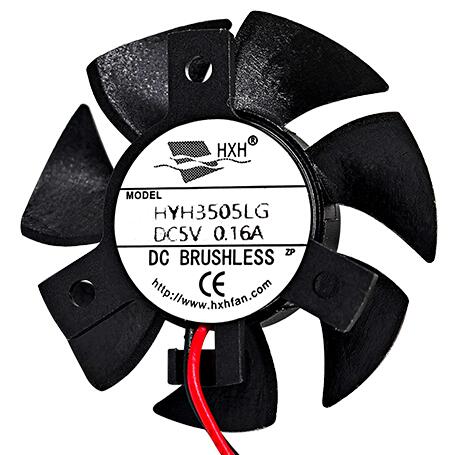

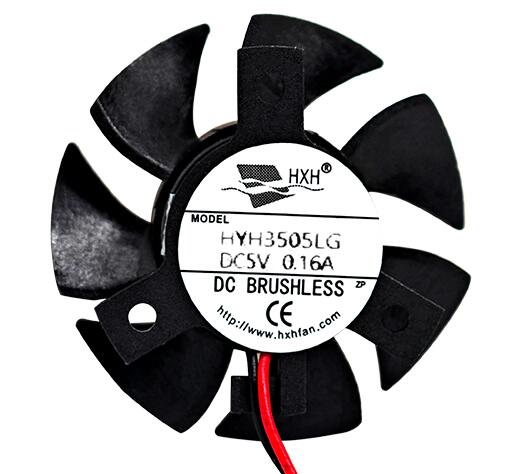

| HYH3505LG-2 | 4.0 | 0.16 | 0.80 | 7000 | 0.09 | 3.16 | 2.71 | 0.11 | 28.8 | |||
| HYB3505HG-2 | Ball | 4.0 | 0.28 | 1.40 | 11000 | 0.14 | 5.09 | 6.22 | 0.24 | 42.9 | ||
| HYB3505MG-2 | 4.0 | 0.23 | 1.15 | 9000 | 0.12 | 4.08 | 4.30 | 0.17 | 35.3 | |||
| HYB3505LG-2 | 4.0 | 0.16 | 0.80 | 7000 | 0.09 | 3.16 | 2.71 | 0.11 | 28.8 | |||
| HYH3512HG-2 | Hydraulic | 12 | 9.0 | 0.16 | 1.92 | 11000 | 0.14 | 5.09 | 6.22 | 0.24 | 42.9 | |
| HYH3512MG-2 | 9.0 | 0.12 | 1.44 | 9000 | 0.12 | 4.08 | 4.30 | 0.17 | 35.3 | |||
| HYH3512LG-2 | 9.0 | 0.10 | 1.20 | 7000 | 0.09 | 3.16 | 2.71 | 0.11 | 28.8 | |||
| HYB3512HG-2 | Ball | 9.0 | 0.16 | 1.92 | 11000 | 0.14 | 5.09 | 6.22 | 0.24 | 42.9 | ||
| HYB3512MG-2 | 9.0 | 0.12 | 1.44 | 9000 | 0.12 | 4.08 | 4.30 | 0.17 | 35.3 | |||
| HYB3512LG-2 | 9.0 | 0.10 | 1.20 | 7000 | 0.09 | 3.16 | 2.71 | 0.11 | 28.8 | |||
| HYH3524HG-2 | Hydraulic | 24 | 12.0 | 0.10 | 2.40 | 11000 | 0.14 | 5.09 | 6.22 | 0.24 | 42.9 | |
| HYH3524MG-2 | 12.0 | 0.08 | 1.92 | 9000 | 0.12 | 4.08 | 4.30 | 0.17 | 35.3 | |||
| HYH3524LG-2 | 12.0 | 0.06 | 1.44 | 7000 | 0.09 | 3.16 | 2.71 | 0.11 | 28.8 | |||
| HYB3524HG-2 | Ball | 12.0 | 0.10 | 2.40 | 11000 | 0.14 | 5.09 | 6.22 | 0.24 | 42.9 | ||
| HYB3524MG-2 | 12.0 | 0.08 | 1.92 | 9000 | 0.12 | 4.08 | 4.30 | 0.17 | 35.3 | |||
| HYB3524LG-2 | 12.0 | 0.06 | 1.44 | 7000 | 0.09 | 3.16 | 2.71 | 0.11 | 28.8 | |||
| BearinG-2 Type:S=Sleeve BearinG-2 H=Hydraulic BearinG-2 B=Two Ball BearinG-2 C=One Ball One Sleeve BearinG-2 | ||||||||||||
