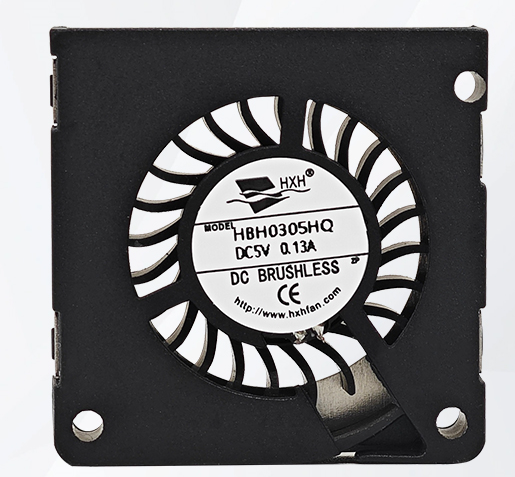

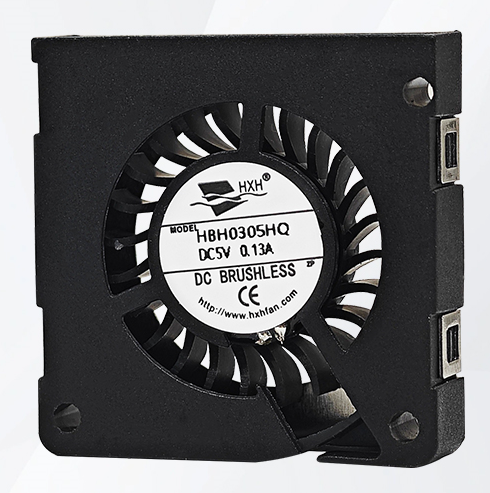

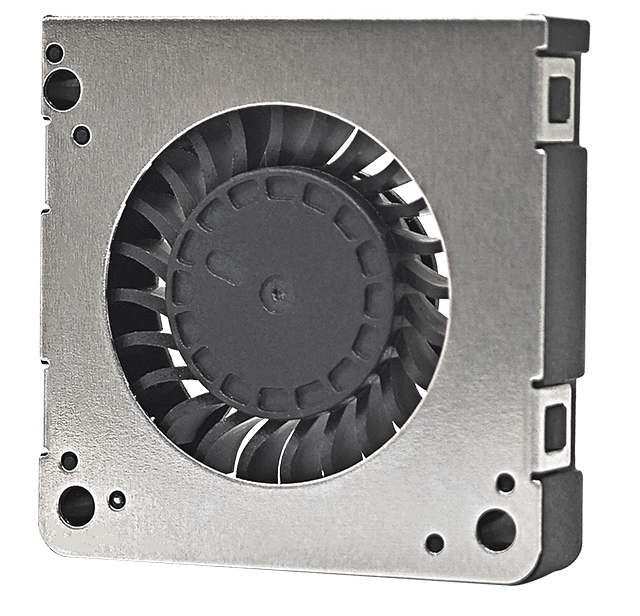

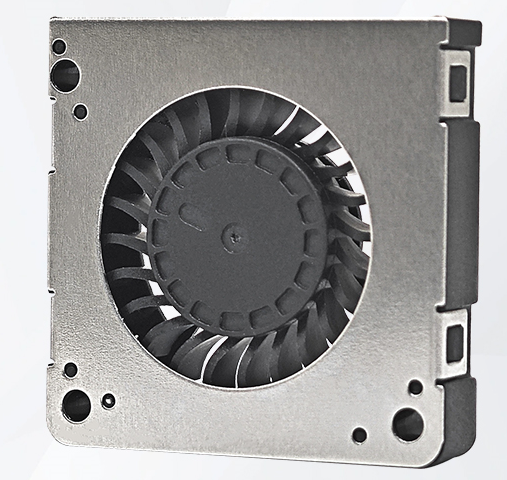

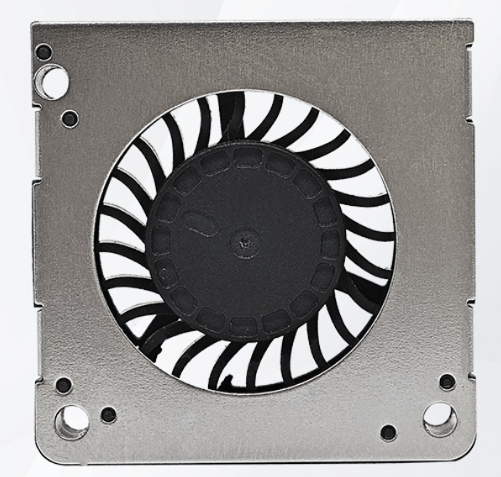

Product introduction:
| Size: | 30x30x07mm-2 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V |
| Bearing structure: | Hydraulic bearing |
| Product life: | 40,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

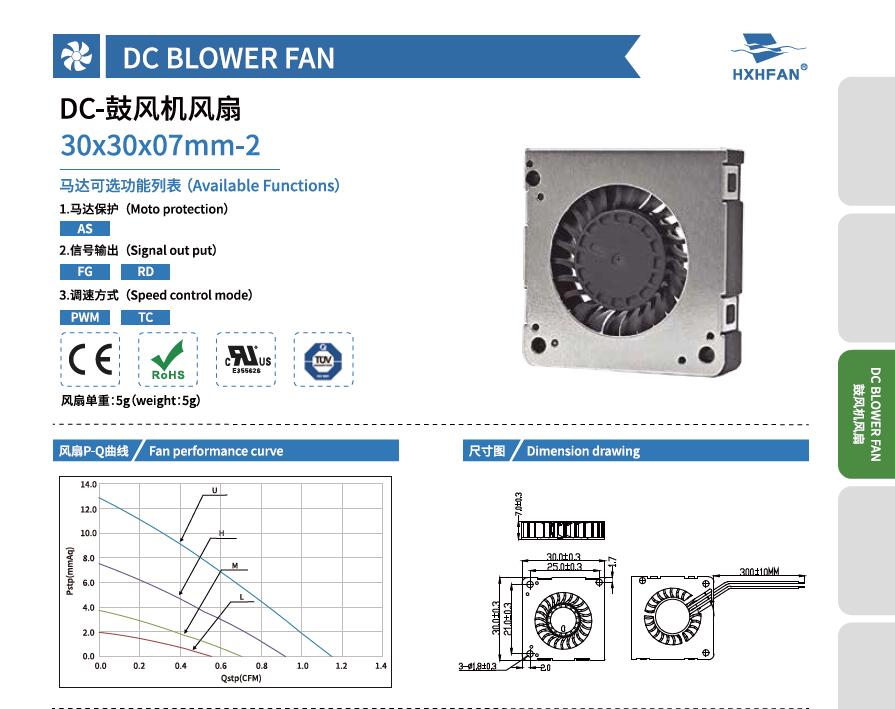

| 30*30*07MM-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBH0305UQ-2 | -A | Hydraulic | 5 | 4.0 | 0.25 | 1.25 | 8000 | 0.03 | 1.14 | 12.83 | 0.51 | 26.8 |
| HBH0305HQ-2 | 4.0 | 0.18 | 0.90 | 6500 | 0.03 | 0.92 | 7.50 | 0.30 | 22.4 | |||
| HBH0305MQ-2 | 4.0 | 0.13 | 0.65 | 5000 | 0.02 | 0.70 | 3.67 | 0.14 | 16.3 | |||
| HBH0305LQ-2 | 4.0 | 0.09 | 0.45 | 4000 | 0.02 | 0.55 | 1.98 | 0.08 | 12.8 | |||
| HBH0312UQ-2 | -A | Hydraulic | 12 | 6.0 | 0.18 | 2.16 | 8000 | 0.03 | 1.14 | 12.83 | 0.51 | 26.8 |
| HBH0312HQ-2 | 6.0 | 0.13 | 1.56 | 6500 | 0.03 | 0.92 | 7.50 | 0.30 | 22.4 | |||
| HBH0312MQ-2 | 6.0 | 0.09 | 1.08 | 5000 | 0.02 | 0.70 | 3.67 | 0.14 | 16.3 | |||
| HBH0312LQ-2 | 6.0 | 0.06 | 0.72 | 4000 | 0.02 | 0.55 | 1.98 | 0.08 | 12.8 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
