Product introduction:

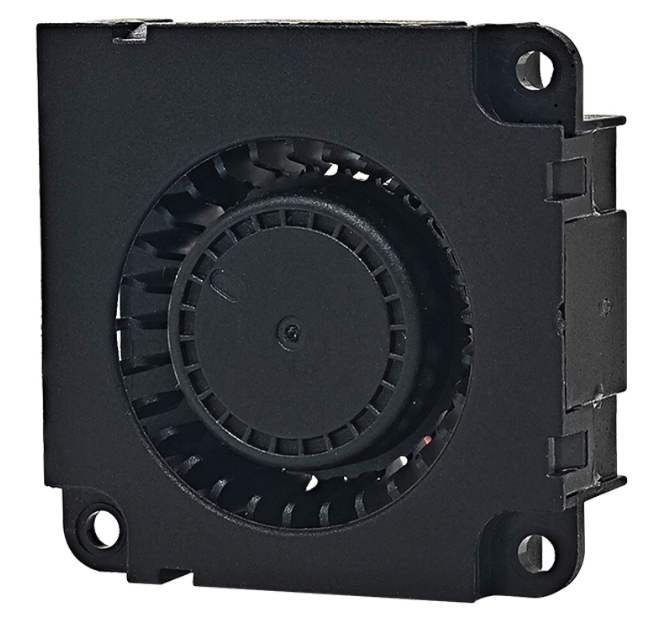

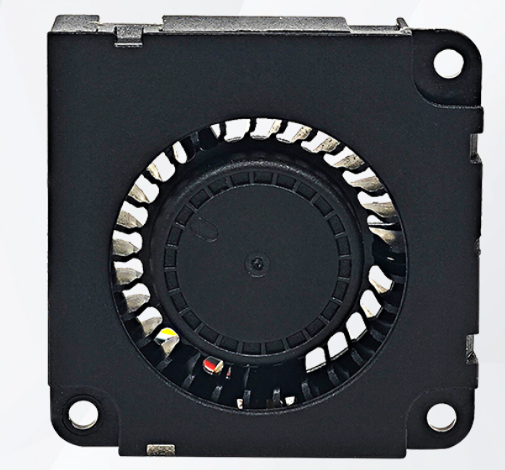

Size: 35x35x12mm
Material: Environmental protection and fire protection PBT UL 94V-0
Operating voltage: 5V 12V 24V
Bearing structure: Two ball bearings
Product life: 40,000 hours 70,000 hours
Output function: FG function  RD function PWM function
Operating temperature: -10℃ ~70℃
Storage temperature: -40℃ ~75℃
Click for Inqueries
Click to Download pdf

35*35*12MM

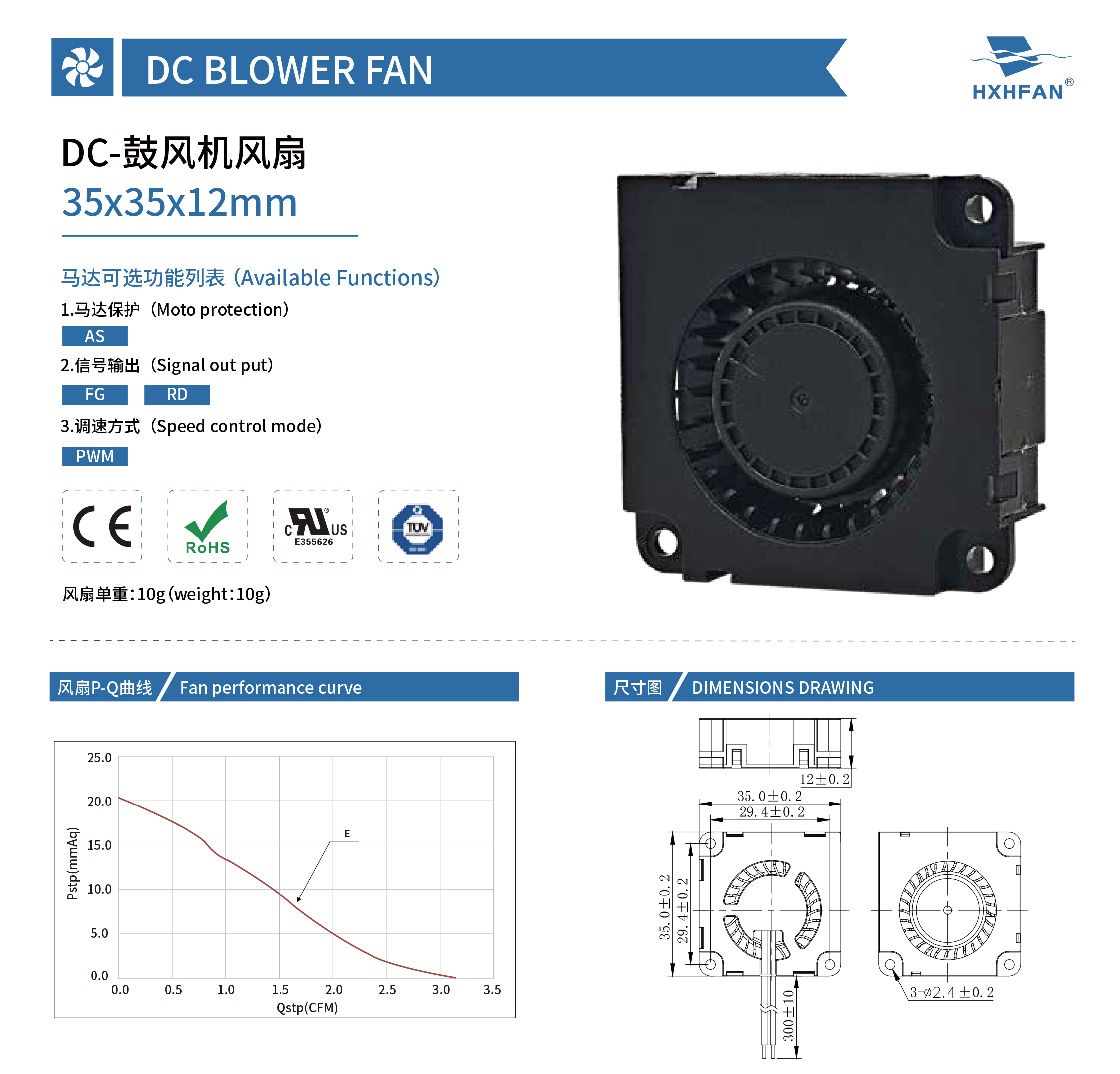

Model Bearing Rated Voltage Startup Voltage Current Power Speed Air Flow Static Pressure Noise
Part NO. Function System VDC VDC A W RPM M3/min CFM mmH2O INH2O dBA

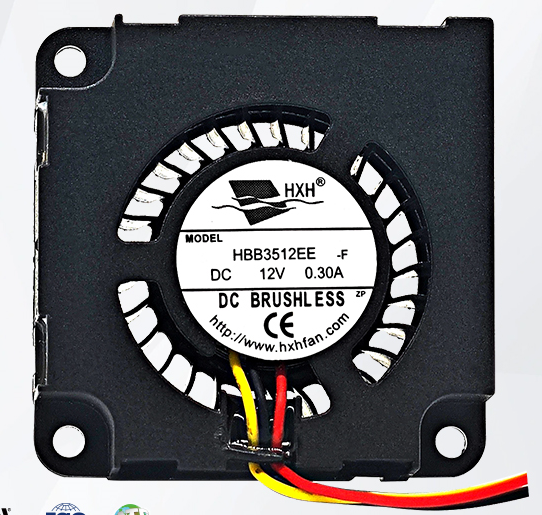

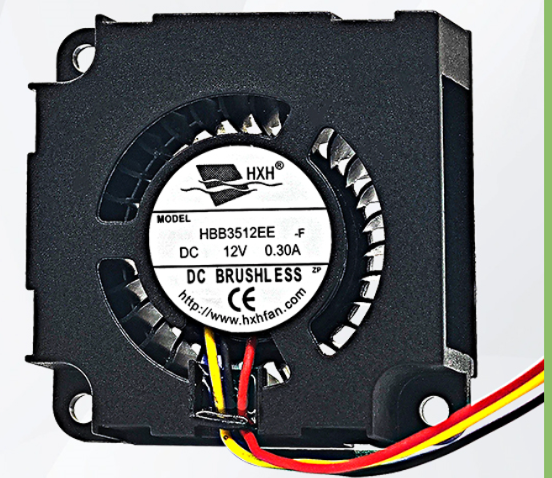

HBB3512EE   Ball 12 6.0 0.30 3.60 9800 0.09 3.07 21.26 0.84 38.9
Bearing Type:S=Sleeve  Bearing   H=Hydraulic Bearing   B=Two Ball Bearing   C=One Ball  One Sleeve  Bearing
