Product introduction:
| Size: | 60x60x20-2mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Sleeve Bearing Or tWO Ball Bearing |
| Product life: | 30,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

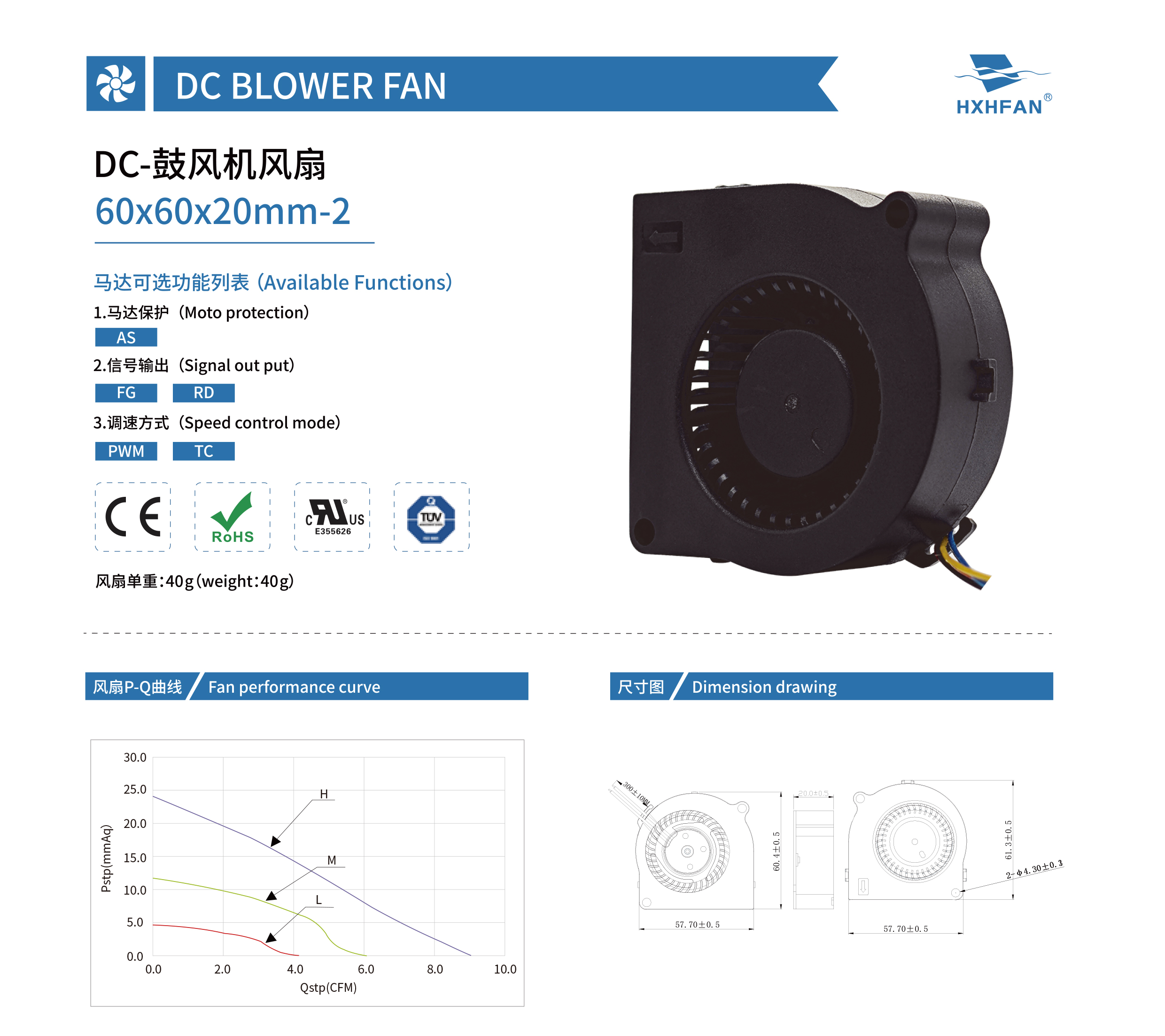

| 60*60*20-2mm | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBS0612HC-2 | Sleeve | 12 | 5.0 | 0.32 | 3.84 | 4500 | 0.17 | 6.10 | 11.75 | 0.46 | 39.5 | |
| HBS0612MC-2 | 5.0 | 0.24 | 2.88 | 3700 | 0.13 | 4.75 | 6.68 | 0.26 | 32.6 | |||
| HBS0612LC-2 | 5.0 | 0.18 | 2.16 | 3200 | 0.12 | 4.12 | 4.67 | 0.18 | 28.1 | |||

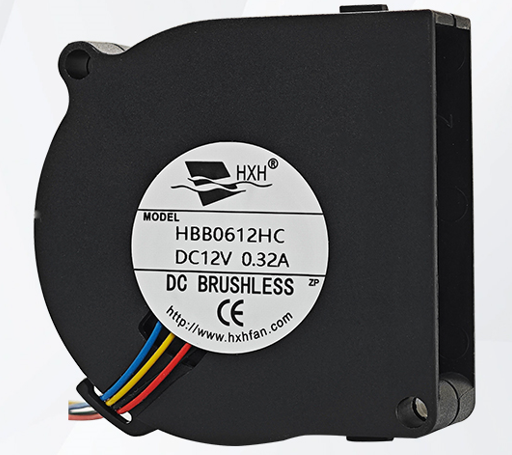

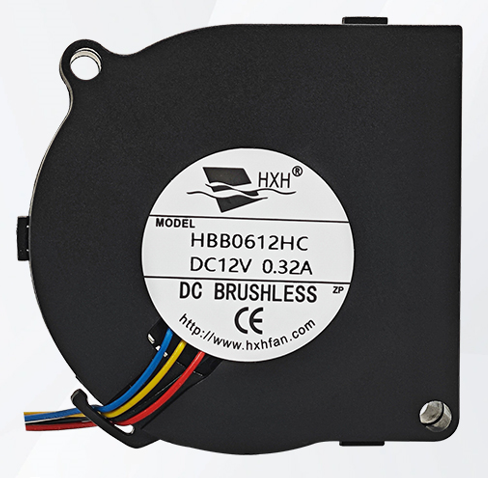

| HBB0612HC-2 | Ball | 5.0 | 0.32 | 3.84 | 4500 | 0.17 | 6.10 | 11.75 | 0.46 | 39.5 | ||
| HBB0612MC-2 | 5.0 | 0.24 | 2.88 | 3700 | 0.13 | 4.75 | 6.68 | 0.26 | 32.6 | |||
| HBB0612LC-2 | 5.0 | 0.18 | 2.16 | 3200 | 0.12 | 4.12 | 4.67 | 0.18 | 28.1 | |||
| HBS0624HC-2 | Sleeve | 24 | 12.0 | 0.20 | 4.80 | 4500 | 0.17 | 6.10 | 11.75 | 0.46 | 39.5 | |
| HBS0624MC-2 | 12.0 | 0.15 | 3.60 | 3700 | 0.13 | 4.75 | 6.68 | 0.26 | 32.6 | |||
| HBS0624LC-2 | 12.0 | 0.11 | 2.64 | 3200 | 0.12 | 4.12 | 4.67 | 0.18 | 28.1 | |||
| HBB0624HC-2 | Ball | 12.0 | 0.20 | 4.80 | 4500 | 0.17 | 6.10 | 11.75 | 0.46 | 39.5 | ||
| HBB0624MC-2 | 12.0 | 0.15 | 3.60 | 3700 | 0.13 | 4.75 | 6.68 | 0.26 | 32.6 | |||
| HBB0624LC-2 | 12.0 | 0.11 | 2.64 | 3200 | 0.12 | 4.12 | 4.67 | 0.18 | 28.1 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
