Product introduction:
| Size: | 50x50x10mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V |
| Bearing structure: | Hydraulic bearing or TWO BEARING |
| Product life: | 40,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

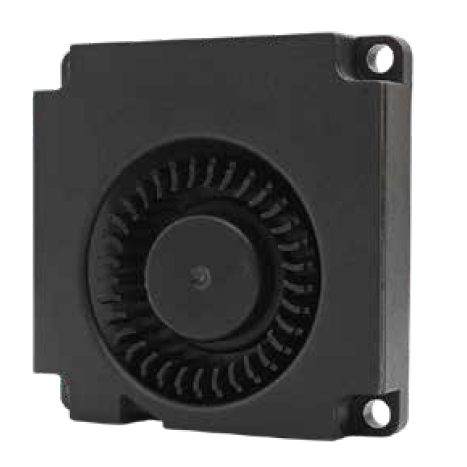

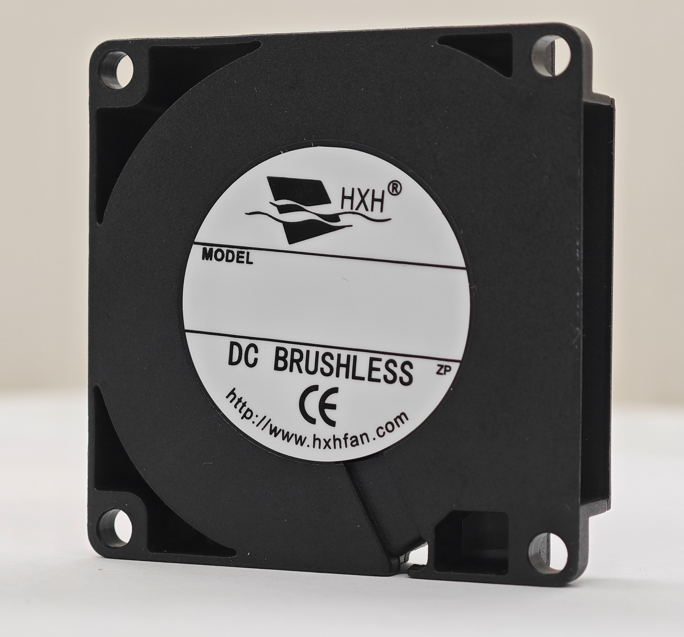

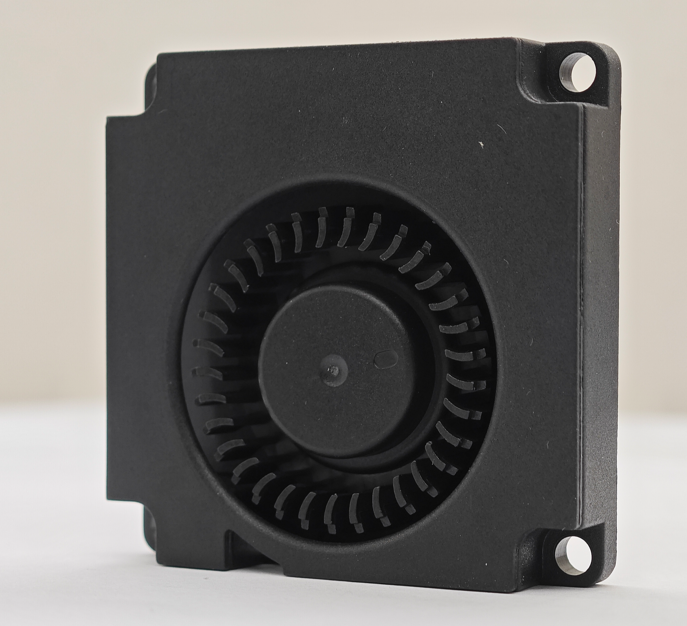

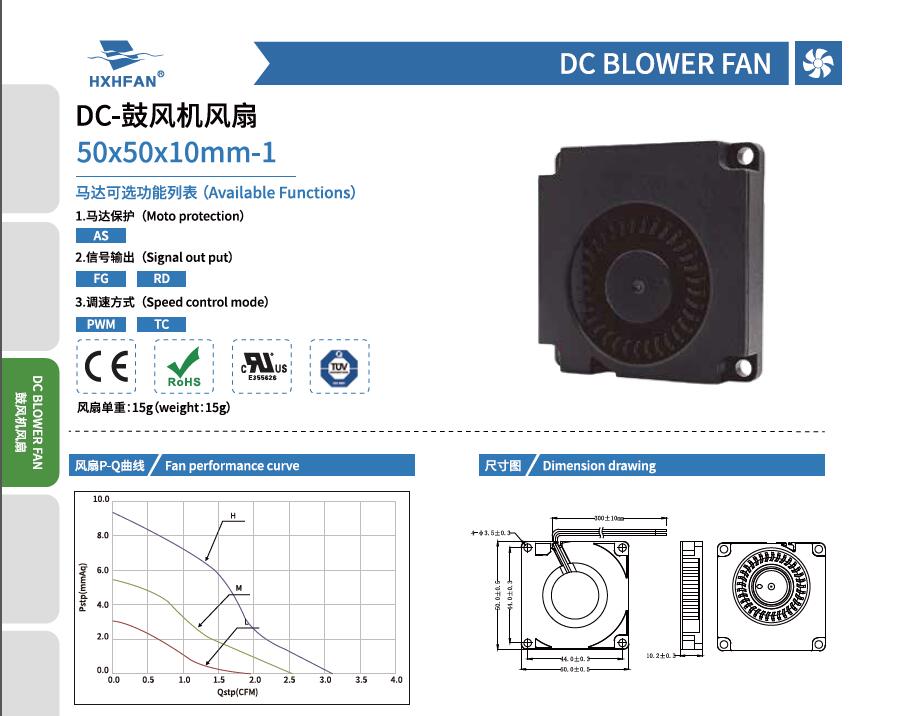

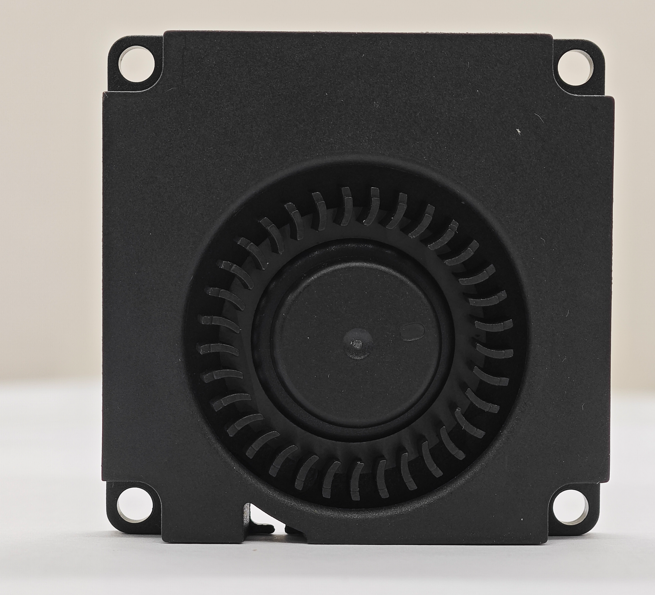

| 50*50*10mm | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBS0505HG | Sleeve | 5 | 4.0 | 0.18 | 0.90 | 5500 | 0.09 | 3.12 | 9.41 | 0.37 | 31.4 | |
| HBS0505MG | 4.0 | 0.11 | 0.55 | 4500 | 0.07 | 2.55 | 5.48 | 0.22 | 27.4 | |||
| HBS0505LG | 4.0 | 0.07 | 0.35 | 3500 | 0.05 | 1.94 | 3.05 | 0.12 | 20.8 | |||
| HBB0505HG | Ball | 4.0 | 0.18 | 0.90 | 5500 | 0.09 | 3.12 | 9.41 | 0.37 | 31.4 | ||
| HBB0505MG | 4.0 | 0.11 | 0.55 | 4500 | 0.07 | 2.55 | 5.48 | 0.22 | 27.4 | |||
| HBB0505LG | 4.0 | 0.07 | 0.35 | 3500 | 0.05 | 1.94 | 3.05 | 0.12 | 20.8 | |||
| HBS0512HG | Sleeve | 12 | 4.0 | 0.09 | 1.08 | 5500 | 0.09 | 3.12 | 9.41 | 0.37 | 31.4 | |
| HBS0512MG | 4.0 | 0.07 | 0.84 | 4500 | 0.07 | 2.55 | 5.48 | 0.22 | 27.4 | |||
| HBS0512LG | 4.0 | 0.05 | 0.60 | 3500 | 0.05 | 1.94 | 3.05 | 0.12 | 20.8 | |||
| HBB0512HG | Ball | 6.0 | 0.09 | 1.08 | 5500 | 0.09 | 3.12 | 9.41 | 0.37 | 31.4 | ||
| HBB0512MG | 6.0 | 0.07 | 0.84 | 4500 | 0.07 | 2.55 | 5.48 | 0.22 | 27.4 | |||
| HBB0512LG | 6.0 | 0.05 | 0.60 | 3500 | 0.05 | 1.94 | 3.05 | 0.12 | 20.8 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
