Product introduction:

Size: 92x92x38mm-2
Material: Environmental protection and fire protection PBT UL 94V-0
Operating voltage: 5V 12V 24V
Bearing structure: Ball bearing
Product life:  70,000 hours
Output function: FG function  RD function PWM function
Operating temperature: -10℃ ~70℃
Storage temperature: -40℃ ~75℃
Click for Inqueries
Click to Download pdf

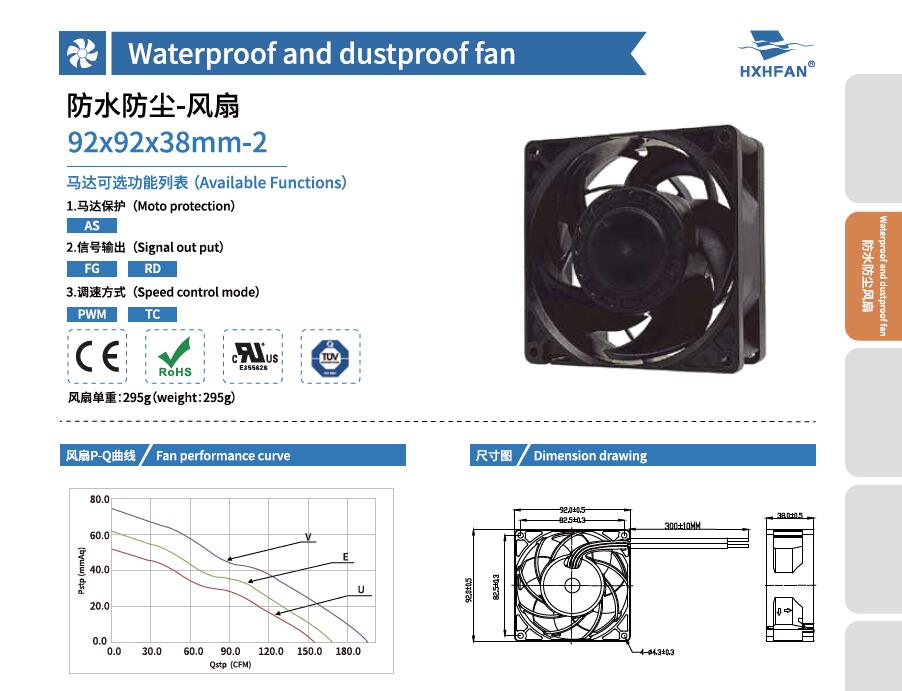

92×92×38-2MM
Model Bearing Rated Voltage Startup Voltage Current Power Speed Air Flow Static Pressure Noise
Part No. Function System VDC VDC A W RPM m3/min CFM mmH2O INH2O dBA

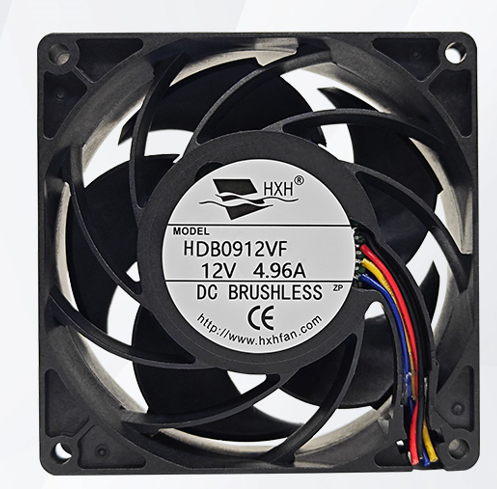

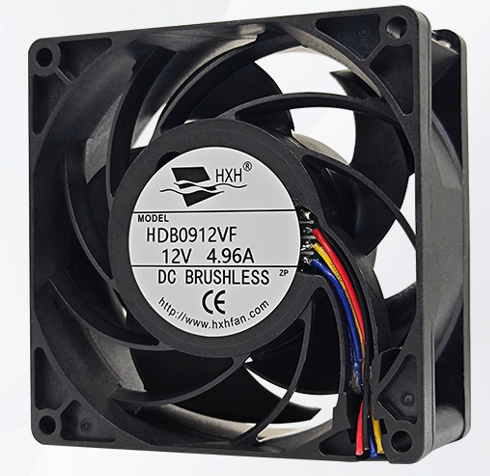

HDB0912VF-2 IP68 Ball 12 6.0 4.96 59.52 13000 5.20 185.70 73.76 2.90 71.8
HDB0912EF-2 IP68 6.0 4.00 48.00 12000 4.76 170.00 61.85 2.44 70.0
HDB0912UF-2 IP68 6.0 3.20 38.40 11000 4.37 155.90 51.97 2.05 68.0
HDB0924VF-2 IP68 Ball 24 12.0 2.48 59.52 13000 5.20 185.70 73.76 2.90 71.8
HDB0924EF-2 IP68 12.0 2.00 48.00 12000 4.76 170.00 61.85 2.44 70.0
HDB0924UF-2 IP68 12.0 1.60 38.40 11000 4.37 155.90 51.97 2.05 68.0
HDB0948VF-2 IP68 Ball 48 24.0 1.24 59.52 13000 5.20 185.70 73.76 2.90 71.8
HDB0948EF-2 IP68 24.0 1.00 48.00 12000 4.76 170.00 61.85 2.44 70.0
HDB0948UF-2 IP68 24.0 0.80 38.40 11000 4.37 155.90 51.97 2.05 68.0
Bearing Type:S=Sleeve  Bearing   H=Hydraulic Bearing   B=Two Ball Bearing   C=One Ball  One Sleeve  Bearing
