Product introduction:
| Size: | 70x70x15mm-1 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | SLEEVE BEARING or two Ball Bearing |
| Product life: | 30,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

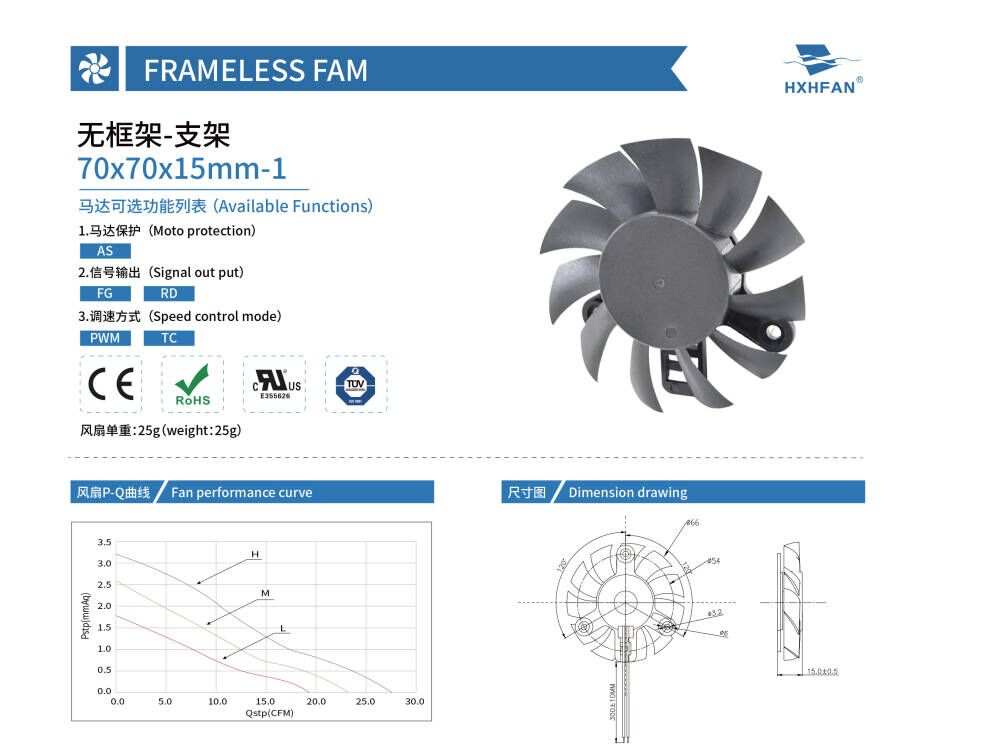

| 70*70*15MM-1(11叶） | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |

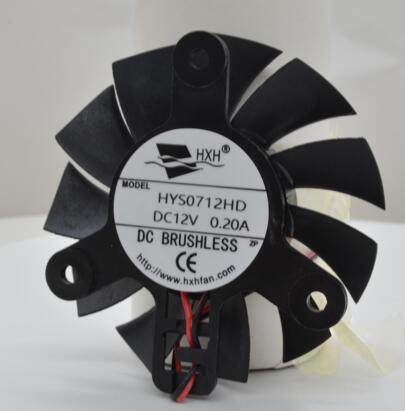

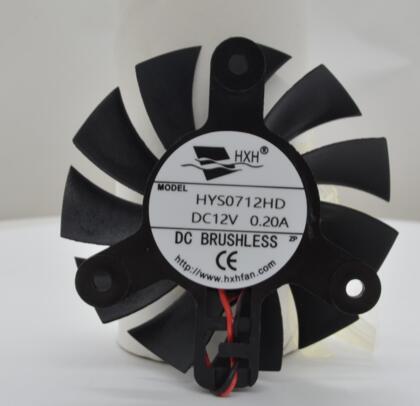

| HYS0712HD-1 | Sleeve | 12 | 6.0 | 0.16 | 1.92 | 3500 | 0.78 | 27.53 | 3.21 | 0.13 | 36.4 | |
| HYS0712MD-1 | 6.0 | 0.11 | 1.32 | 3000 | 0.66 | 23.20 | 2.60 | 0.10 | 33.9 | |||
| HYS0712LD-1 | 6.0 | 0.08 | 0.96 | 2500 | 0.55 | 19.33 | 1.81 | 0.07 | 29.9 | |||
| HYB0712HD-1 | Ball | 6.0 | 0.16 | 1.92 | 3500 | 0.78 | 27.53 | 3.21 | 0.13 | 36.4 | ||
| HYB0712MD-1 | 6.0 | 0.11 | 1.32 | 3000 | 0.66 | 23.20 | 2.60 | 0.10 | 33.9 | |||
| HYB0712LD-1 | 6.0 | 0.08 | 0.96 | 2500 | 0.55 | 19.33 | 1.81 | 0.07 | 29.9 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
