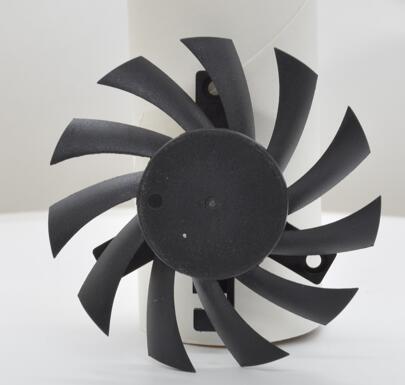

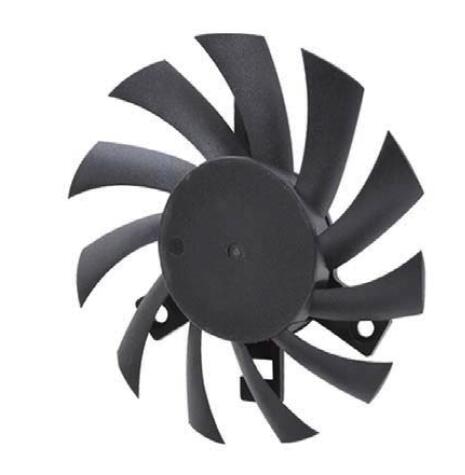

Product introduction:
| Size: | 70x70x10mm-1 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | SLEEVE BEARING or two Ball Bearing |
| Product life: | 30,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 70*70*10MM-1 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |

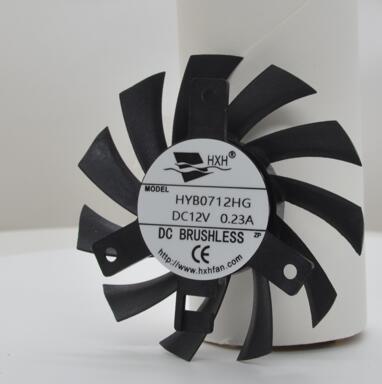

| HYB0712HG-1 | Sleeve /Ball | 12 | 6.0 | 0.21 | 2.52 | 3500 | 0.58 | 20.59 | 2.70 | 0.11 | 27.7 | |
| HYB0712MG-1 | 6.0 | 0.14 | 1.68 | 3000 | 0.42 | 15.00 | 1.71 | 0.07 | 24.2 | |||
| HYB0712LG-1 | 6.0 | 0.10 | 1.20 | 2500 | 0.35 | 12.36 | 1.09 | 0.04 | 21.1 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
