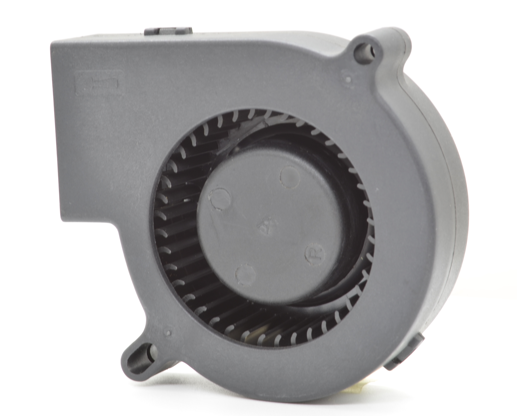

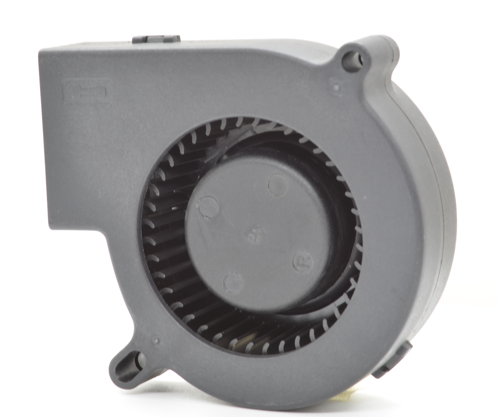

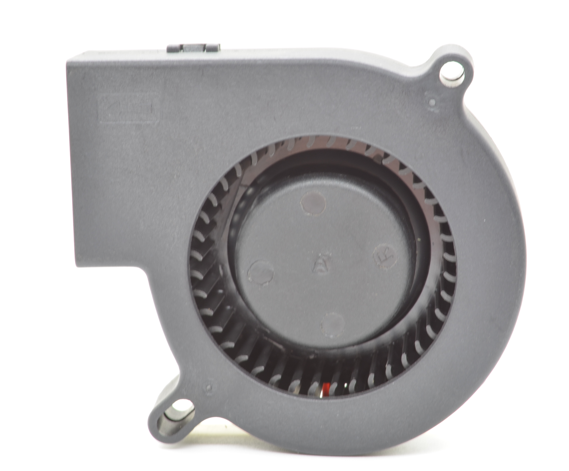

Product introduction:
| Size: | 75x75x25mm-1 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Oil Bearing Ball Bearing |
| Product life: | 30,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| Size（mm） | 75X75X25mm-1 |
|---|---|
| Rated voltage: | 12V，24V |

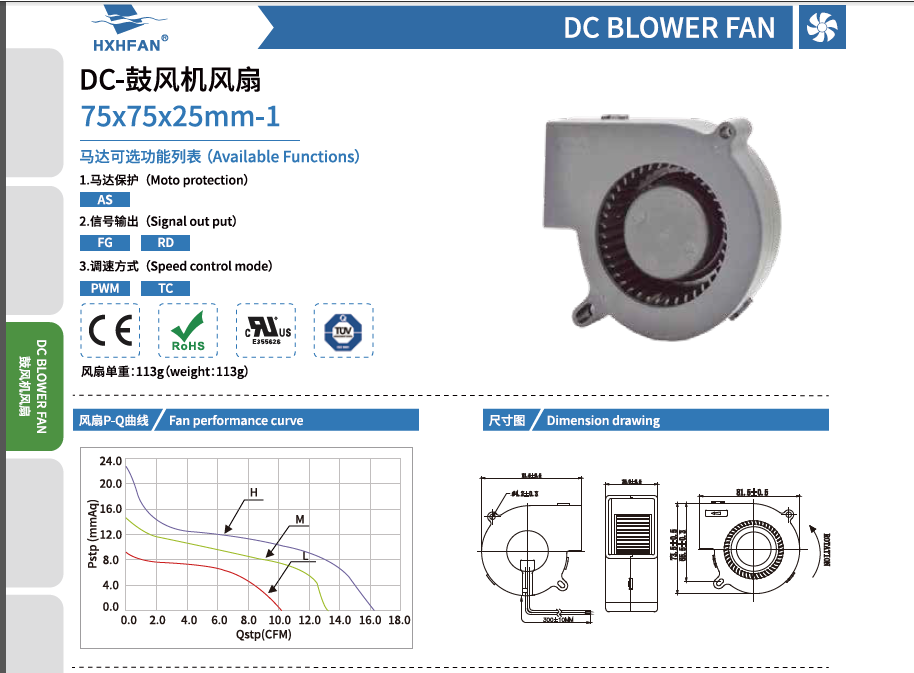

| 75×75×25-1MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBS7512HA-1 | -A | Sleeve | 12 | 5.0 | 0.40 | 4.80 | 4500 | 0.46 | 16.20 | 22.81 | 0.90 | 47.1 |
| HBS7512MA-1 | 5.0 | 0.30 | 3.60 | 3500 | 0.37 | 13.20 | 14.50 | 0.57 | 40.7 | |||
| HBS7512LA-1 | 5.0 | 0.20 | 2.40 | 2500 | 0.29 | 10.20 | 8.99 | 0.35 | 31.5 | |||

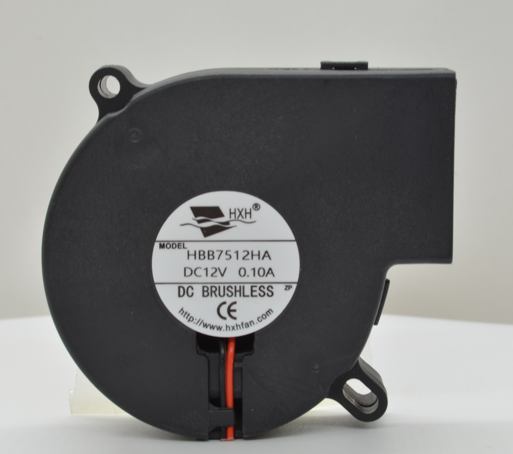

| HBB7512HA-1 | ball | 5.0 | 0.40 | 4.80 | 4500 | 0.46 | 16.20 | 22.81 | 0.90 | 47.1 | ||
| HBB7512MA-1 | 5.0 | 0.30 | 3.60 | 3500 | 0.37 | 13.20 | 14.50 | 0.57 | 40.7 | |||
| HBB7512LA-1 | 5.0 | 0.20 | 2.40 | 2500 | 0.29 | 10.20 | 8.99 | 0.35 | 31.5 | |||
| HBS7524HA-1 | -A | Sleeve | 24 | 12.0 | 0.35 | 8.40 | 4500 | 0.46 | 16.20 | 22.81 | 0.90 | 47.1 |
| HBS7524MA-1 | 12.0 | 0.25 | 6.00 | 3500 | 0.37 | 13.20 | 14.50 | 0.57 | 40.7 | |||
| HBS7524LA-1 | 12.0 | 0.15 | 3.60 | 2500 | 0.29 | 10.20 | 8.99 | 0.35 | 31.5 | |||
| HBB7524HA-1 | -A | ball | 12.0 | 0.35 | 8.40 | 4500 | 0.46 | 16.20 | 22.81 | 0.90 | 47.1 | |
| HBB7524MA-1 | 12.0 | 0.25 | 6.00 | 3500 | 0.37 | 13.20 | 14.50 | 0.57 | 40.7 | |||
| HBB7524LA-1 | 12.0 | 0.15 | 3.60 | 2500 | 0.29 | 10.20 | 8.99 | 0.35 | 31.5 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
