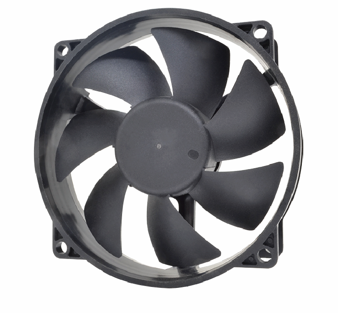

92x92x25mm

Product introduction:

Size:	92x92x25mm
Material:	Environmental protection and fire protection PBT UL 94V-0
Operating voltage:	5V 12V 24V
Bearing structure:	Hydraulic bearing or two ball
Product life:	40,000 hours 70,000 hours
Output function:	FG function RD function PWM function
Operating temperature:	-10℃ ~70℃
Storage temperature:	-40℃ ~75℃

Click for Inqueries

Click to Download pdf

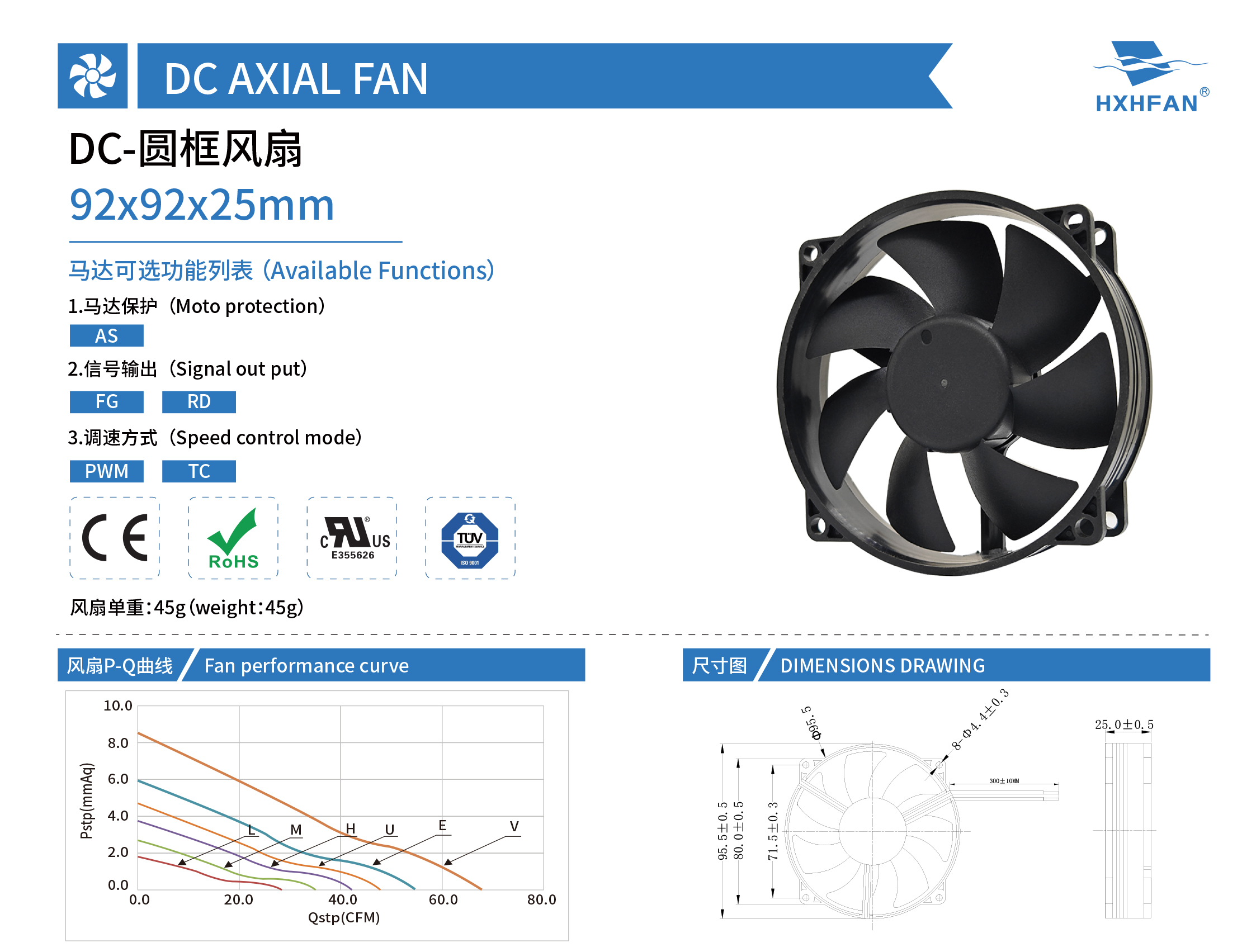

92×92×25MM圆框
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M³/min	CFM	mmH₂O	INH₂O	dBA
HDH0905HA	-A	Hydraulic	5	4.0	0.30	1.50	2800	1.15	40.79	3.51	0.14	35.5
HDH0905MA				4.0	0.25	1.25	2400	1.00	35.34	2.64	0.10	31.3
HDH0905LA				4.0	0.19	0.95	2000	0.85	29.89	1.91	0.08	28.4
HDB0905HA	-A	Ball		4.0	0.30	1.50	2800	1.15	40.79	3.51	0.14	35.5
HDB0905MA				4.0	0.25	1.25	2400	1.00	35.34	2.64	0.10	31.3
HDB0905LA				4.0	0.19	0.95	2000	0.85	29.89	1.91	0.08	28.4
HDH0912HA		Hydraulic	12	6.0	0.23	2.76	2800	1.15	40.79	3.51	0.14	35.5
HDH0912MA				6.0	0.19	2.28	2400	1.00	35.34	2.64	0.10	31.3
HDH0912LA				9.0	0.16	1.92	2000	0.85	29.89	1.91	0.08	28.4
HDB0912VA	-A	Ball		6.0	0.45	5.40	4200	1.77	62.52	7.06	0.28	47.5
HDB0912EA	-A			6.0	0.40	4.80	3800	1.53	53.96	5.55	0.22	44.3
HDB0912UA	-A			6.0	0.30	3.60	3200	1.32	46.71	4.28	0.17	39.7
HDB0912HA				6.0	0.23	2.76	2800	1.15	40.79	3.51	0.14	35.5
HDB0912MA				6.0	0.19	2.28	2400	1.00	35.34	2.64	0.10	31.3
HDB0912LA				9.0	0.16	1.92	2000	0.85	29.89	1.91	0.08	28.4
HDH0924HA		Hydraulic	24	12.0	0.11	2.64	3000	1.26	44.46	3.90	0.15	38.7
HDH0924MA				12.0	0.07	1.68	2500	1.04	36.84	2.80	0.11	33.0
HDH0924LA				18.0	0.05	1.20	2000	0.85	29.89	1.91	0.08	28.4
HDB0924UA	-A	Ball		12.0	0.13	3.12	3500	1.42	50.28	4.95	0.19	41.7
HDB0924HA				12.0	0.11	2.64	3000	1.26	44.46	3.90	0.15	38.7
HDB0924MA				12.0	0.07	1.68	2500	1.04	36.84	2.80	0.11	33.0
HDB0924LA				18.0	0.05	1.20	2000	0.85	29.89	1.91	0.08	28.4
HDH0948UA	-A	Hydraulic	48	24.0	0.11	5.28	3200	1.32	46.71	4.28	0.17	39.7
HDH0948HA				24.0	0.07	3.36	2800	1.15	40.79	3.51	0.14	35.5
HDH0948MA				24.0	0.05	2.40	2400	1.00	35.34	2.64	0.10	31.3
HDH0948LA				24.0	0.05	2.40	2000	0.85	29.89	1.91	0.08	28.4
HDB0948UA	-A	Ball		24.0	0.11	5.28	3200	1.32	46.71	4.28	0.17	39.7
HDB0948HA				24.0	0.07	3.36	2800	1.15	40.79	3.51	0.14	35.5
HDB0948MA				24.0	0.05	2.40	2400	1.00	35.34	2.64	0.10	31.3
HDB0948LA				24.0	0.05	2.40	2000	0.85	29.89	1.91	0.08	28.4
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing
