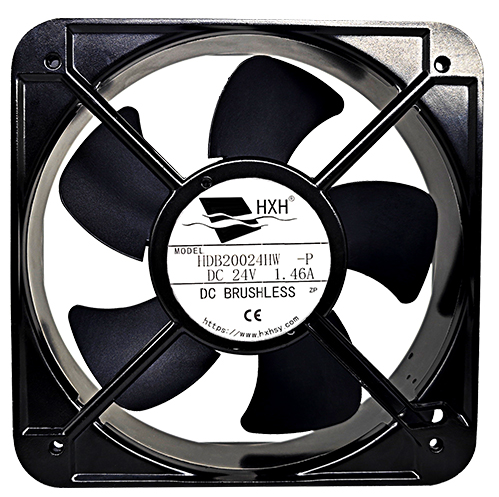

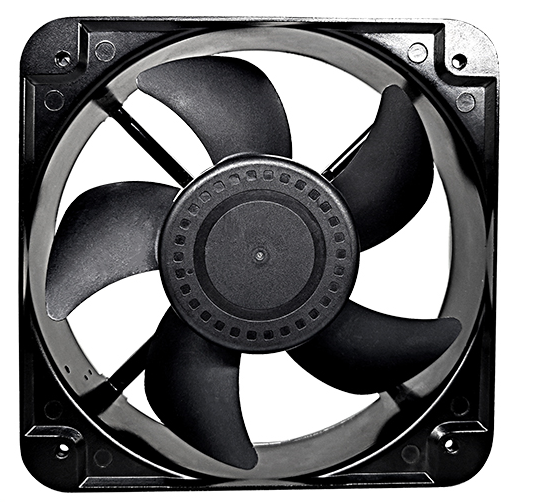

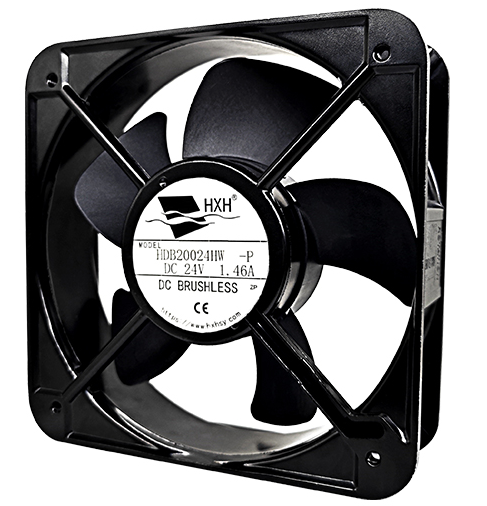

Product introduction:
| Size: | 200*200*60mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 12V 24V 48V |
| Bearing structure: | two Ball bearing |
| Product life: | 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

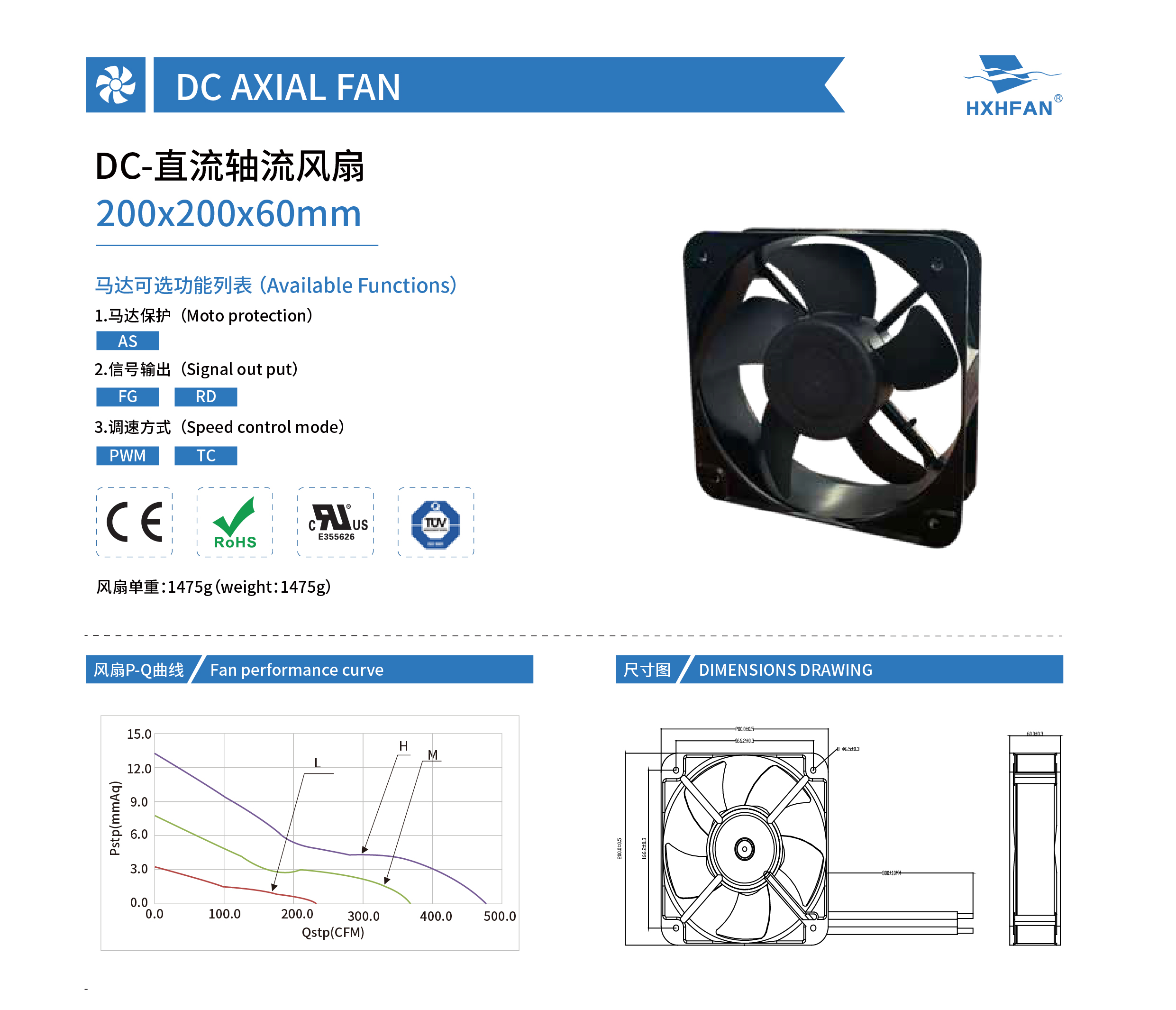

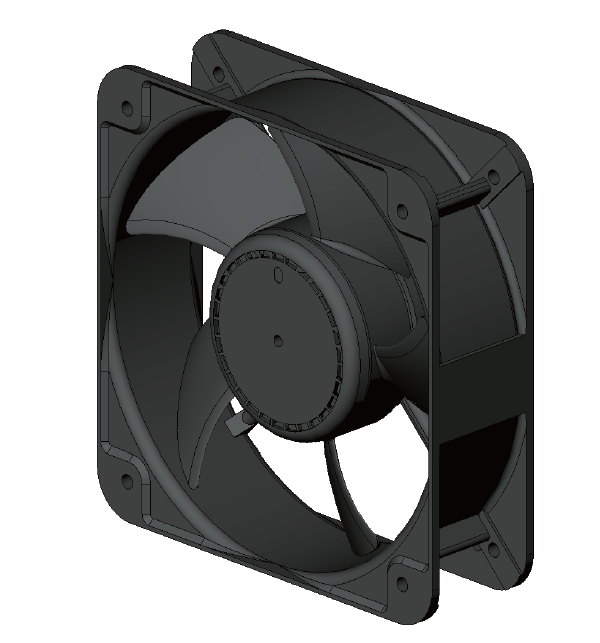

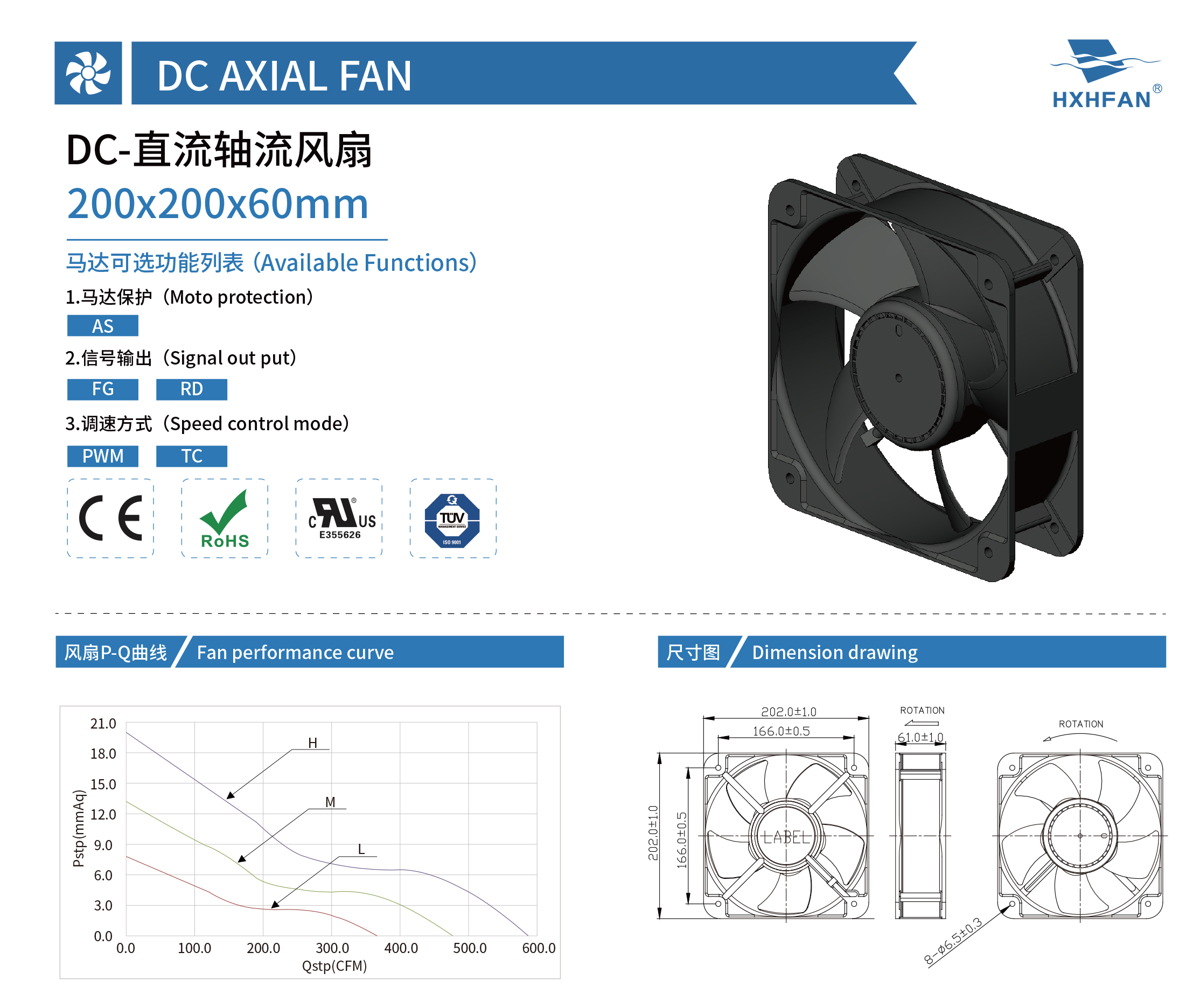

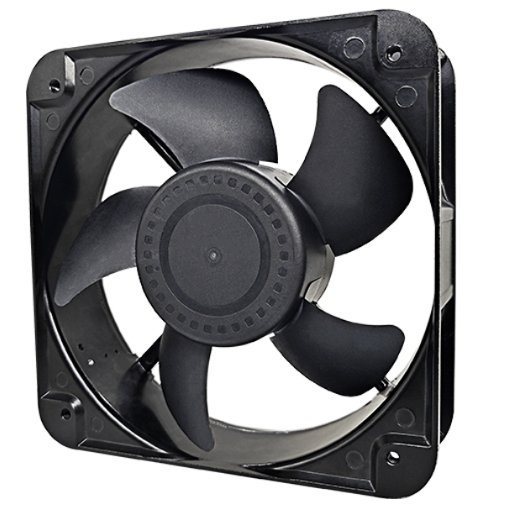

| 200×200×60MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB20024HW | -A | Ball | 24 | 18.0 | 3.20 | 76.80 | 3200 | 16.63 | 587.60 | 20.00 | 0.79 | 66.0 |
| HDB20024MW | -A | Ball | 18.0 | 1.46 | 35.04 | 2600 | 13.51 | 477.40 | 13.20 | 0.52 | 59.0 | |
| HDB20024LW | -A | Ball | 18.0 | 0.66 | 15.84 | 2000 | 10.39 | 367.30 | 7.80 | 0.31 | 52.0 | |
| HDB20048HW | -A | Ball | 48 | 24.0 | 1.60 | 76.80 | 3200 | 16.63 | 587.60 | 20.00 | 0.79 | 66.0 |
| HDB20048MW | -A | Ball | 24.0 | 0.73 | 35.04 | 2600 | 13.51 | 477.40 | 13.20 | 0.52 | 59.0 | |
| HDB20048LW | -A | Ball | 24.0 | 0.33 | 15.84 | 2000 | 10.39 | 367.30 | 7.80 | 0.31 | 52.0 | |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
