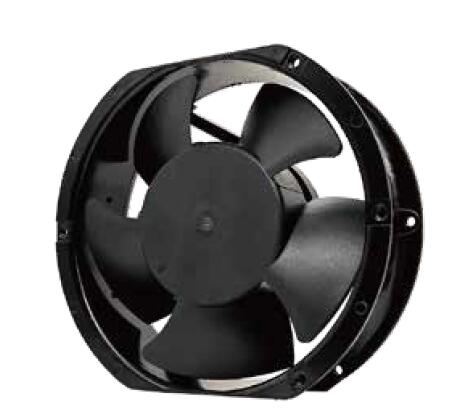

Product introduction:
| Size: | 172x150x51mm-2 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 12V 24V 48V |
| Bearing structure: | Oil Bearing Double Ball bearing |
| Product life: | 30,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

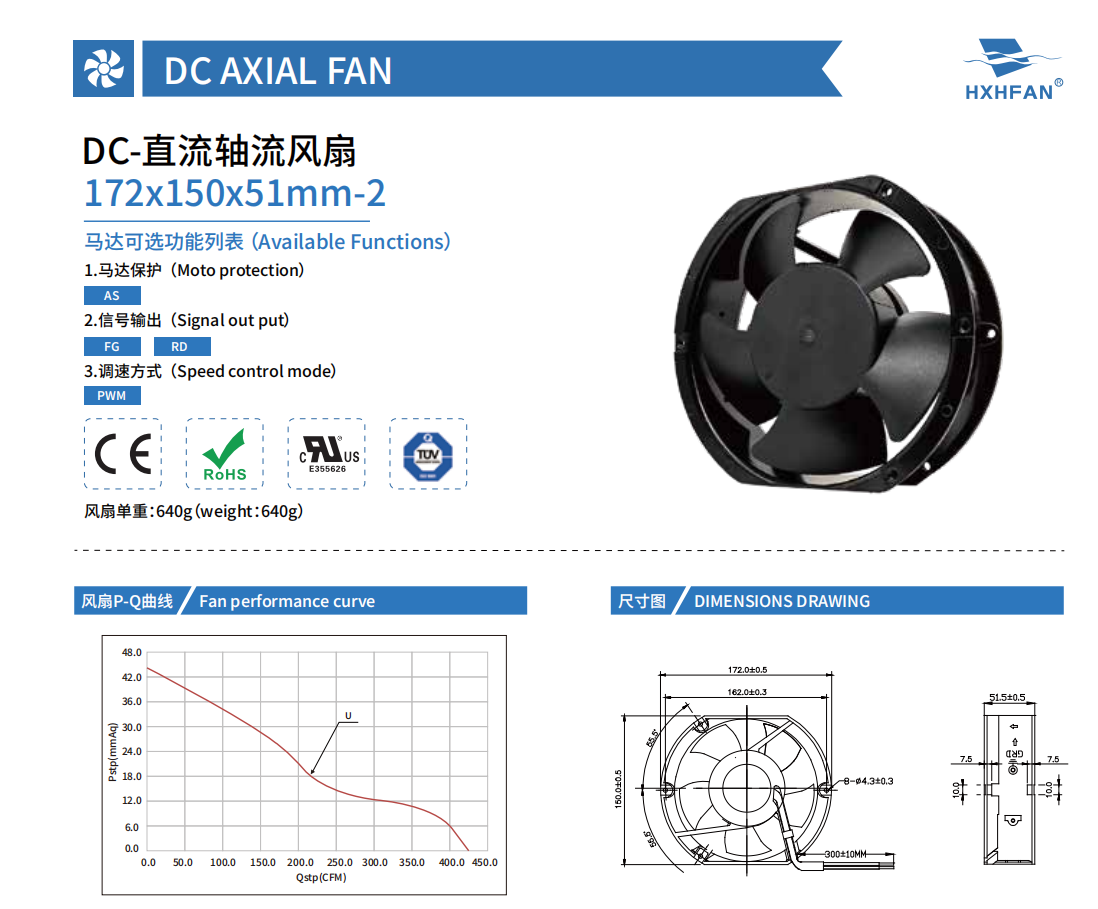

| 172*150*51MM-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB1712UU-2 | -A | Ball | 12 | 5.0 | 5.80 | 69.60 | 5400 | 12.02 | 424.8 | 44.5 | 1.75 | 68.3 |
| HDB1724UU-2 | -A | Ball | 24 | 12.0 | 2.70 | 64.80 | 5400 | 12.02 | 424.8 | 44.5 | 1.75 | 68.3 |
| HDB1748UU-2 | -A | Ball | 48 | 24.0 | 1.50 | 72.00 | 5400 | 12.02 | 424.8 | 44.5 | 1.75 | 68.3 |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
