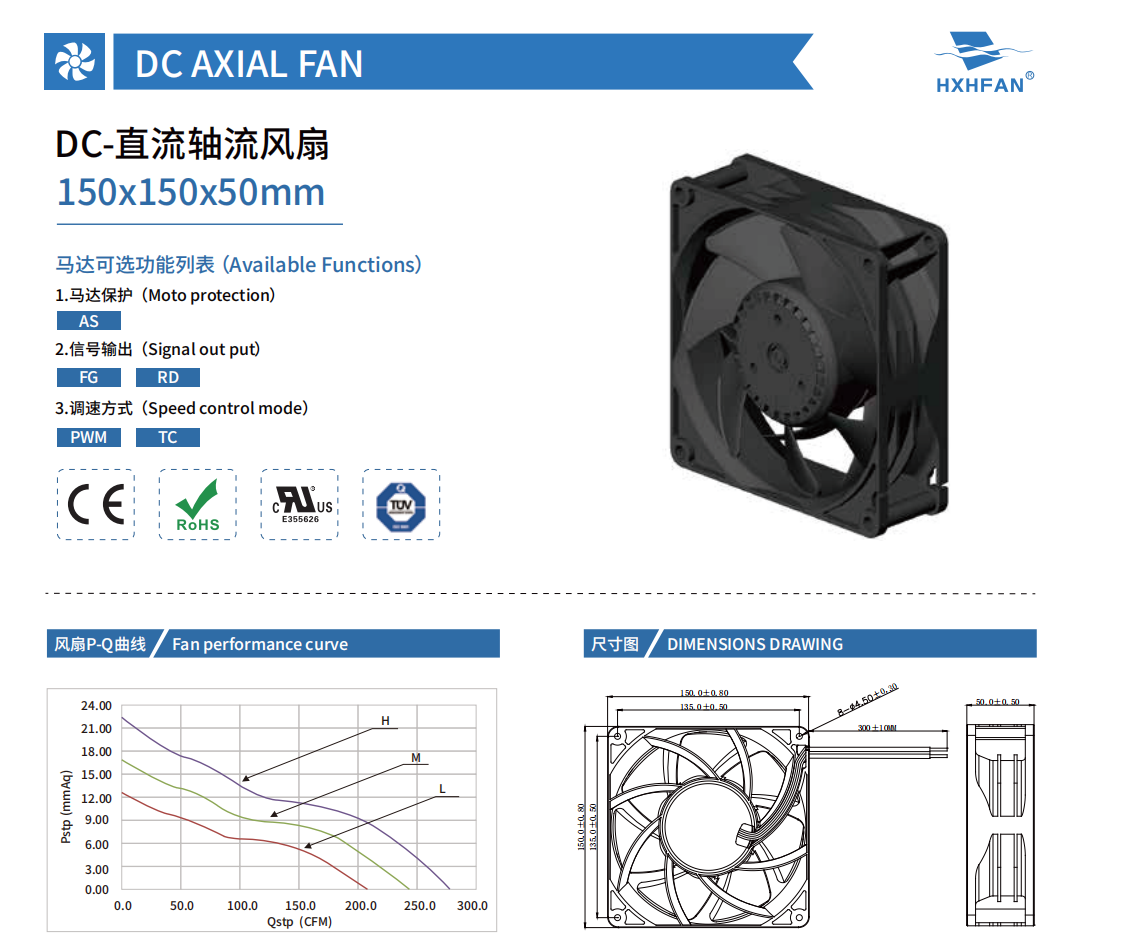

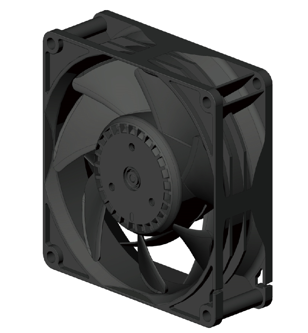

Product introduction:
| Size: | 150x150x50mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 12V 24V 48V |
| Bearing structure: | two ball bearing |
| Product life: | 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 150*150*50mm | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB15012HU | -A | Ball | 12 | 5.0 | 1.82 | 21.84 | 4000 | 7.87 | 278.20 | 22.50 | 0.89 | 57.0 |
| HDB15012MU | -A | 5.0 | 1.22 | 14.64 | 3500 | 6.89 | 243.50 | 17.20 | 0.68 | 54.0 | ||
| HDB15012LU | -A | 5.0 | 0.77 | 9.24 | 3000 | 5.91 | 208.70 | 9.20 | 0.36 | 50.7 | ||
| HDB15024HU | -A | Ball | 24 | 12.0 | 0.91 | 21.84 | 4000 | 7.87 | 278.20 | 22.50 | 0.89 | 57.0 |
| HDB15024MU | -A | 12.0 | 0.61 | 14.64 | 3500 | 6.89 | 243.50 | 17.20 | 0.68 | 54.0 | ||
| HDB15024LU | -A | 12.0 | 0.38 | 9.12 | 3000 | 5.91 | 208.70 | 9.20 | 0.36 | 50.7 | ||
| HDB15048HU | -A | Ball | 48 | 24.0 | 0.45 | 21.60 | 4000 | 7.87 | 278.20 | 22.50 | 0.89 | 57.0 |
| HDB15048MU | -A | 24.0 | 0.30 | 14.40 | 3500 | 6.89 | 243.50 | 17.20 | 0.68 | 54.0 | ||
| HDB15048LU | -A | 24.0 | 0.19 | 9.12 | 3000 | 5.91 | 208.70 | 9.20 | 0.36 | 50.7 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
