Product introduction:

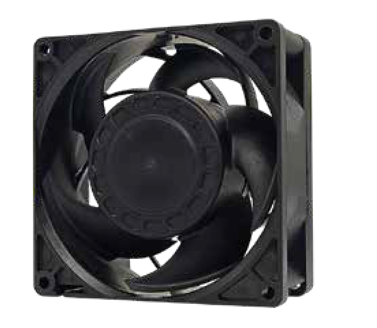

| Size: | 92x92x38mm-2 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 12V 24V 48V |
| Bearing structure: | two ball bearing |
| Product life: | 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

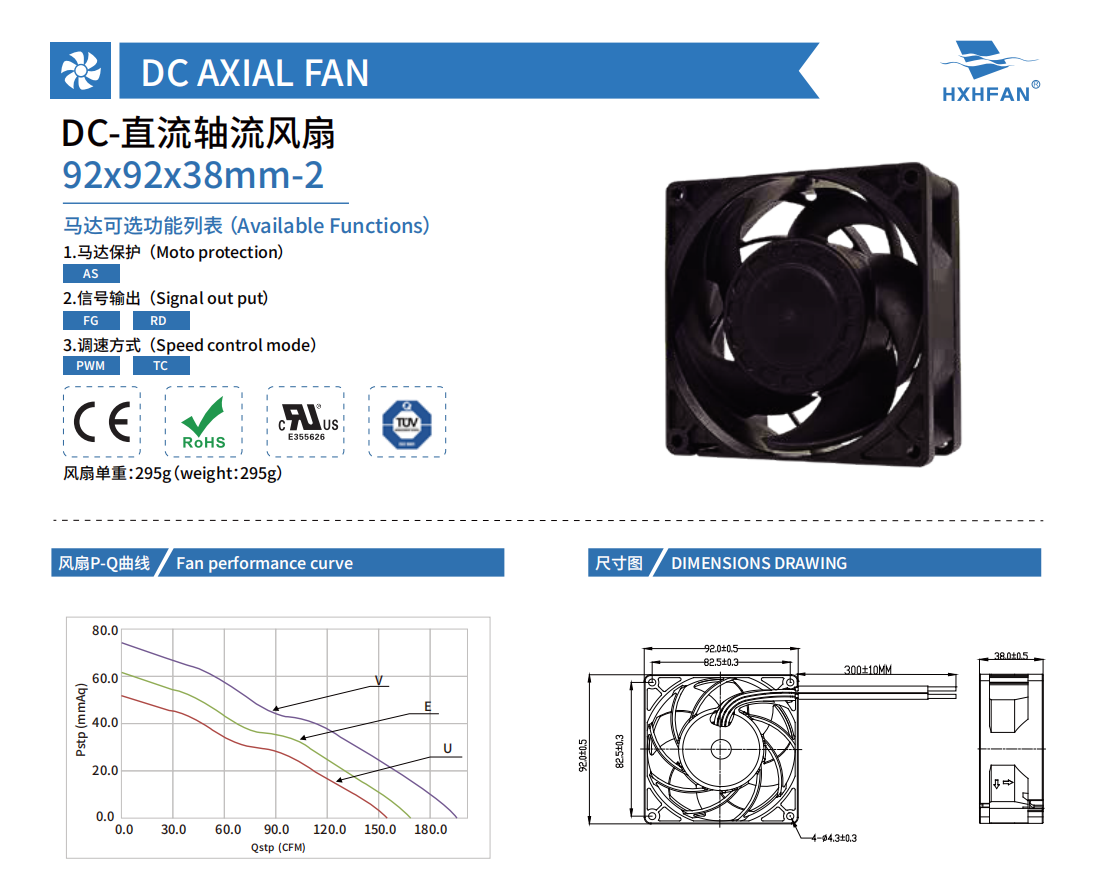

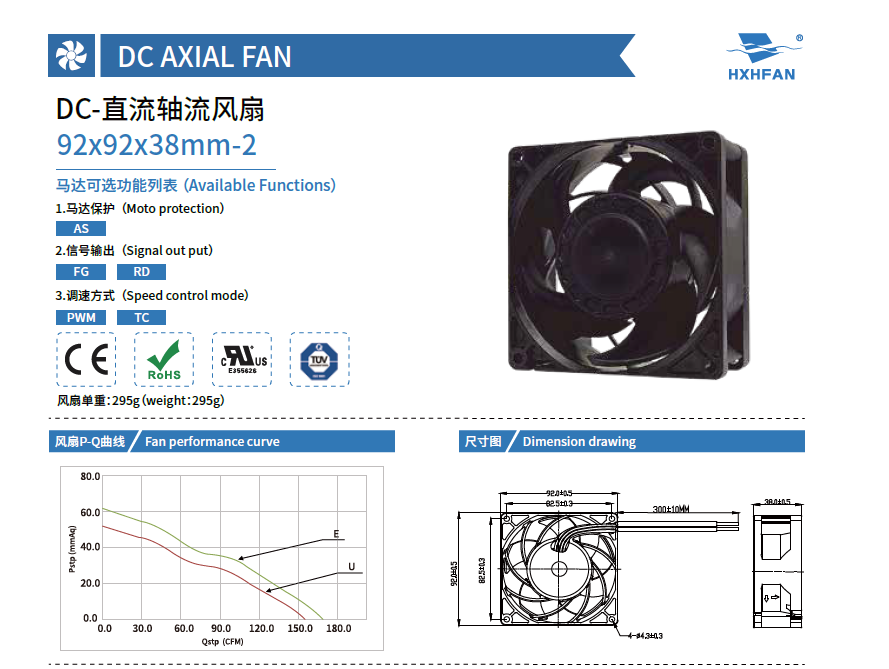

| 92*92*38MM-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part No. | Function | System | VDC | VDC | A | W | RPM | m3/min | CFM | mmH2O | INH2O | dBA |
| HDB0912VF-2 | -A | Ball | 12 | 6.0 | 4.96 | 59.52 | 13000 | 5.20 | 185.70 | 73.76 | 2.90 | 71.8 |
| HDB0912EF-2 | -A | 6.0 | 4.00 | 48.00 | 12000 | 4.76 | 170.00 | 61.85 | 2.44 | 70.0 | ||
| HDB0912UF-2 | -A | 6.0 | 3.20 | 38.40 | 11000 | 4.37 | 155.90 | 51.97 | 2.05 | 68.0 | ||
| HDB0924VF-2 | -A | Ball | 24 | 12.0 | 2.48 | 59.52 | 13000 | 5.20 | 185.70 | 73.76 | 2.90 | 71.8 |
| HDB0924EF-2 | -A | 12.0 | 2.00 | 48.00 | 12000 | 4.76 | 170.00 | 61.85 | 2.44 | 70.0 | ||
| HDB0924UF-2 | -A | 12.0 | 1.60 | 38.40 | 11000 | 4.37 | 155.90 | 51.97 | 2.05 | 68.0 | ||
| HDB0948VF-2 | -A | Ball | 48 | 24.0 | 1.24 | 59.52 | 13000 | 5.20 | 185.70 | 73.76 | 2.90 | 71.8 |
| HDB0948EF-2 | -A | 24.0 | 1.00 | 48.00 | 12000 | 4.76 | 170.00 | 61.85 | 2.44 | 70.0 | ||
| HDB0948UF-2 | -A | 24.0 | 0.80 | 38.40 | 11000 | 4.37 | 155.90 | 51.97 | 2.05 | 68.0 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
