| Size: | 40x40x28mm-4 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | two ball bearing |
| Product life: | 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

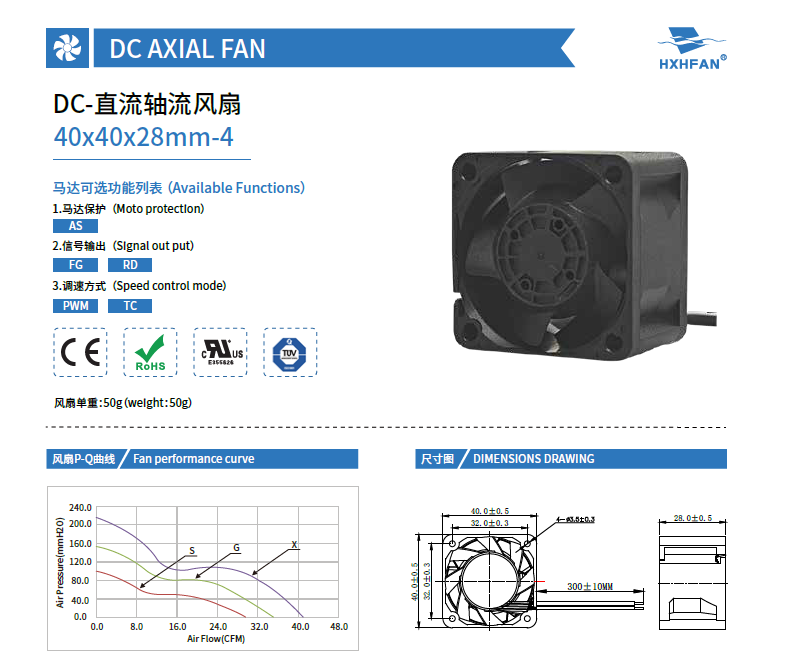

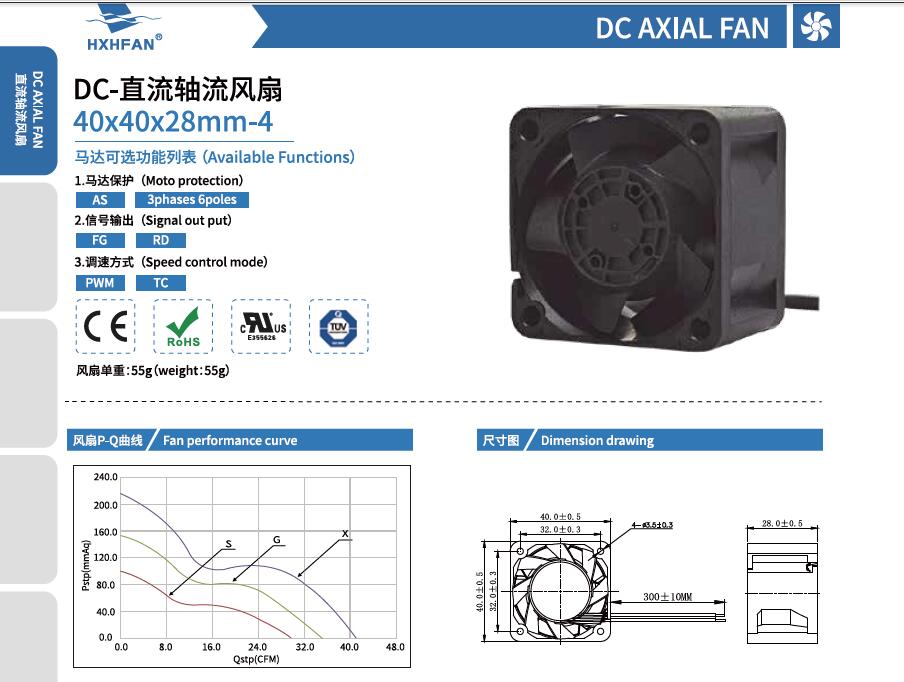

| 40*40*28mm-4 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB0412XB-4 | -A | Ball | 12 | 6.0 | 3.50 | 42.00 | 35000 | 1.16 | 41.12 | 215.69 | 8.49 | 74.1 |
| HDB0412GB-4 | -A | 6.0 | 1.95 | 23.40 | 30000 | 0.99 | 35.02 | 149.57 | 5.89 | 69.2 | ||
| HDB0412SB-4 | -A | 6.0 | 1.05 | 12.60 | 23000 | 0.77 | 27.38 | 84.27 | 3.32 | 63.4 | ||
| HDB0424XB-4 | -A | Ball | 24 | 18.0 | 1.75 | 42.00 | 35000 | 1.16 | 41.12 | 215.69 | 8.49 | 74.1 |
| HDB0424GB-4 | -A | 18.0 | 0.98 | 23.40 | 30000 | 0.99 | 35.02 | 149.57 | 5.89 | 69.2 | ||
| HDB0424SB-4 | -A | 18.0 | 0.53 | 12.60 | 23000 | 0.77 | 27.38 | 84.27 | 3.32 | 63.4 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
