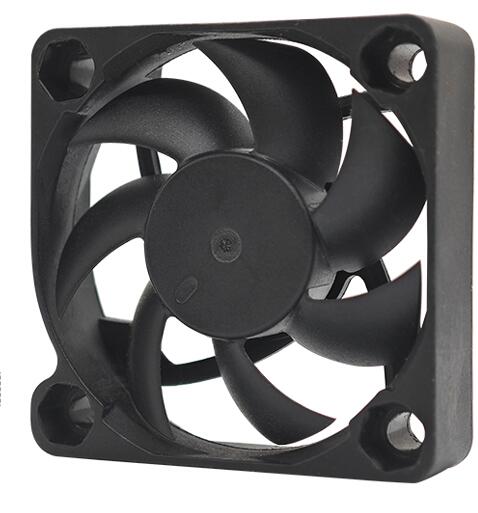

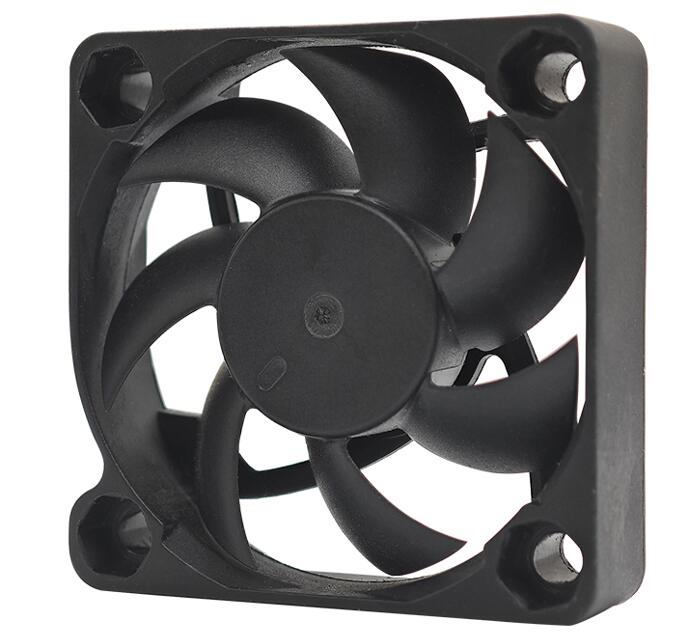

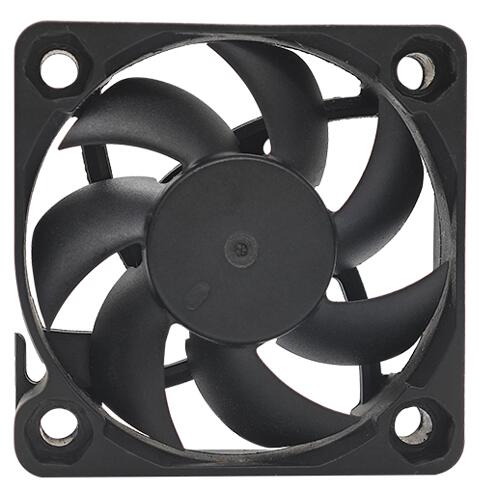

40x40x10mm-3

Product introduction:

Size:	40x40x10mm-3
Material:	Environmental protection and fire protection PBT UL 94V-0
Operating voltage:	5V 12V 24V
Bearing structure:	Oil Bearing Hydraulic Bearing Double Ball Bearing
Product life:	30,000 hours 40,000 hours 70,000 hours
Output function:	FG function RD function PWM function
Operating temperature:	-10℃ ~70℃
Storage temperature:	-40℃ ~75℃

Click for Inqueries

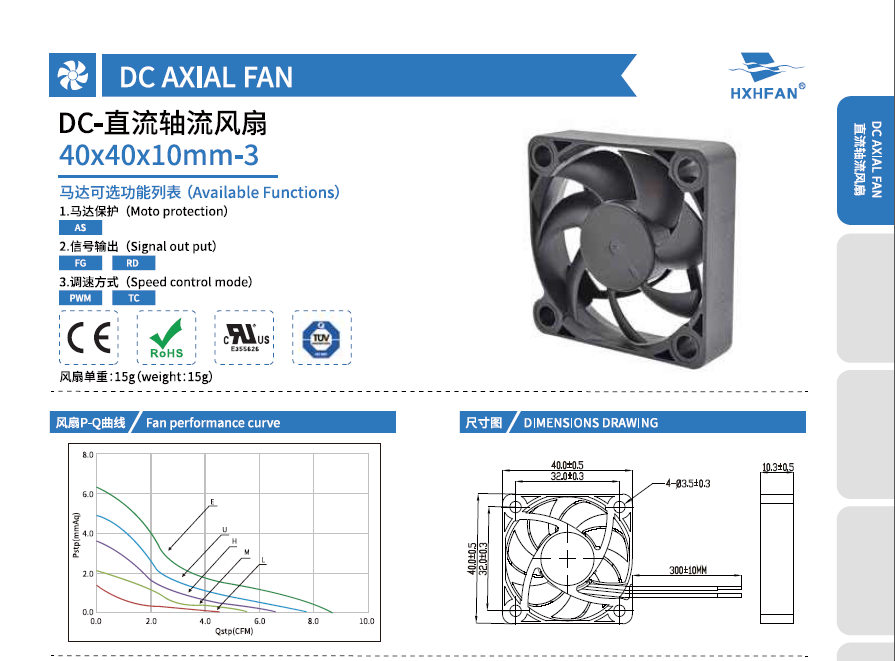

Click to Download pdf

404010mm-3
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M³/min	CFM	mmH₂O	INH₂O	dBA
HDH0405UG-3		Hydraulic	5	4.0	0.22	1.10	7000	0.22	7.76	4.88	0.19	28.8
HDH0405HG-3				4.0	0.17	0.85	6000	0.19	6.64	3.57	0.14	23.4
HDH0405MG-3				4.0	0.11	0.55	5000	0.16	5.56	2.06	0.08	24.4
HDH0405LG-3				4.5	0.08	0.40	4000	0.13	4.45	1.32	0.05	19.5
HDB0405UG-3		Ball		4.0	0.22	1.10	7000	0.22	7.76	4.88	0.19	28.8
HDB0405HG-3				4.0	0.17	0.85	6000	0.19	6.64	3.57	0.14	23.4
HDB0405MG-3				4.0	0.11	0.55	5000	0.16	5.56	2.06	0.08	24.4
HDB0405LG-3				4.5	0.08	0.40	4000	0.13	4.45	1.32	0.05	19.5
HDH0412EG-3		Hydraulic	12	7.0	0.15	1.80	8000	0.25	8.72	6.29	0.25	32.9
HDH0412UG-3				7.0	0.12	1.44	7000	0.22	7.76	4.88	0.19	28.8

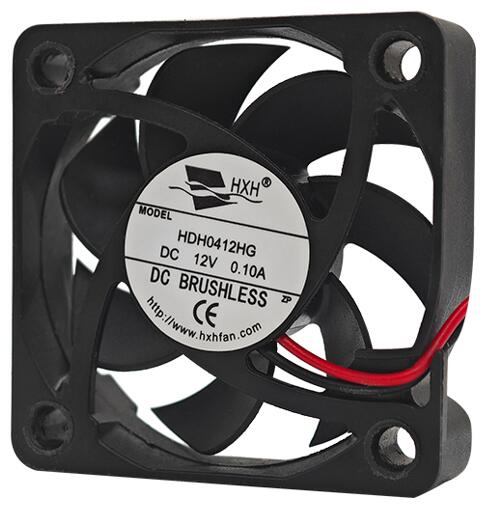

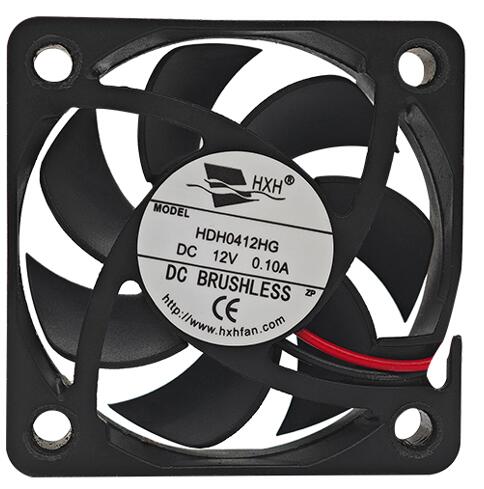

HDH0412HG-3				9.0	0.10	1.20	6000	0.19	6.64	3.57	0.14	23.4
HDH0412MG-3				9.0	0.08	0.96	5000	0.16	5.56	2.06	0.08	24.4
HDH0412LG-3				9.0	0.07	0.84	4000	0.13	4.45	1.32	0.05	19.5
HDB0412EG-3		Ball		7.0	0.15	1.80	8000	0.25	8.72	6.29	0.25	32.9
HDB0412UG-3				7.0	0.12	1.44	7000	0.22	7.76	4.88	0.19	28.8
HDB0412HG-3				9.0	0.10	1.20	6000	0.19	6.64	3.57	0.14	23.4
HDB0412MG-3				9.0	0.08	0.96	5000	0.16	5.56	2.06	0.08	24.4
HDB0412LG-3				9.0	0.07	0.84	4000	0.13	4.45	1.32	0.05	19.5
HDH0424EG-3		Hydraulic	24	12.0	0.07	1.68	8000	0.25	8.72	6.29	0.25	32.9
HDH0424UG-3				12.0	0.06	1.44	7000	0.22	7.76	4.88	0.19	28.8
HDH0424HG-3				12.0	0.05	1.20	6000	0.19	6.64	3.57	0.14	23.4
HDH0424MG-3				12.0	0.04	0.96	5000	0.16	5.56	2.06	0.08	24.4
HDH0424LG-3				12.0	0.03	0.72	4000	0.13	4.45	1.32	0.05	19.5
HDB0424EG-3		Ball		12.0	0.07	1.68	8000	0.25	8.72	6.29	0.25	32.9
HDB0424UG-3				12.0	0.06	1.44	7000	0.22	7.76	4.88	0.19	28.8
HDB0424HG-3				12.0	0.05	1.20	6000	0.19	6.64	3.57	0.14	23.4
HDB0424MG-3				12.0	0.04	0.96	5000	0.16	5.56	2.06	0.08	24.4
HDB0424LG-3				12.0	0.03	0.72	4000	0.13	4.45	1.32	0.05	19.5
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing
