| Size: | 200x200x60mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 110V 220V |
| Bearing structure: | Oil bearing, ball bearing |
| Product life: | 30,000 hours, 70,000 hours |
| Output function: | FG function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

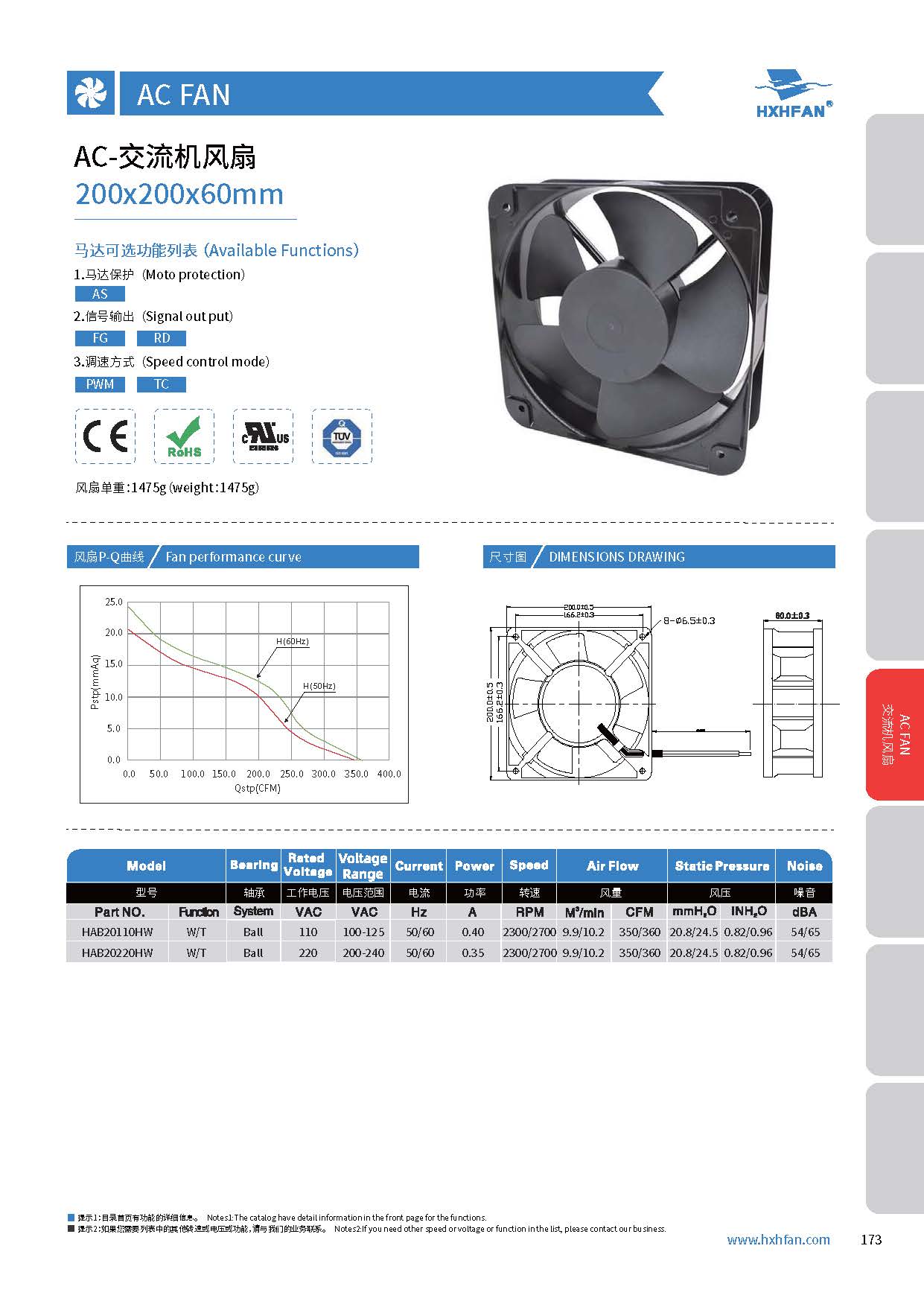

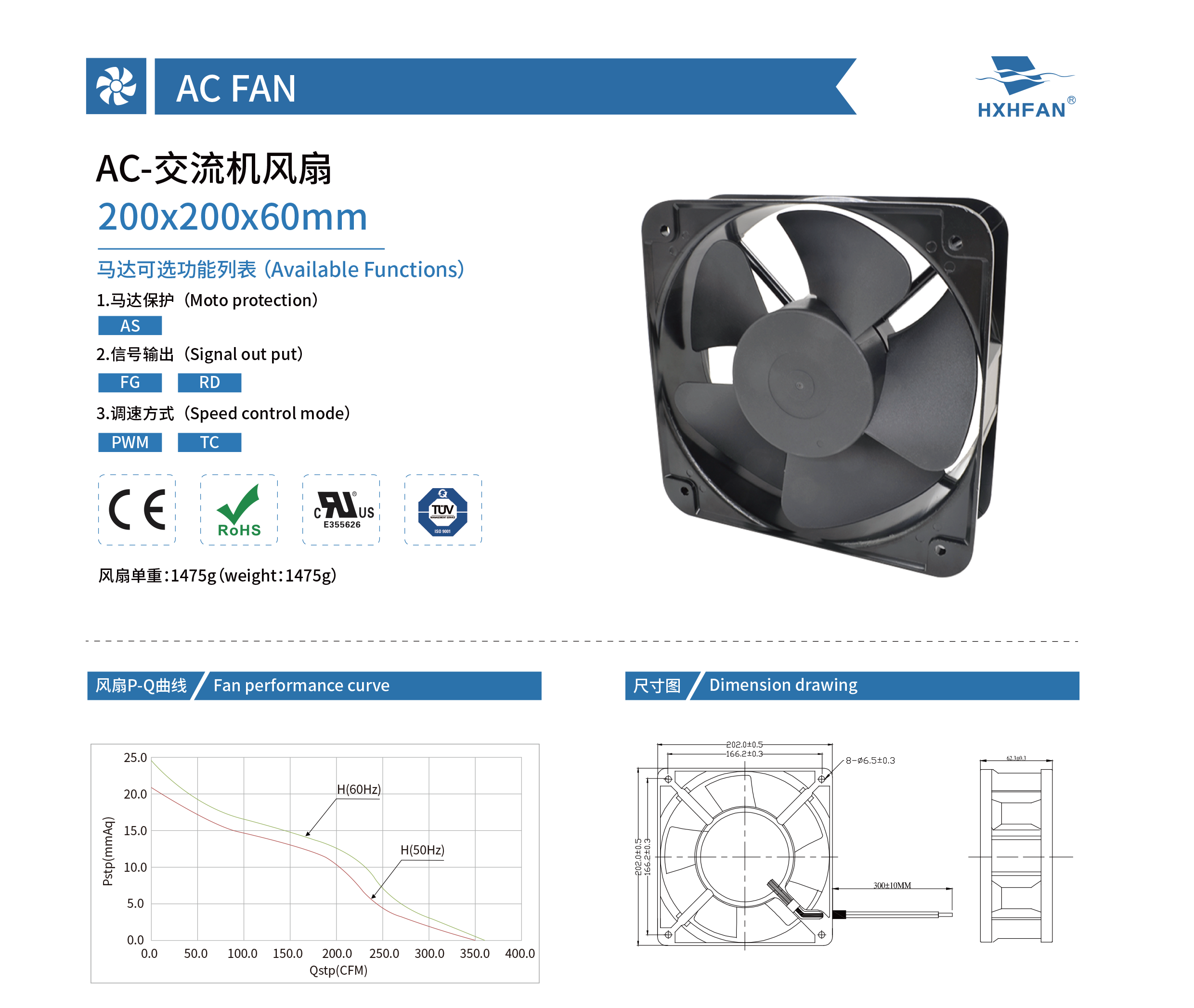

| 200*200*60MM | ||||||||||||
| Model | Bearing | Rated Voltage | Voltage Range | Freq. | Current | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Type | System | VAC | VAC | Hz | A | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HAB20110HW | W/T | Ball | 110 | 100-125 | 50/60 | 0.40 | 2300/2700 | 9.9/10.2 | 350/360 | 20.8/24.5 | 0.82/0.96 | 54/65 |

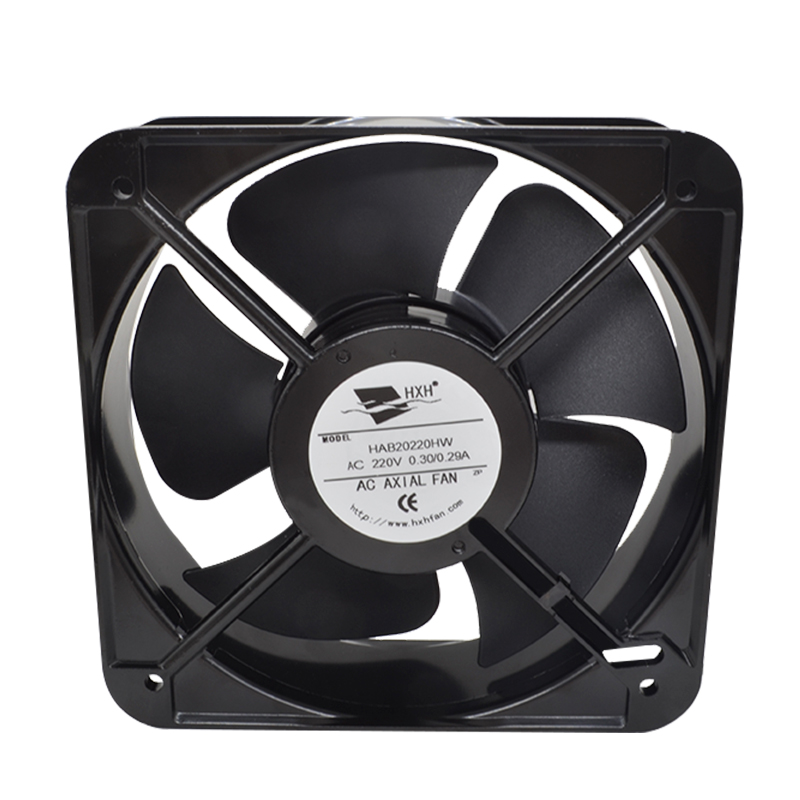

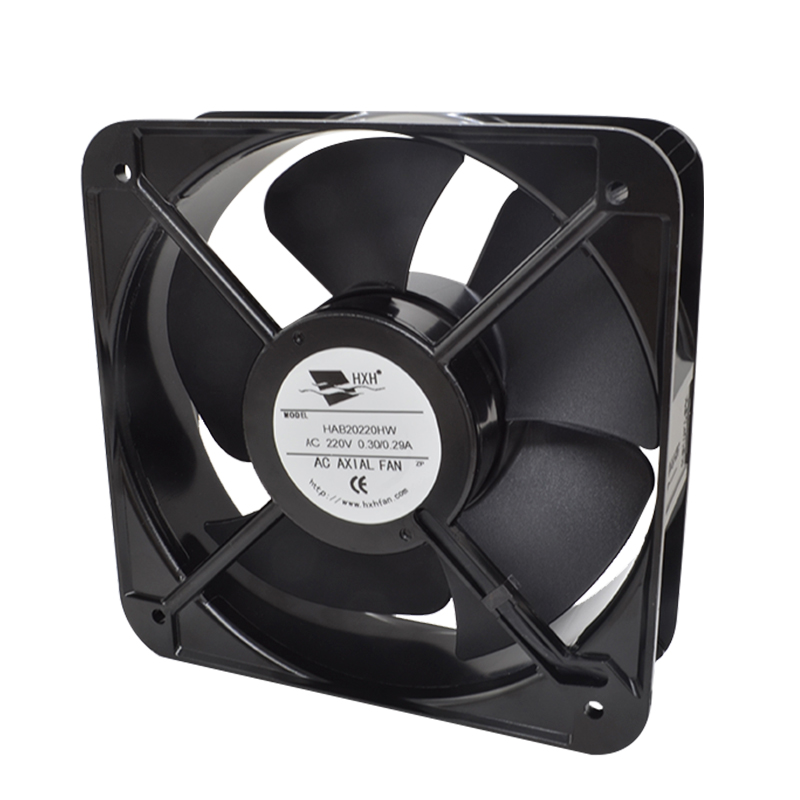

| HAB20220HW | W/T | Ball | 220 | 200-240 | 50/60 | 0.35 | 2300/2700 | 9.9/10.2 | 350/360 | 20.8/24.5 | 0.82/0.96 | 54/65 |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
