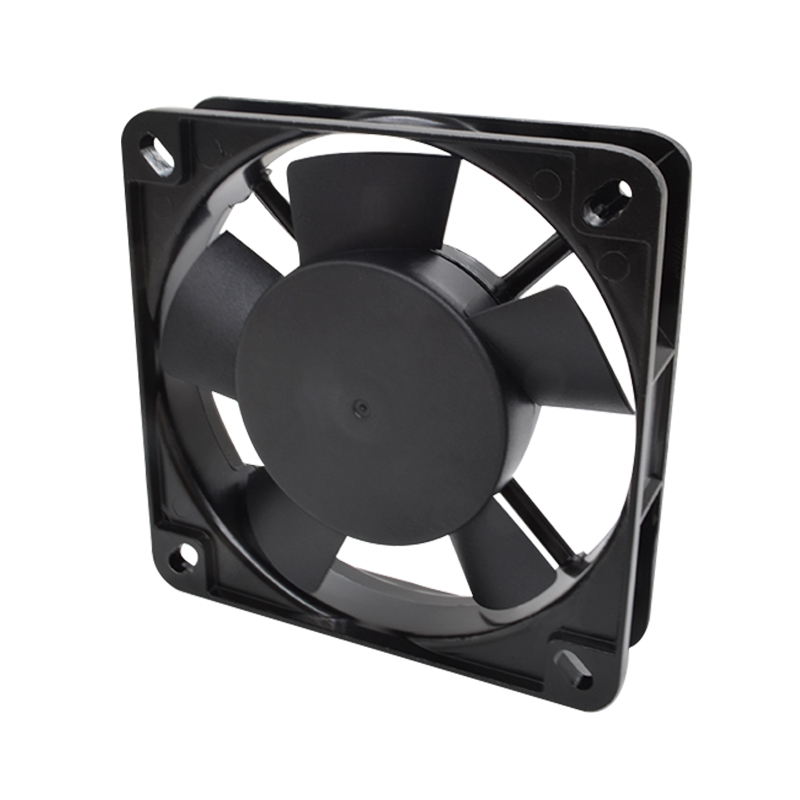

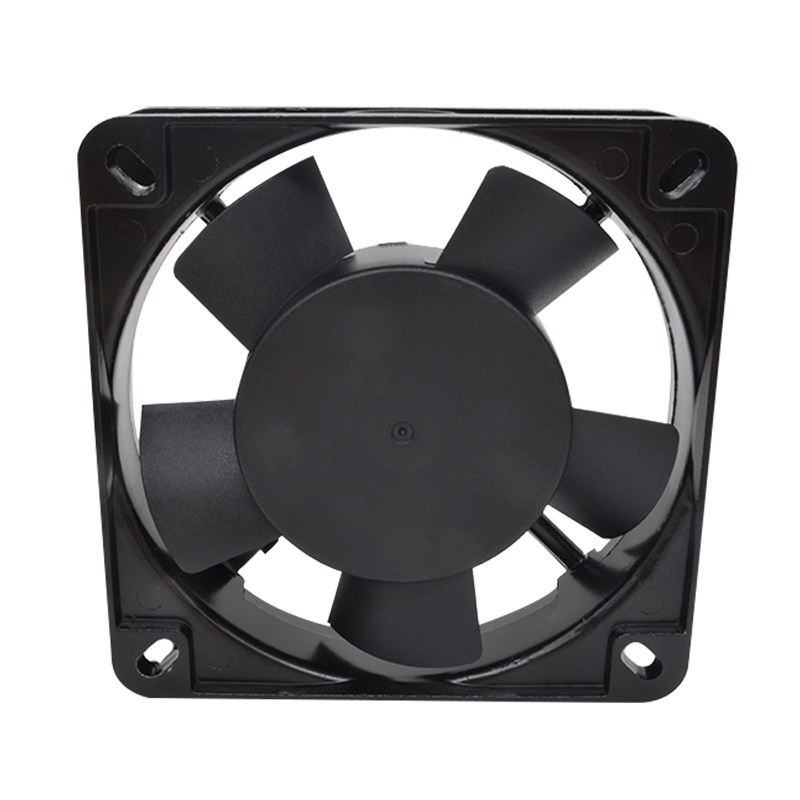

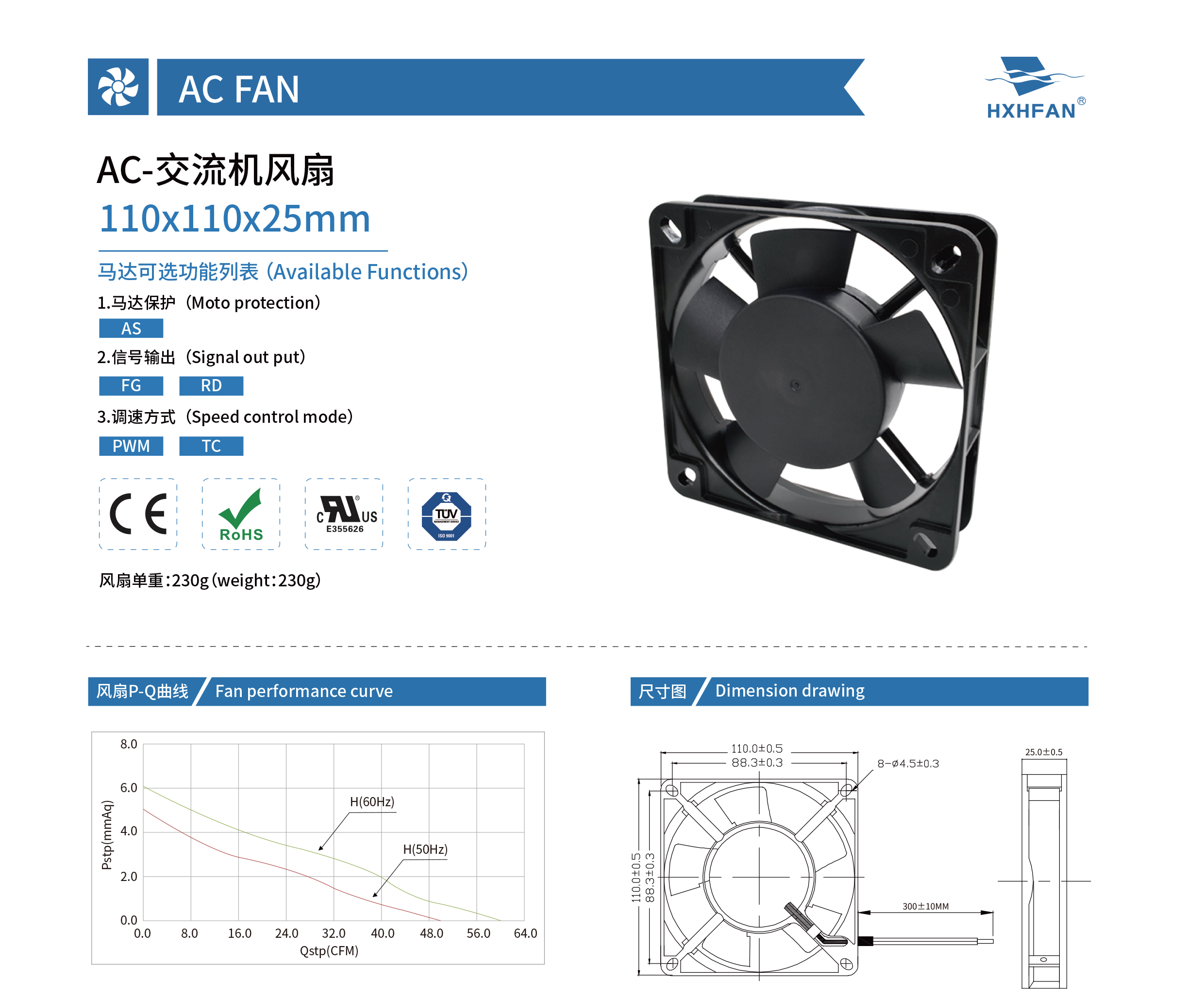

| Size: | 110x110x25mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 110V 220V |
| Bearing structure: | Oil bearing, ball bearing |
| Product life: | 30,000 hours, 70,000 hours |
| Output function: | FG function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 110×110×25mm | ||||||||||||
| Model | Bearing | Rated Voltage | Voltage Range | Freq. | Current | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Type | System | VAC | VAC | Hz | A | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HAB11110HA | W/T | Ball | 110 | 100-125 | 50/60 | 0.14/0.20 | 2200/2900 | 1.42/1.70 | 50/60 | 5.04/6.08 | 0.20/0.24 | 35/41 |

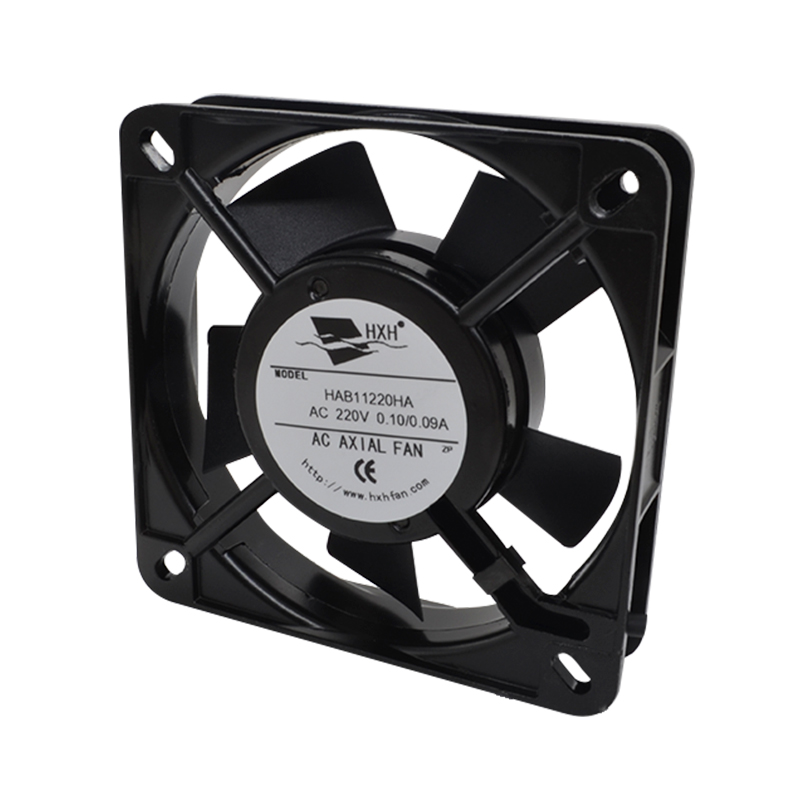

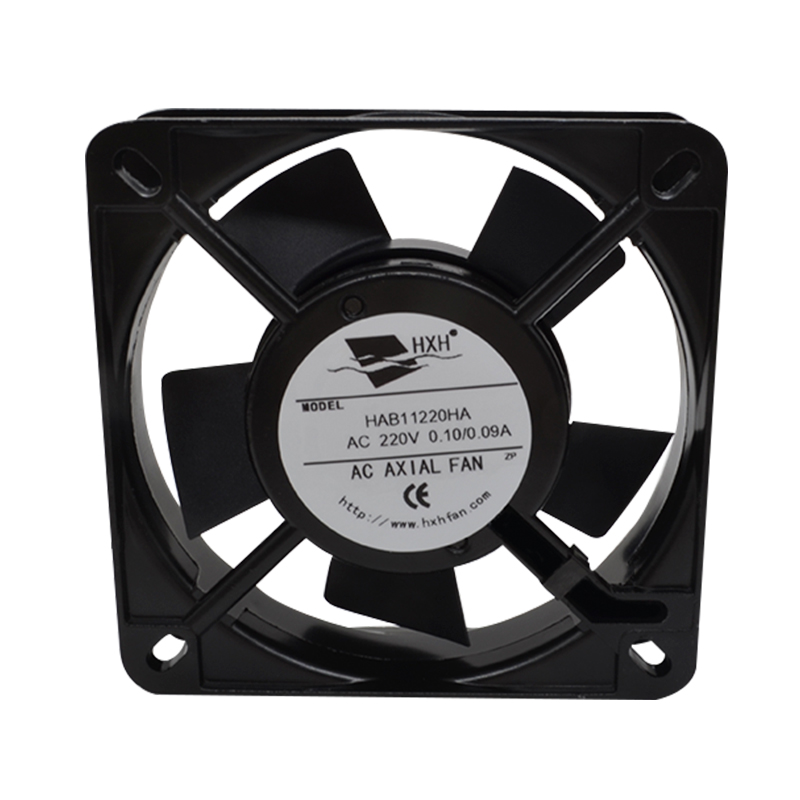

| HAB11220HA | W/T | Ball | 220 | 100-125 | 50/60 | 0.07/0.10 | 2200/2900 | 1.42/1.70 | 50/60 | 5.04/6.08 | 0.20/0.24 | 35/41 |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
