Product introduction:
| Size: | 80x80x15mm-4 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Oil Bearing Ball Bearing |
| Product life: | 30,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 80×80×15MM-4 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HYB0812ED-4 | IP68 | Ball | 12 | 6.0 | 0.39 | 4.68 | 4300 | 1.32 | 46.47 | 5.80 | 0.23 | 36.1 |

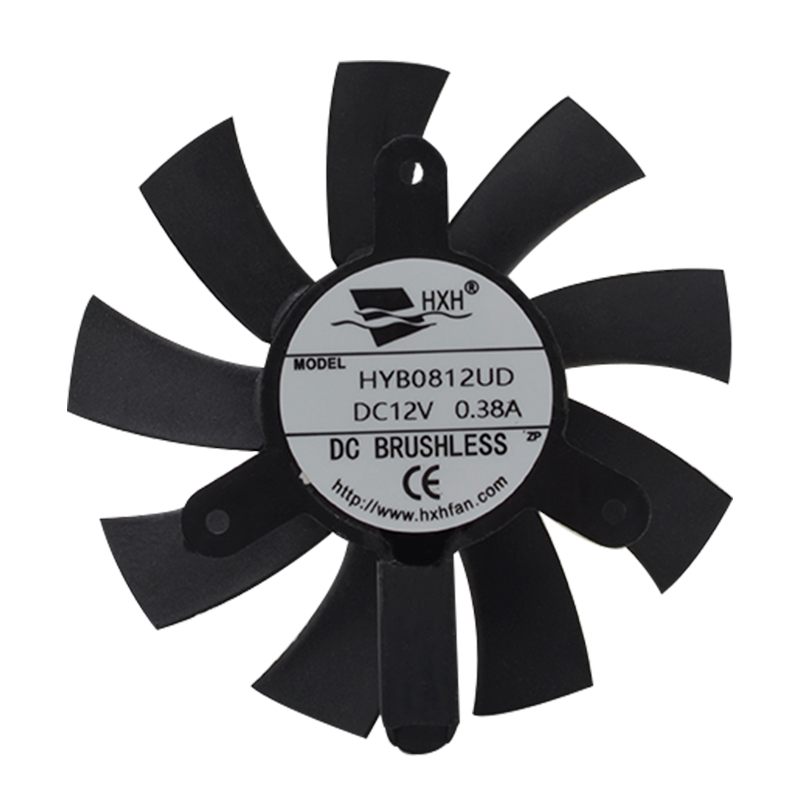

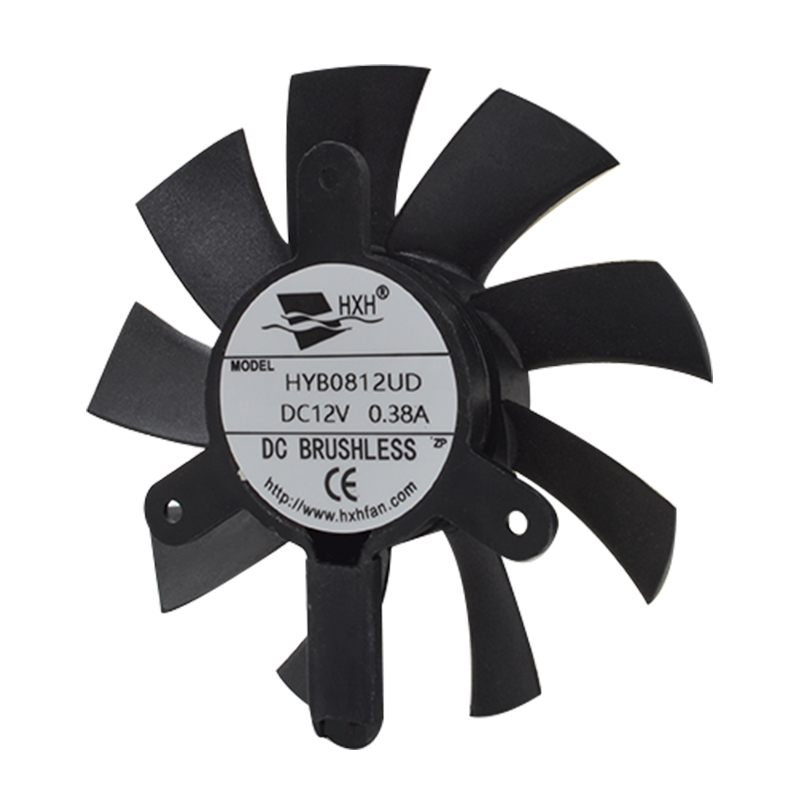

| HYB0812UD-4 | IP68 | 6.0 | 0.35 | 4.20 | 4000 | 1.23 | 43.32 | 5.02 | 0.20 | 34.5 | ||
| HYB0812HD-4 | IP68 | 6.0 | 0.26 | 3.12 | 3800 | 1.16 | 41.15 | 4.53 | 0.18 | 33.4 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
