Product introduction:
| Size: | 80x80x25mm-5 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Ball bearing |
| Product life: | 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 80×80×25mm-5 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HYB0812VA-5 | IP68 | Ball | 12 | 6.0 | 0.85 | 10.20 | 6500 | 2.07 | 72.99 | 15.39 | 0.61 | 50.2 |
| HYB0812EA-5 | IP68 | 6.0 | 0.70 | 8.40 | 6000 | 1.89 | 66.91 | 13.19 | 0.52 | 46.5 | ||
| HYB0812UA-5 | IP68 | 6.0 | 0.55 | 6.60 | 5000 | 1.55 | 54.61 | 9.12 | 0.36 | 41.0 | ||

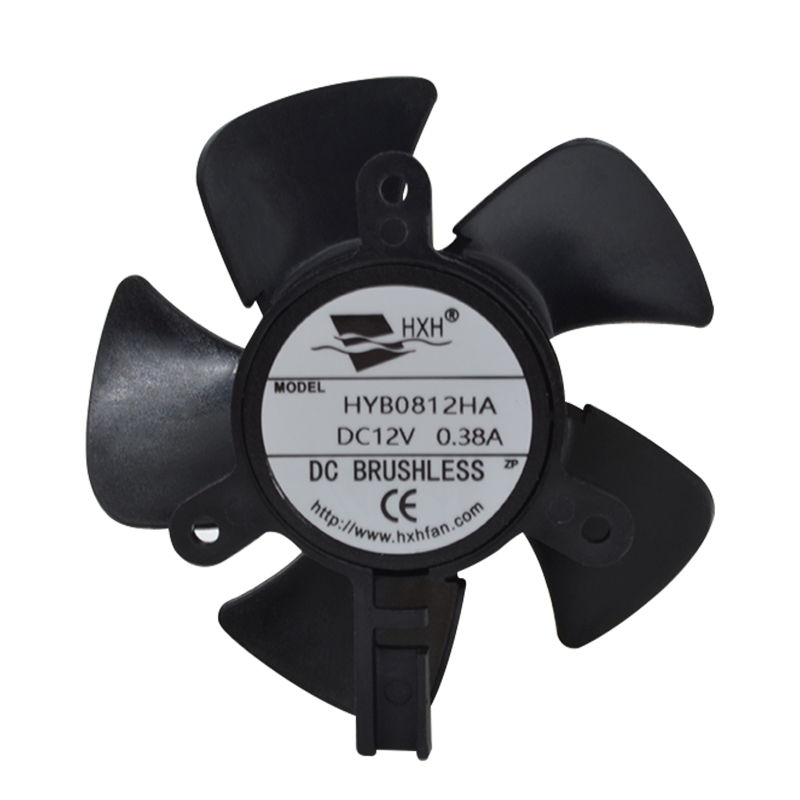

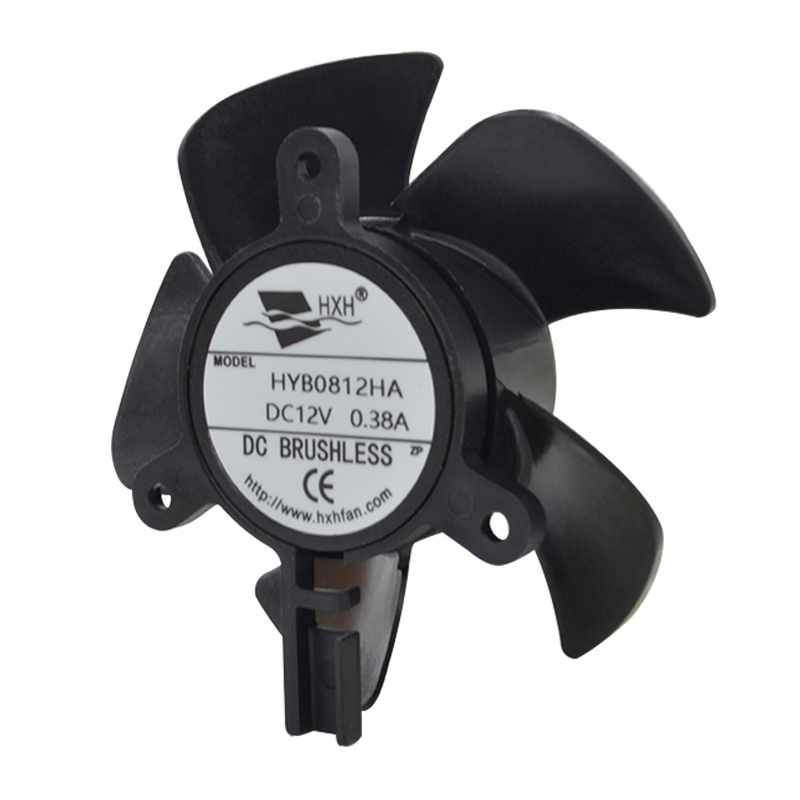

| HYB0812HA-5 | IP68 | 6.0 | 0.38 | 4.56 | 4000 | 1.20 | 42.58 | 5.86 | 0.23 | 35.8 | ||
| HYB0812MA-5 | IP68 | 9.0 | 0.28 | 3.36 | 3000 | 0.91 | 32.20 | 3.50 | 0.14 | 28.1 | ||
| HYB0812LA-5 | IP68 | 9.0 | 0.16 | 1.92 | 2000 | 0.64 | 22.64 | 1.82 | 0.07 | 18.4 | ||
| HYB0824VA-5 | IP68 | Ball | 24 | 12.0 | 0.55 | 13.20 | 6500 | 2.07 | 72.99 | 15.39 | 0.61 | 50.2 |
| HYB0824EA-5 | IP68 | 12.0 | 0.40 | 9.60 | 6000 | 1.89 | 66.91 | 13.19 | 0.52 | 46.5 | ||
| HYB0824UA-5 | IP68 | 12.0 | 0.30 | 7.20 | 5000 | 1.55 | 54.61 | 9.12 | 0.36 | 41.0 | ||
| HYB0824HA-5 | IP68 | 12.0 | 0.14 | 3.36 | 4000 | 1.20 | 42.58 | 5.86 | 0.23 | 35.8 | ||
| HYB0824MA-5 | IP68 | 18.0 | 0.09 | 2.16 | 3000 | 0.91 | 32.20 | 3.50 | 0.14 | 28.1 | ||
| HYB0824LA-5 | IP68 | 18.0 | 0.06 | 1.44 | 2000 | 0.64 | 22.64 | 1.82 | 0.07 | 18.4 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
