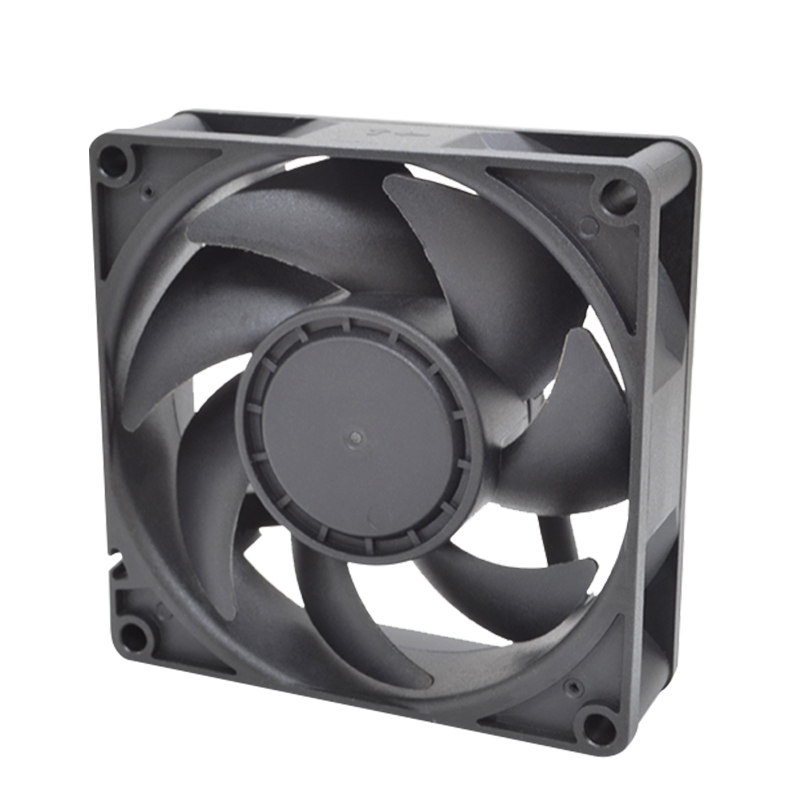

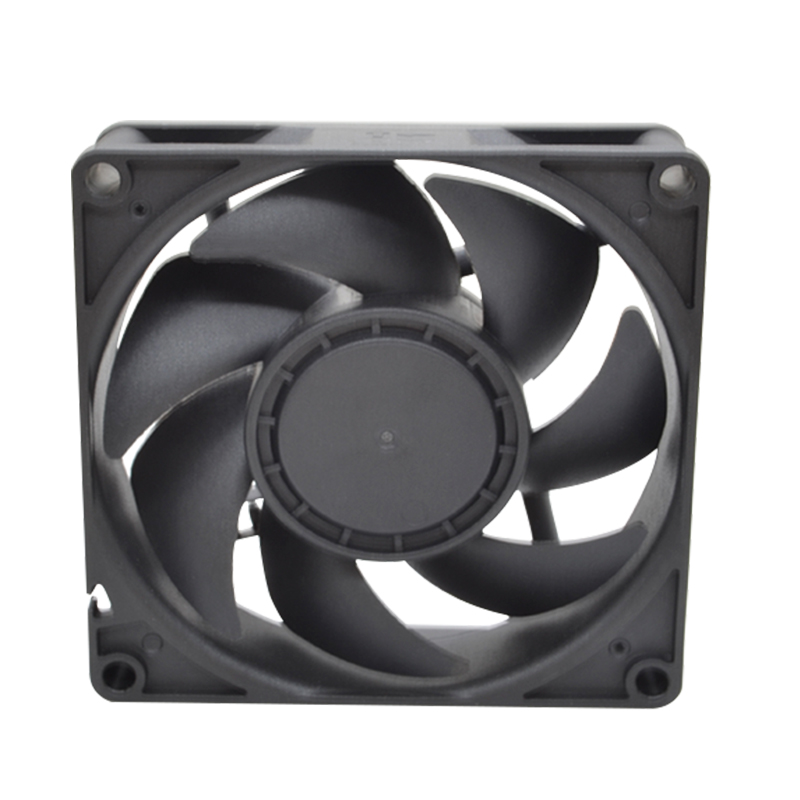

Product introduction:
| Size: | 80x80x25mm-4 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Ball bearing |
| Product life: | 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 80×80×25mm-4 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB0812VA-4 | IP68 | Ball | 12 | 6.0 | 0.55 | 6.60 | 6000 | 1.63 | 57.61 | 10.43 | 0.41 | 43.1 |
| HDB0812EA-4 | IP68 | 6.0 | 0.38 | 4.45 | 5000 | 1.34 | 47.24 | 7.44 | 0.29 | 39.7 | ||
| HDB0812UA-4 | IP68 | 6.0 | 0.28 | 3.36 | 4000 | 1.08 | 38.14 | 5.01 | 0.20 | 33.9 | ||
| HDB0812HA-4 | IP68 | 6.0 | 0.23 | 2.76 | 3000 | 0.81 | 28.64 | 3.03 | 0.12 | 23.7 | ||
| HDB0812MA-4 | IP68 | 9.0 | 0.16 | 1.92 | 2500 | 0.67 | 23.52 | 2.12 | 0.08 | 17.5 | ||

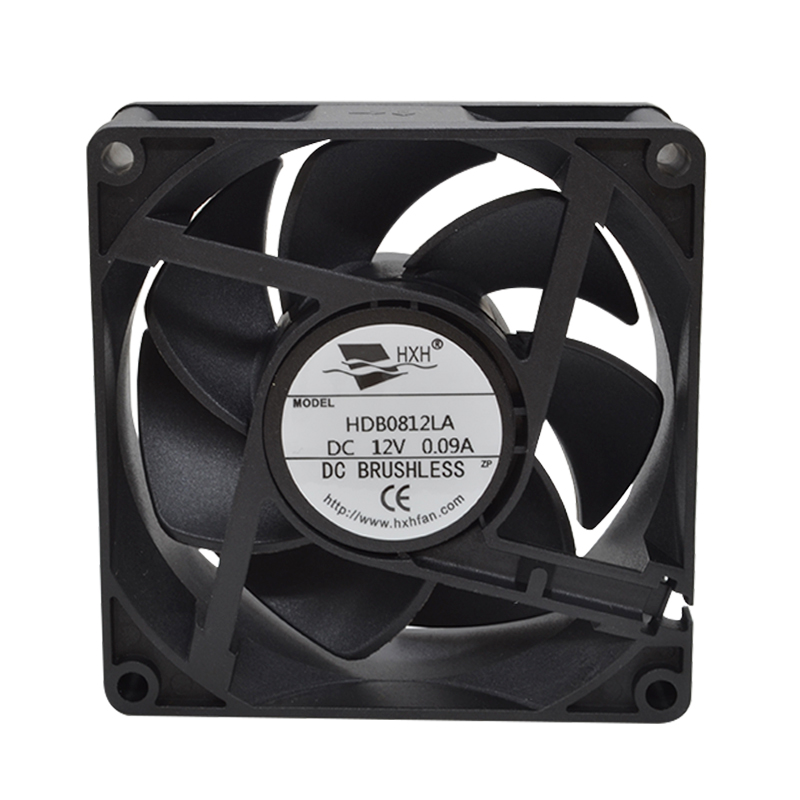

| HDB0812LA-4 | IP68 | 9.0 | 0.09 | 1.08 | 2000 | 0.53 | 18.65 | 1.31 | 0.05 | 13.5 | ||
| HDB0824VA-4 | IP68 | Ball | 24 | 12.0 | 0.35 | 8.40 | 6000 | 1.63 | 57.61 | 10.4 | 0.41 | 43.1 |
| HDB0824EA-4 | IP68 | 12.0 | 0.28 | 6.72 | 5000 | 1.34 | 47.24 | 7.44 | 0.29 | 39.7 | ||
| HDB0824UA-4 | IP68 | 12.0 | 0.18 | 4.32 | 4000 | 1.08 | 38.14 | 5.01 | 0.20 | 33.9 | ||
| HDB0824HA-4 | IP68 | 12.0 | 0.14 | 3.36 | 3000 | 0.81 | 28.64 | 3.03 | 0.12 | 23.7 | ||
| HDB0824MA-4 | IP68 | 18.0 | 0.09 | 2.16 | 2500 | 0.67 | 23.52 | 2.12 | 0.08 | 17.5 | ||
| HDB0824LA-4 | IP68 | 18.0 | 0.06 | 1.44 | 2000 | 0.53 | 18.65 | 1.31 | 0.05 | 13.5 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
