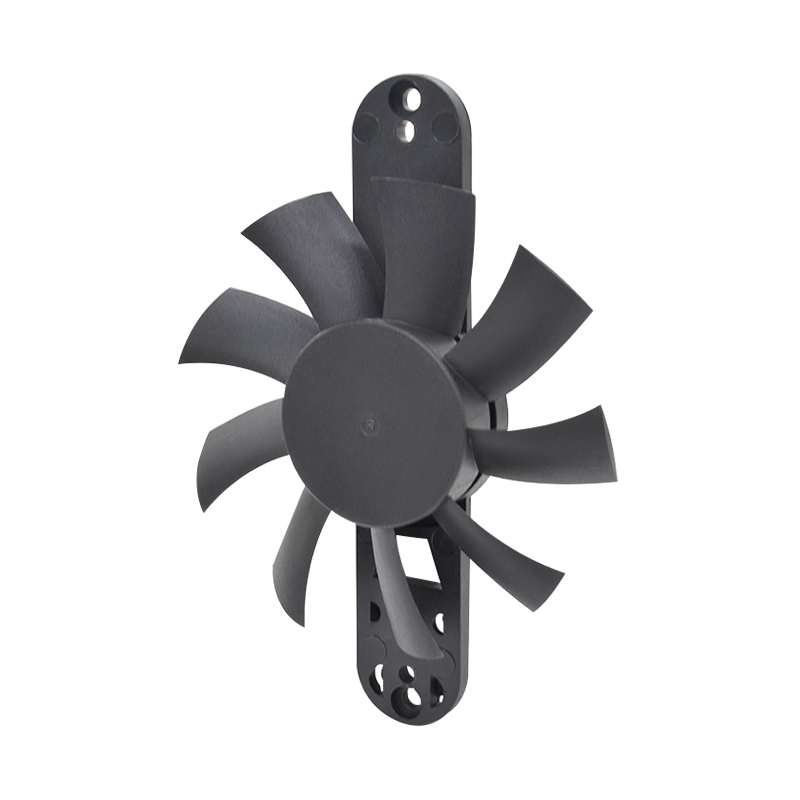

Product introduction:
| Size: | 80x80x15mm-2 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Ball bearing |
| Product life: | 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| Waterproof and dustproof fan | ||||||||||||
| 80×80×15MM-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HYB0812ED-2 | IP68 | Ball | 12 | 6.0 | 0.39 | 4.68 | 4400 | 1.28 | 45.11 | 5.90 | 0.23 | 42.4 |

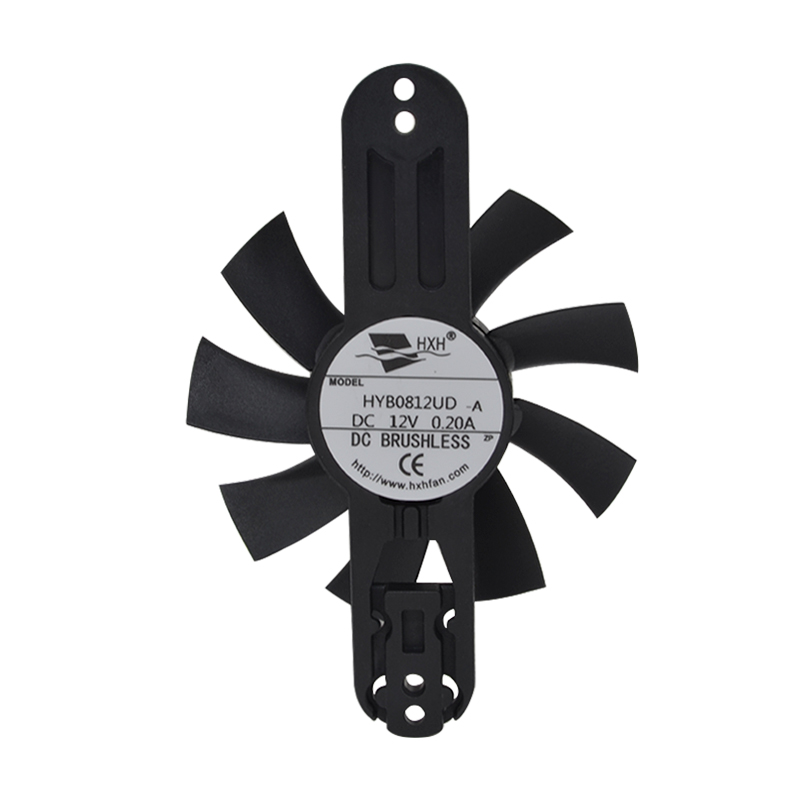

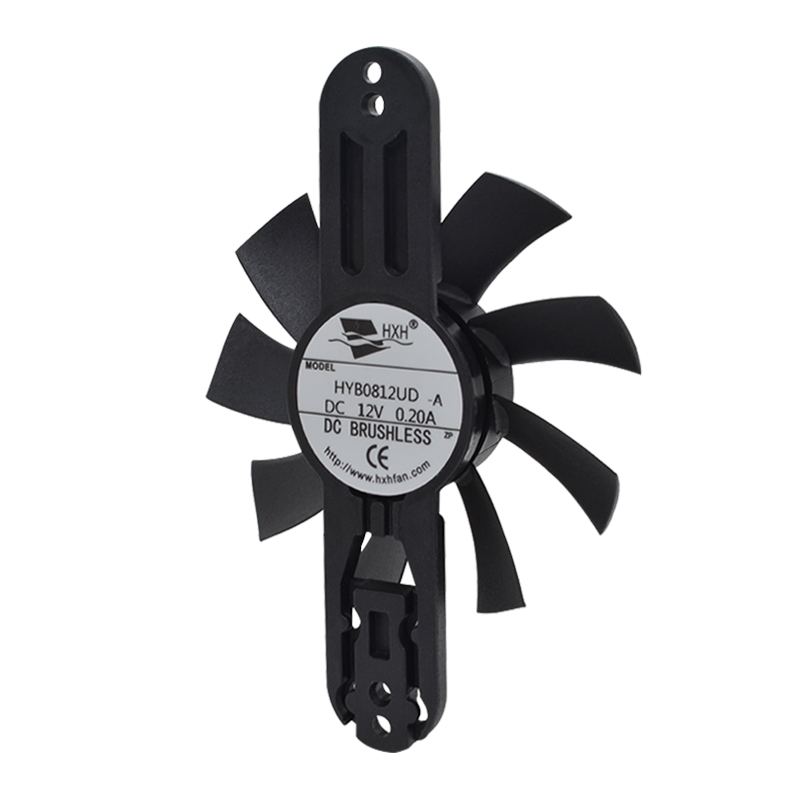

| HYB0812UD-2 | IP68 | 6.0 | 0.35 | 4.20 | 4000 | 1.16 | 41.01 | 4.88 | 0.19 | 40.3 | ||
| HYB0812HD-2 | IP68 | 6.0 | 0.26 | 3.12 | 3600 | 1.04 | 36.91 | 3.95 | 0.16 | 38.0 | ||
| HYB0812MD-2 | IP68 | 6.0 | 0.20 | 2.40 | 3200 | 0.93 | 32.81 | 3.12 | 0.12 | 35.5 | ||
| HYB0812LD-2 | IP68 | 6.0 | 0.16 | 1.92 | 2800 | 0.81 | 28.71 | 2.39 | 0.09 | 32.6 | ||
| HYB0824ED-2 | IP68 | Ball | 24 | 12.0 | 0.25 | 6.00 | 4400 | 1.28 | 45.11 | 5.90 | 0.23 | 42.4 |
| HYB0824UD-2 | IP68 | 12.0 | 0.20 | 4.80 | 4000 | 1.16 | 41.01 | 4.88 | 0.19 | 40.3 | ||
| HYB0824HD-2 | IP68 | 12.0 | 0.13 | 3.12 | 3600 | 1.04 | 36.91 | 3.95 | 0.16 | 38.0 | ||
| HYB0824MD-2 | IP68 | 12.0 | 0.10 | 2.40 | 3200 | 0.93 | 32.81 | 3.12 | 0.12 | 35.5 | ||
| HYB0824LD-2 | IP68 | 12.0 | 0.06 | 1.44 | 2800 | 0.81 | 28.71 | 2.39 | 0.09 | 32.6 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
